OMX-3GSDI-CAT5

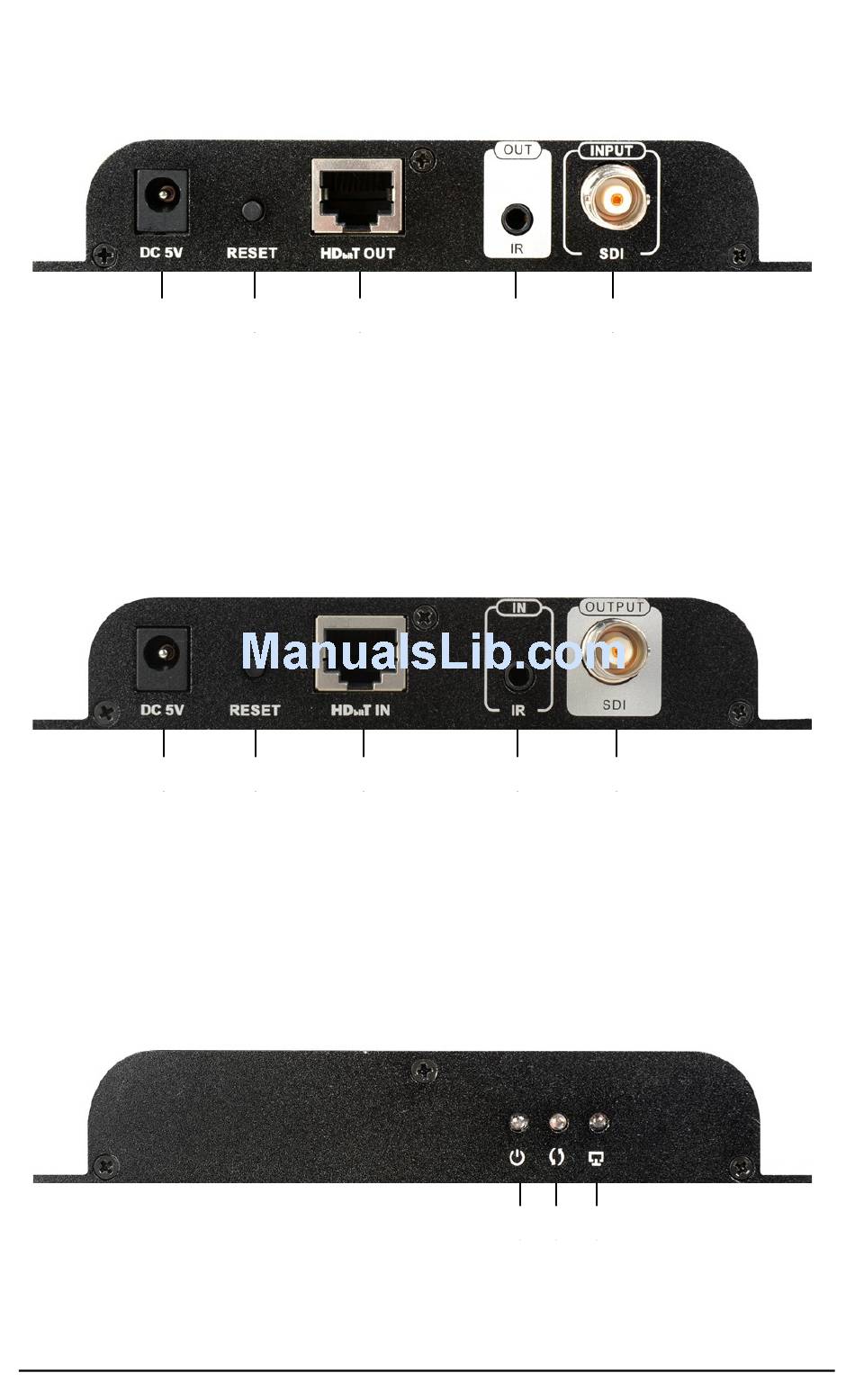

Transmitter

1
1 TX Power Input 5VDC
2
TX Reset Button
3 TX Signal Output

Receiver

6
6 RX Power Input 5VDC
7 RX Reset Button
8 RX Signal Input

Rear of Both Units

11
TX & RX Power Status Indicator
12
TX & RX Data Transmission Indicator
13
TX & RX Network Connection Indicator
Ocean Matrix OMX-3GSDI-CAT5
2 3
7 8
4
4 TX IR Blaster Extension Cable Port
5 TX SDI Signal Input
9
9 RX IR Extension Cable Port
10 RXSDI Signal Output
11 12 13
5
10
Page 4
