Silicon Laboratories Debug Adapter User Manual

Silicon laboratories inc user's guide debug adapter

O O L

T I C K

1. Handling Recommendations

To enable development, the ToolStick Base Adapter and daughter cards are distributed without any protective

plastics. To prevent damage to the devices and/or the host PC, please take into consideration the following

recommendations when using the ToolStick:

Never connect or disconnect a daughter card to or from the ToolStick Base Adapter while the Base Adapter is

connected to a PC.

Always connect and disconnect the ToolStick from the PC by holding the large plastic connector.

Avoid directly touching any of the other components.

Manipulate mechanical devices on the daughter cards, such as potentiometers, with care to prevent the base

adapter or daughter card from accidentally dislodging from their socket.

Rev. 0.1 9/06

To o l Sti c k D e b u g A d a p t e r

E B U G

D A P T E R

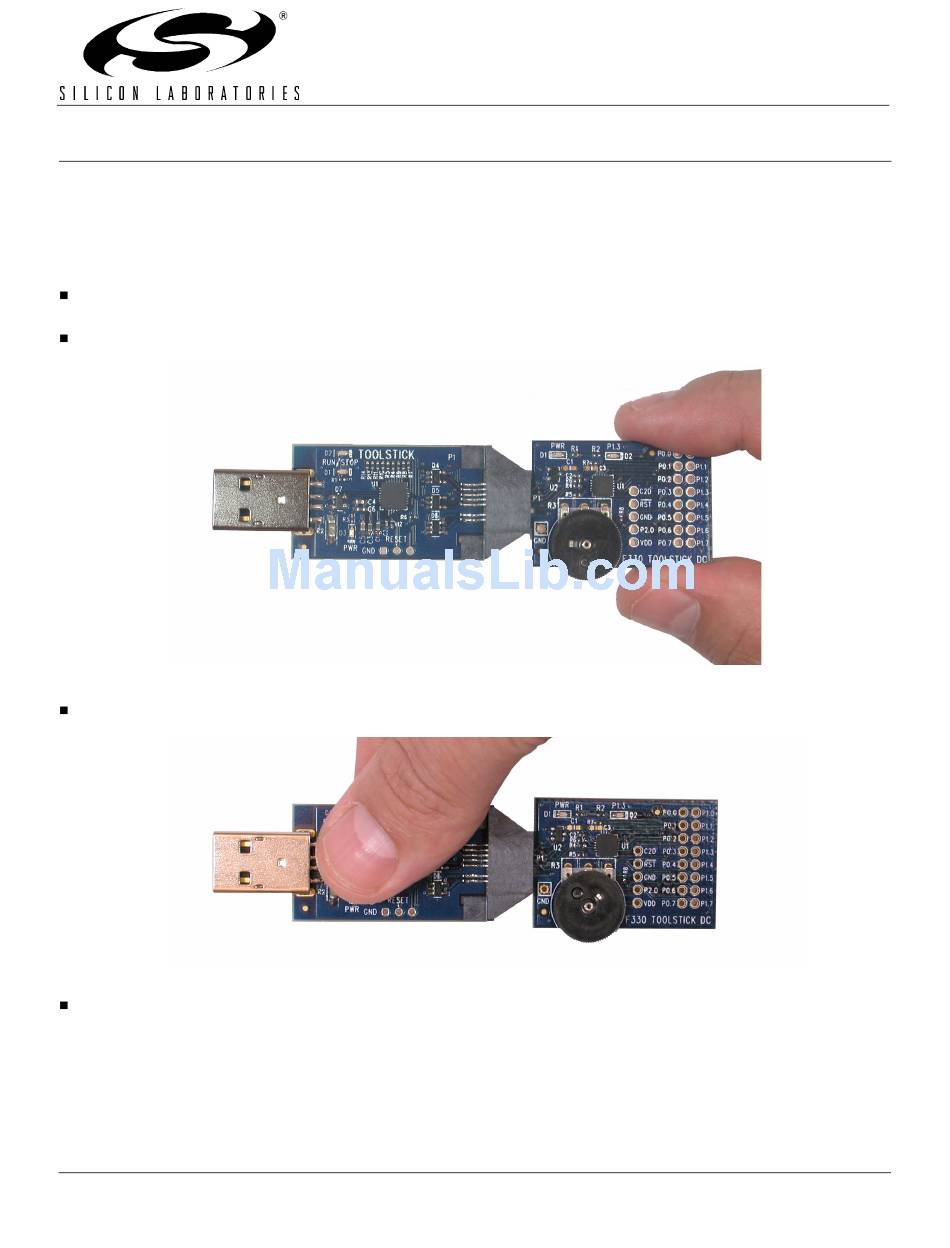

Figure 1. Proper Insertion

Figure 2. Improper Insertion

S E R

U I D E

ToolStick Debug Adapter

Table of Contents

Do you have a question about the Debug Adapter and is the answer not in the manual?

Page 2 Silicon Laboratories JTAG and C2 debug interfaces. Power is provided to the adapter from the USB connection to the PC. The ToolStick Debug Adapter is capable of providing power to a circuit board via pin 10 of the DEBUG connector. See the respective kit user’s guide for instructions on powering a target board from this source.
Page 3 3. Connect one end of the USB cable to the USB connector on the ToolStick Debug Adapter. 4. Connect the other end of the USB cable to a USB port on the PC that will run the Silicon Laboratories IDE.
Page 4 The Silicon Laboratories Integrated Development Environment (IDE), along with other software tools, are provided for device development and debugging. The IDE is available for download from the Silicon Laboratories website and is also available on microcontroller development kit CD-ROMs. Once the IDE has been installed and the hard- ware has been connected as shown in Section 4, follow the steps below to built a project, connect and download to a target board using the ToolStick Debug Adapter.
Page 5 To olSt ick Debug Adapter 6. ToolStick Debug Adaper Schematic Rev. 0.1...
Page 6 Silicon Laboratories products are not designed, intended, or authorized for use in applications intended to support or sustain life, or for any other application in which the failure of the Silicon Laboratories product could create a situation where per- sonal injury or death may occur.
