Cobalt Digital Inc 6540 Owner's Manual

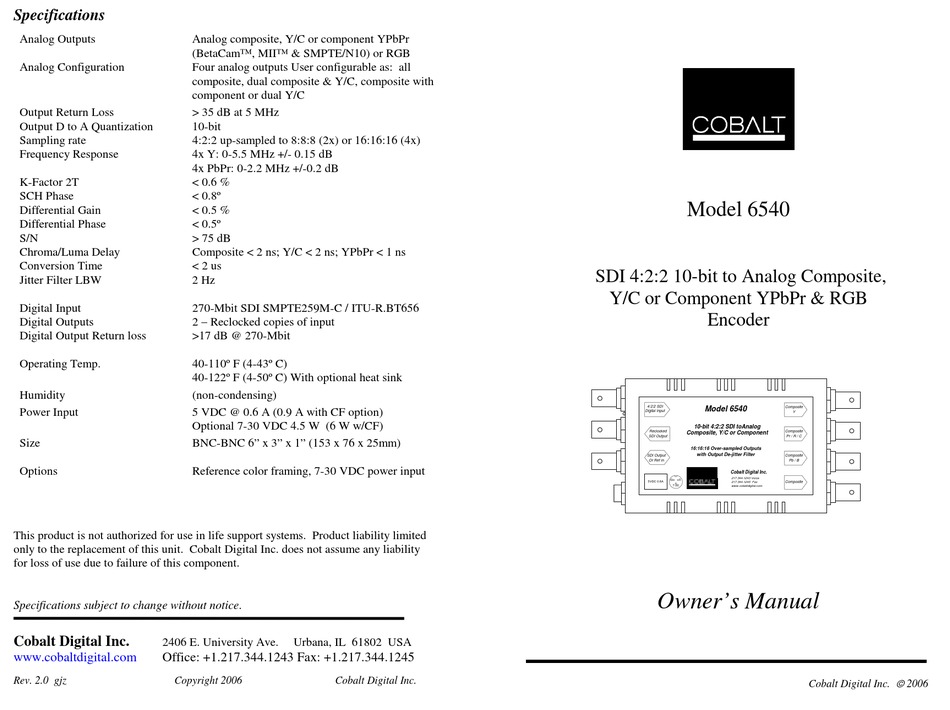

Specifications

Analog Outputs Analog composite, Y/C or component YPbPr
(BetaCam™, MII™ & SMPTE/N10) or RGB
Analog Configuration Four analog outputs User configurable as: all
composite, dual composite & Y/C, composite with
component or dual Y/C
Output Return Loss
Output D to A Quantization
Sampling rate
Frequency Response 4x Y: 0-5.5 MHz +/- 0.15 dB
4x PbPr: 0-2.2 MHz +/-0.2 dB
K-Factor 2T < 0.6 %
SCH Phase < 0.8º
Differential Gain
Differential Phase
S/N
Chroma/Luma Delay
Conversion Time < 2 us
Jitter Filter LBW 2 Hz
Digital Input
Digital Outputs
Digital Output Return loss
Operating Temp.
40-122º F (4-50º C) With optional heat sink
Humidity
Power Input 5 VDC @ 0.6 A (0.9 A with CF option)
Optional 7-30 VDC 4.5 W (6 W w/CF)
Size
Options
This product is not authorized for use in life support systems. Product liability limited
only to the replacement of this unit. Cobalt Digital Inc. does not assume any liability
for loss of use due to failure of this component.
Specifications subject to change without notice.
Cobalt Digital Inc.
2406 E. University Ave.
www.cobaltdigital.com Office: +1.217.344.1243 Fax: +1.217.344.1245
Rev. 2.0 gjz Copyright 2006
> 35 dB at 5 MHz
10-bit
4:2:2 up-sampled to 8:8:8 (2x) or 16:16:16 (4x)
< 0.5 %
< 0.5º
> 75 dB
Composite < 2 ns; Y/C < 2 ns; YPbPr < 1 ns
270-Mbit SDI SMPTE259M-C / ITU-R.BT656
2 – Reclocked copies of input
>17 dB @ 270-Mbit
40-110º F (4-43º C)
(non-condensing)
BNC-BNC 6" x 3" x 1" (153 x 76 x 25mm)
Reference color framing, 7-30 VDC power input
Urbana, IL 61802 USA
Cobalt Digital Inc.
Model 6540
SDI 4:2:2 10-bit to Analog Composite,
Y/C or Component YPbPr & RGB
Encoder
4:2:2 SDI
Model 6540
Digital Input
10-bit 4:2:2 SDI toAnalog
Reclocked
Composite, Y/C or Component
SDI Output
16:16:16 Over-sampled Outputs
with Output De-jitter Filter
SDI Output
Or Ref In
Cobalt Digital Inc.
217.344.1243 Voice
G 5
5VDC 0.8A 217.344.1245 Fax
7-20 www.cobaltdigital.com
Owner's Manual
Composite
Y
Composite
Pr / R / C
Composite
Pb / B
Composite
Cobalt Digital Inc.  2006
