Page 1: User Manual
IMEO1 User Manual www.audac.eu... - Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu.
-
Page 3: Table Of Contents
Index Introduction Precautions Safety requirements Caution servicing EC Declaration of Conformity Waste of Electrical and Electronic Equipment (WEEE) Bluetooth Caution Chapter 1: Connections and connectors Connection standards Chapter 2: Overview IMEO1 Front Rear Remote control Chapter 3: Placement and mounting Chapter 4: Connecting Chapter 5: Additional information Disable / enable specific functions... -
Page 5: Introduction

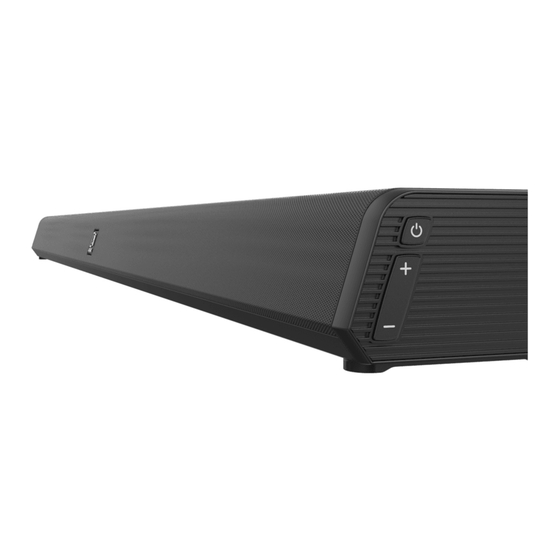

Introduction 2.1 Soundbar The IMEO1 Soundbar features a slim and elegant design and includes all required func- tions for expansion of any audiovisual system with an impressive sound, while having a minimal hassle for installation. It’s perfectly suited for installations such as classrooms, presentation rooms or meeting rooms where it can be used and installed in combination with screens, smartboards or projectors. -
Page 6: Precautions
Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • CLEAN ONLY WITH DRY CLOTH • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS •... -
Page 7: Caution Servicing
CAUTION - SERVICING This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to do so.) EC DECLARATION OF CONFORMITY This product conforms to all the essential requirements and further relevant specifications described in following directives: 2014/30/ EU (EMC) and 2014/35/EU (LVD) WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) -
Page 8: Caution
CAUTION The symbols shown are internationally recognized symbols that warn about potential hazards of electrical products. The lightning flash with arrow point in an equilateral triangle means that the unit contains dangerous voltages. The exclamation point in an equilateral triangle indicates that it is necessary for the user to refer to the users manual. -
Page 9: Chapter 1: Connections And Connectors
Chapter 1 Connections and connectors CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed corresponding to international wiring standards for professional audio equipment. 3.5 mm Jack (AUX): For unbalanced stereo line level input connections Tip: Left... -
Page 11: Chapter 2: Overview Imeo1
Chapter 2 Overview IMEO1 Front 1) Status indicator LED’s: These LED’s indicate the current operation status of the IMEO1. Various color LED’s indicate following statuses: • Red: Standby mode • Green: AUX mode (3.5 mm jack input) • Blue: Bluetooth mode •... -
Page 12: Rear
Rear 5) AC Power inlet connection: The mains power supply (220-240V AC - 50/60 Hz) has to be applied to this AC power inlet. The connection is made by an IEC C8 power connector and the power lead is standard fitted, but can be unplugged for convenient assembly. 6) Coaxial input connection: The coaxial input connection (RCA) allows connecting the sound bar to any TV, receiver or other source device with an coaxial SP/DIF output connection. -
Page 13: Remote Control
Remote control The IMEO1 includes an IR remote controller, which allows the operation of it from a distance. The operation range of the remote controller is about 6 meters and shall be operated without any obstacles between the remote control and the sound bar. Below explanation gives an overview about the possible controls and their explanation. - Page 14 PREPARING THE REMOTE CONTROL First time use: The remote control has a pre-installed lithium CR2025 battery. Remove the protective tab to activate the remote control battery. Replace the remote control battery: The remote control requires a CR2025, 3V Lithium battery. To replace this battery, follow the steps as below: •...
-
Page 15: Chapter 3: Placement And Mounting
Chapter 3 Placement and mounting The IMEO1 offers possibilities for placement on a leveled surface underneath / in front of the TV, display or projection surface. An included mounting bracket offers possibilities for secure wall mounting, above or underneath the TV, display or projection surface. Bottom Table Wall Mount... - Page 16 Step 1: Attach the wall support bar The first step is the mounting of the supplied wall support bar on the desired location on the wall. The support bar has to be fixed to the wall by four screws which need to get fitted through the provided slots.
- Page 17 Step 3: Attach the speaker After the wall support bar is attached and the connections are made, the soundbar shall be fixed to the wall plate. This is done by sliding the hooks assembled to the soundbar into the provided slots on the wall support bar and fixing them. To prevent the soundbar from falling down, the security screw on top of the fixation hooks shall be tightened.
-
Page 18: Chapter 4 Connecting
Chapter 4 Connecting Using the HDMI (ARC) socket The ARC (Audio Return Channel) function allows you to send audio from your ARC compliant TV to your sound bar through a single HDMI link. To enjoy the HDMI AR C HDMI AR C COAXIAL COAXIAL OPTICAL... -
Page 19: Using Bluetooth
When in Bluetooth mode, the blue LED behind the front grill will blink. Activate the Bluetooth mode in your portable device and search for devices. The device name ‘AUDAC IMEO1’ will appear on your Bluetooth device list. If the device can’t be found, press and hold the button on the remote control to be discoverable. - Page 20 NOTE • The operation range between the sound bar device and the Bluetooth transmitter (smartphone, tablet, ... ) is approximately 8 meters. (without any object in between) • Before any Bluetooth device is connected, ensure you know its capabilities • Compatibility with all Bluetooth devices is not guaranteed •...
-
Page 21: Chapter 5: Additional Information
Chapter 5 Additional information Disable / enable specific functions In projects with public system access such as classrooms or conference rooms, it can be desirable to lock it in a specific operation (input) mode or disable specific functions, to avoid users changing the input signal. Lock input: To lock the sound bar in a specific input function (disable the operation mode selection), turn the unit ON and switch to the desired audio source (e.g. -
Page 22: Technical Specifications
Technical specifications Stereo unbalanced line (AUX) Inputs Type Connectors 3.5 mm jack connector Sensitivity 500 mV Coaxial SP/DIF digital input Type Connectors Optical SP/DIF digital input Type Connectors Toslink HDMI ARC Type Connectors HDMI 19-pin Output power 2 x 15 Watt (Left & Right) 30 Watt (Subwoofer) Frequency response 40 Hz - 20 kHz... - Page 23 Accessories included Remote control (IR) 3.5 mm audio cable 3.5 mm audio pigtail 90° HDMI angle adapter Wall mounting bracket User manual...
- Page 24 Notes...
