1 | Overview
The B441 provides IP communication over the Verizon cellular network by directly connecting the
module to the control panel. The control panel can be confi gured for IP alarm reporting, remote
access, or personal notifi cation messages over the cellular network.
The B441 module requires active cellular service to communicate. Bosch Cellular devices are
shipped pre-activated with Bosch Cellular service.
1
1

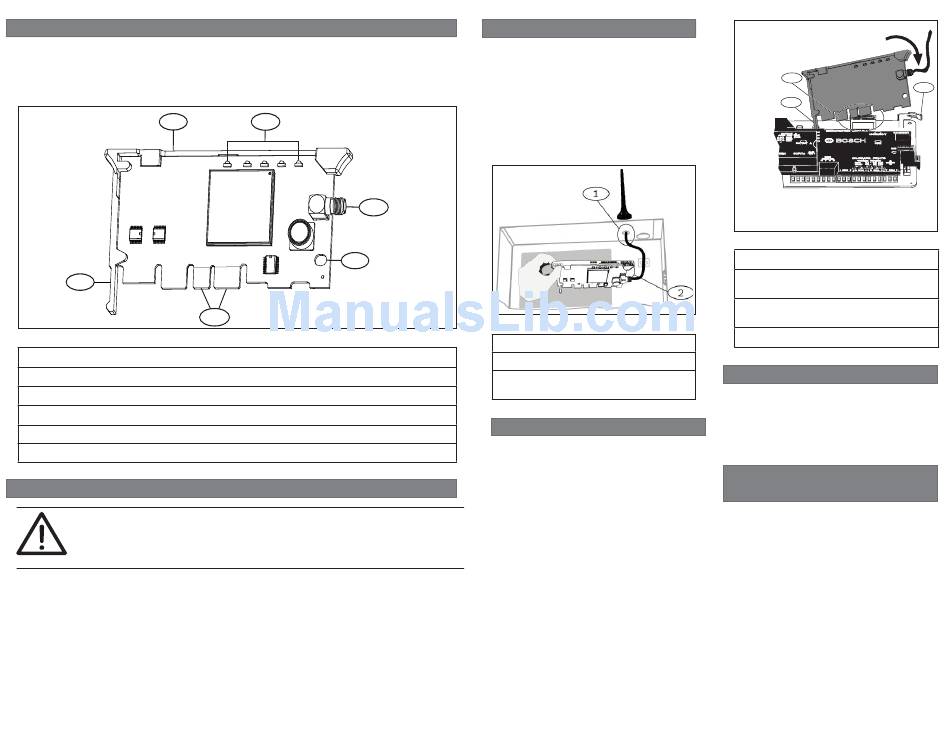

Figure 1.1: Module overview
Callout ― Description
1 ― Module handle and support leg
2 ― LEDs
3 ― Threaded female SMA antenna connector
4 ― Plug-in module retention clip opening
5 ― PCB metal contacts
2 | Install or remove the module
CAUTION!
Remove all power (AC and battery) before making any connections. Failure to do so
might result in personal injury and/or equipment damage.
2
3
4
5
2.1 | Install the antenna
Installing the antenna:
1.
Place the magnetic antenna on top of
the enclosure, or vertically on another
metal surface.
2.
Route the antenna cable through a
knock-out.
3.
Connect the antenna cable to the
module.
4.
Secure the antenna cable to the inside
of the enclosure.
Figure 2.2: Wiring the antenna
Callout ― Description
1 ― Antenna routed though any knock-out
2 ― Antenna cable connected to the
module
2.2 | Install the module
The control panel communicates with and
provides power to the module through the
plug-in connection. Proper installation results
in the necessary electrical and mechanical
connection.
Installing the module:
1.
With the module facing the control
panel as shown below, insert the
support leg into the support hole
labeled X.
2.
Align the PCB metal contacts with the
on-board connector.
3.
Push the module into place. The
retention clip snaps closed and secures
the module in place.
2
1
Figure 2.2: Module installation
Callout ― Description
1 ― Support leg inserted into the control
panel support hole labeled X
2 ― PCB metal contacts resting on the
on-board connector
3 ― Plug-in module retention clip
2.3 | Remove the module
To remove an installed module, hold the plug-
in module retention clip open with one hand
while grasping the top corners of the module
support handle with your other hand. Pull
the module out.
3 | Diagnostic LED
descriptions
At power up, all B441 LEDs activate for
several seconds, indicating proper insertion.
The Signal LEDs then turn off until the
module registers on the cellular network.
Registering a new module might take up to 2
minutes.
Check the LED display to ensure a good
signal strength level, and adjust the antenna
location as required. The signal strength
LEDs momentarily turn off to indicate the
module has measured and updated the signal
strength status. Refer to Table 3.1.
3
