Connecting A Terminal Or Pc To The System Front Serial Craft Port - 3Com 6200 Hardware And Software Users Manual

Interface Connections and First Time Start-Up
3-2
To connect to the serial connector use the DB9 serial connector located on the
front panel of the system.
NOTE: If you are connecting to the system Management Console using a
terminal or PC, the serial port on the terminal or PC must be configured for
9600 baud, 8 data bits, 1 stop bit, no parity, and no flow control.
Connecting a Terminal or PC to the System Front Serial Craft
Port
To connect a terminal or PC to the system front serial craft port:
1. Connect one end of a DB9-to-DB9 cable into the terminal or PC.
2. Connect the other end into the system serial craft port. Figure 3-1
shows the system connected to a laptop computer.
10/100
2 4 6 8 10
1 3 5 7 9
Personal Computer

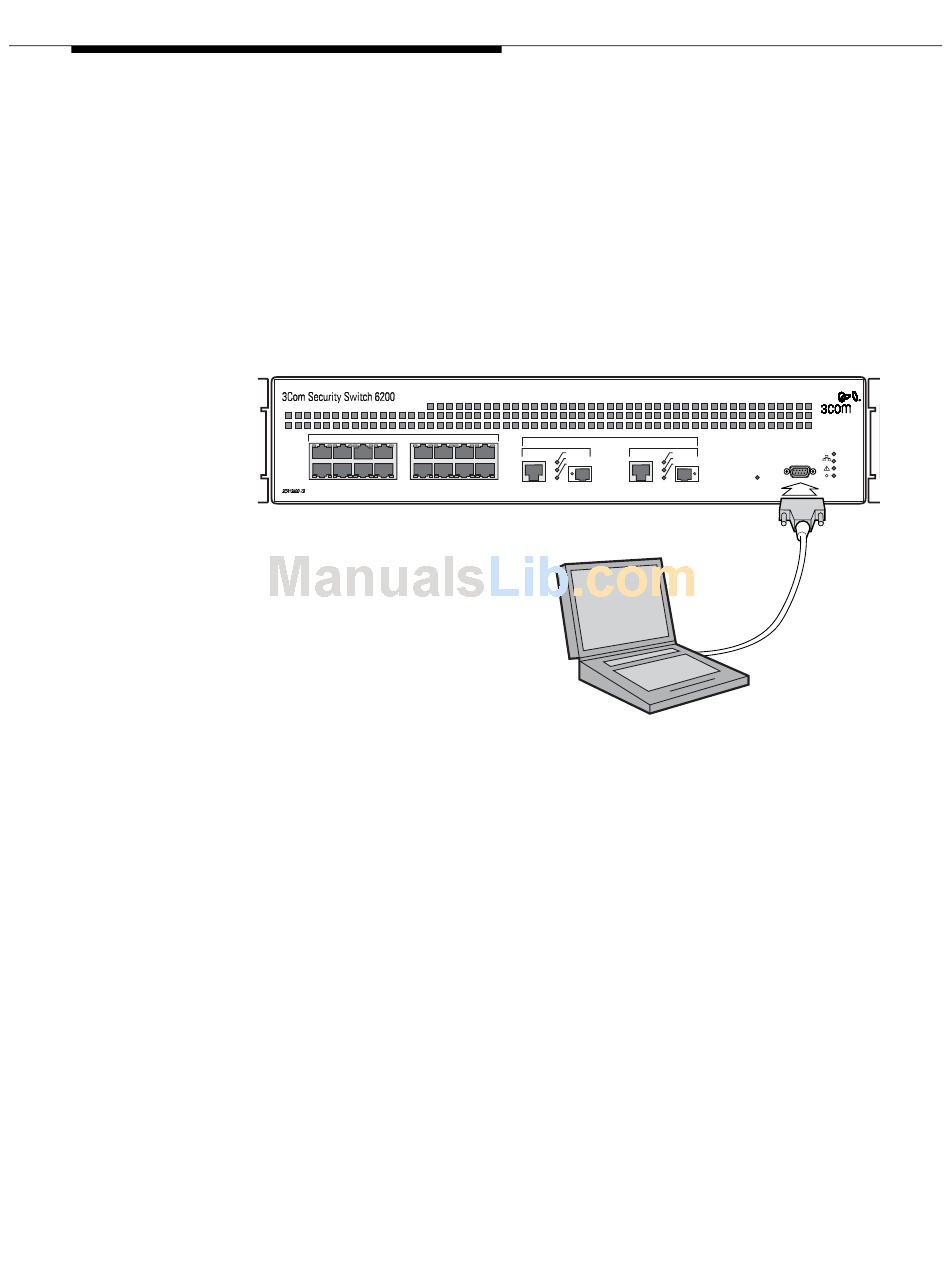

Figure 3-1 Connecting a Laptop Computer to the system Front Serial
Craft Port
3. Set to VT-100 terminal emulation mode.
