User's Guide | Infrared (IR), Radio Frequency (RF) and Wall-box controls
ZRC1-IR

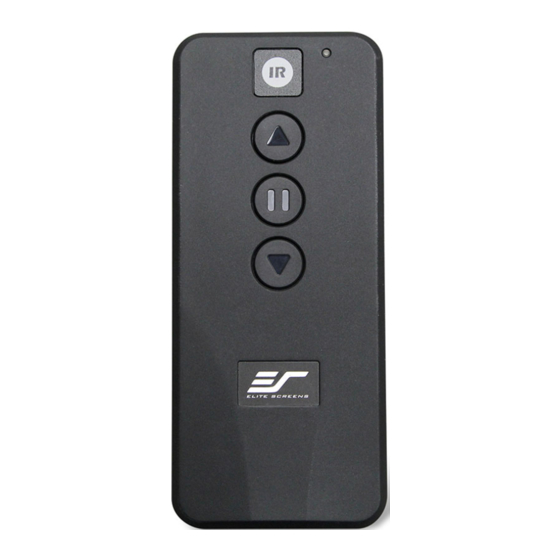

IR remote control
IR Lens
Led Indicator
Up
Stop
Down
Logo
Note: IR remote operation requires a
clear line of sight. Assure the IR receiver
is not obstructed.
When operating the screen with the IR
remote, point the "IR Lens/IR LED"
directly to the screen's "IR receiver".
FBZZ-RC1Z003-01
light
3.5mm Projector
Trigger Port
ZRC1-RF
RF remote controller
Led
Indicator light
Up
Stop
Down
Logo
Slide switches for RF Code Change
(when multiple RF remotes are owned)
Battery compartment
How to change the RF code
Requires AAA x 2
1. Remove the batteries
(not included)
2. Change switch,
3. Insert the batteries
4. Synchronize it with the wall box
(Refer to the Wall-box controller guide for pairing.)
Slide
switches
Default
"000"
1
