Elite Screens ZPM-RT2 Manual

Remote control kit for spectrum 2 series

Remote Control Kit for Spectrum 2 Series

Thank you for purchasing the ZPM-RT2 kit. The ZPM-RT2 kit allows your Spectrum 2 Series electric screen the

ability to control it using a Radio Frequency or Infrared remote control, and a wired or wireless 5-12volt

projector trigger with the included accessories list below.

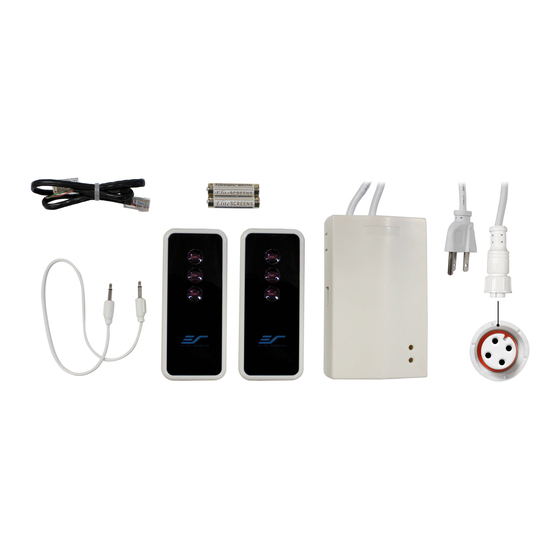

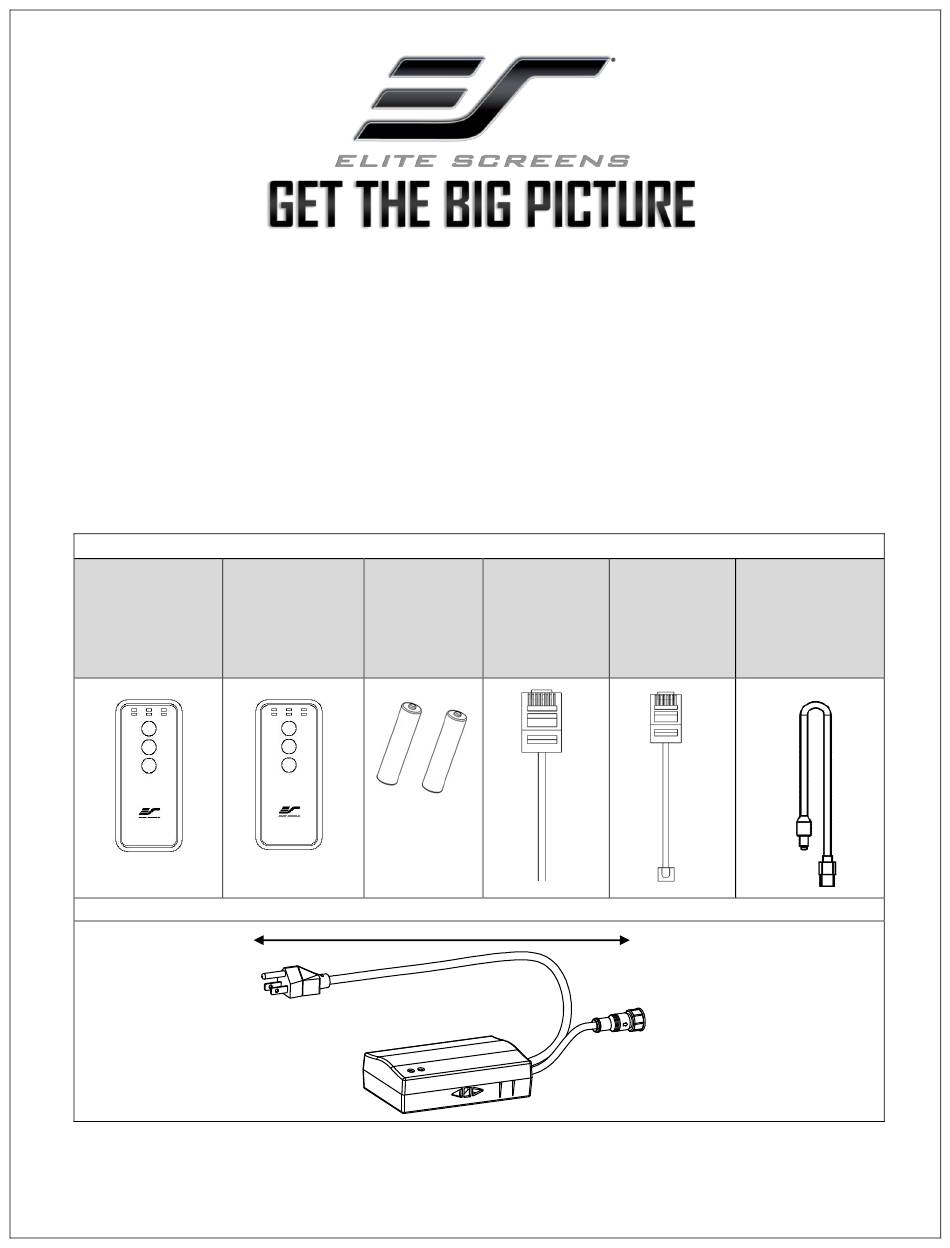

What's included:

ZMP-RT2 accessories/parts list

A. Infrared (IR)

Frequency (RF)

remote x 1 pc

Remote x 1 pc

G. Wall box (circuit board housing)

Rev. 110719-AZ

ZPM-RT2

User's Guide – V2.1

B. Radio

C. AAA

batteries

x 4 pc

67"-95"

D. Wired 5-12

E. IR "eye"

volt projector

receiver x 1 pc

trigger x 1 pc

Red+

Green -

51"

F. Wireless 5-12v

3.5 mm mono to

USB trigger cable

x 1 pc

www.elitescreens.com

Table of Contents

Need help?

Do you have a question about the ZPM-RT2 and is the answer not in the manual?

Page 1 User’s Guide – V2.1 Thank you for purchasing the ZPM-RT2 kit. The ZPM-RT2 kit allows your Spectrum 2 Series electric screen the ability to control it using a Radio Frequency or Infrared remote control, and a wired or wireless 5-12volt projector trigger with the included accessories list below.
Page 2 ZPM-RT2 Installation & Control Instructions 1. Disconnect the 3 Way Control Switch from the Spectrum 2 Screen as shown below. 3 Way Control Switch Screen 2. Connect the Wall Box (G) to the screen as shown below. Wall box (G)
Page 3 Connect the IR Eye Receiver (E) to the Wall Box (G) for high wall or ceiling installations. Fig.2 Wall Box (G) IR Remote (A) IR Eye Receiver (E) 5. 5-12 volt trigger (Item E, Fig 3): The built-in 5-12V trigger input allows your screen to synchronize its drop &...
Page 4 (Please be aware, the projector on/off cycle may take longer to fully activate. It usually takes around 20- 30seconds for full off and on cycle each time) For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Rev. 110719-AZ...
