Remote Control Kit for Spectrum2 Series
Remote Control Kit for Spectrum2 Series
Remote Control Kit for Spectrum2 Series
What's included:
A.IR Remote x 1pc
B.RF Remotex 1pc
ZPM-RT Installation & Control Instructions 1
RT Installation & Control Instructions 1

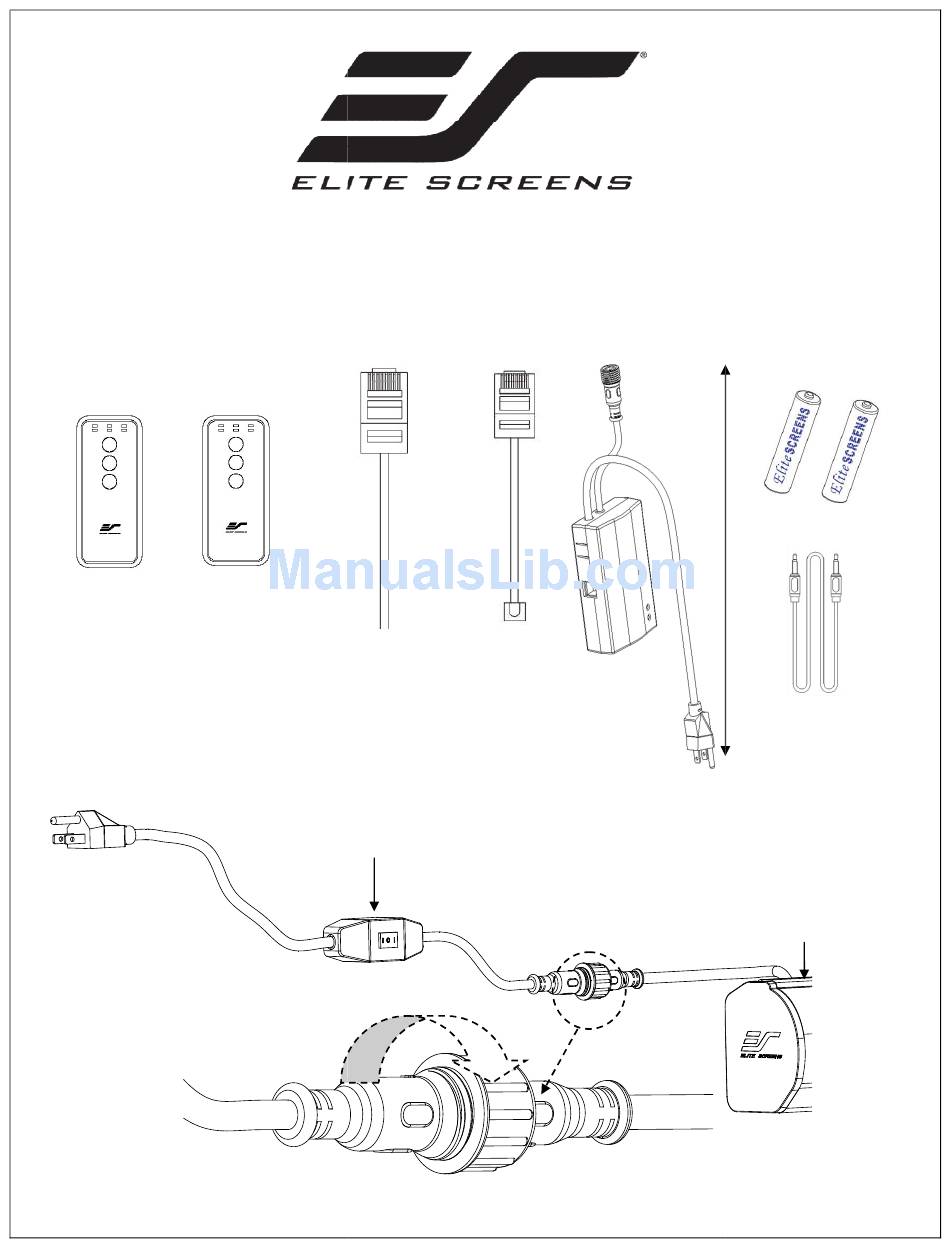

1. Disconnect the 3 Way Control
Rev.081116-MZ
ZPM-RT
User Guide
Red+
Red+
Green -
Green
C. 12V Trigger x 1pc
C. 12V Trigger
D. IR eye receiver x 1pc
Control Switch from the PowerMax Screen as shown below.
Switch from the PowerMax Screen as shown below.
3 Way Control Switch
3 Way Control Switch
1
51"
67"-95"
F. Wall Box x 1pc
www.elitescreens.com
G. AAA batteries x 4pcs
H. Wireless 5-12v (3.5 mm)
mono trigger cable x 1pc
Screen
