Elite Screens ZU12V Manual

Model: ZU12V - Universal Wireless 12V Projector Trigger
ZU12V wireless trigger will work ONLY with Elite Motorized Screens V2.0 and above.

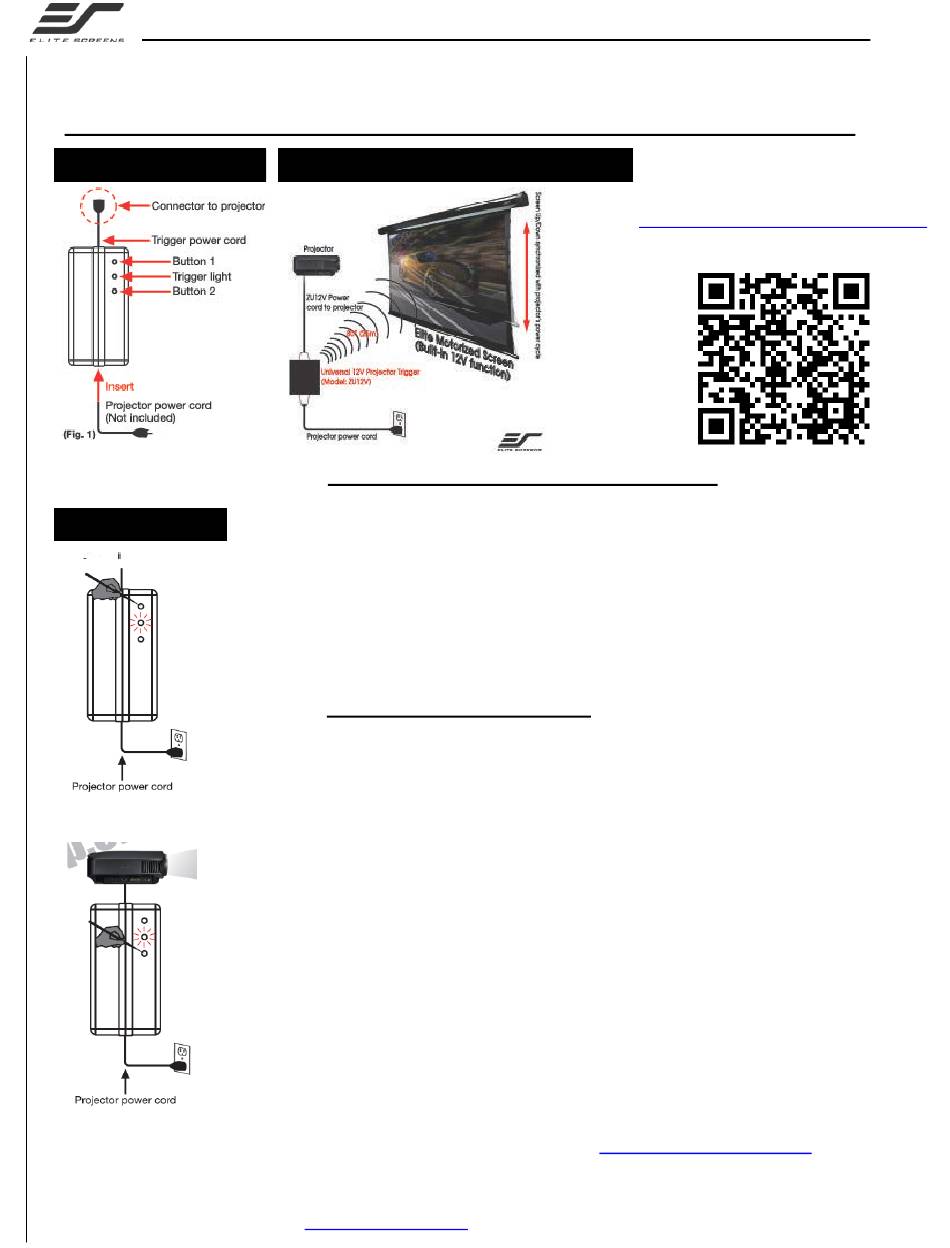

Trigger Diagram Trigger Operation Diagram
Step one:
1.
Instructions
2. Connect the Projector's Power Cable to the ZU12V (Refer. to Fig.1), then plug the
cable into a nearby power outlet. (red light will blink)
3. Press & Hold [Button 1] with pointy object, AND quickly plug in the Elite electric
screen into the power outlet (you may need another person to plug in the screen
power cord), release [Button 1] after 3 seconds
(
Step two:
4. Unplug the Power Cable attached to your motorized Elite Screen from the wall.
5. Plug the ZU12V trigger into your projector
6. Turn on the projector and again, Press & Hold [Button 2] with a pointy object. (blue
light will blink), release [Button 2] after 3 seconds.
6. Turn off the projector.
7. Plug in the Elite electric screen into the power outlet, Power on your projector once
more and your Elite Screen should now automatically drop. If it does not, repeat the
process from Step one.
★When powering off the projector, assure it is completely powered off (ex. fan off),
★If the motorized screen does not automatically drop or retract, repeat the
Note: Operation range for ZU12V is around 80 feet (25 m).
ZU12V and Motorized Elite Screen set up
Unplug the Power Cable attached to your motorized Elite Screen from the wall.
The screen may react and drop about an inch, then retract back into the housing)
ZU12V and Projector set up
then the screen will retract automatically.
process from step one.
Still Not Working? Contact Elite Screens at
www.elitescreens.com
www.elitescreens.com/video/ZU12V-how
service@elitescreens.com
Or USA 877-511-1211
| info@elitescreens.com
To view the instructional video,
please visit
Or scan the QR Code below:
