Technical specifications
Weight
Power supply
Power consumption (@ 13.5 V) Backlight OFF: 0.81 W (60 mA)
Network load
Housing
Waterproofing standard
Operating temperature
Storage temperature
Maximum humidity
Connectors
Dimensions and mounting
60 mm (2.36")
<10
10>
<1
1>
STBY
AUTO
MODE
0.15 kg (0.33 lbs)
9 - 16 V
Backlight MAX: 1.38 W (102 mA)
3 LEN
PC/ABS
IPx7
-25°C to +65°C (-13°F to +149°F)
-40°C to +85°C (-40°F to +185°F)
100% RH
1x male Micro-C
35 mm
(1.37")
25.5 mm
8 mm
(1.00")
(0.31")
88 mm (3.46")
Wiring
C
A
Micro-C Drop cable (female to male) max drop 6 m/20 ft
B
Micro-C T-connector
C
NMEA 2000 backbone
OP12
Autopilot controller
User Guide
English
<10
10>
<1
1>
STBY
AUTO
MODE
A
B
C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simrad OP12
Summary of Contents for Simrad OP12
-
Page 1: Technical Specifications

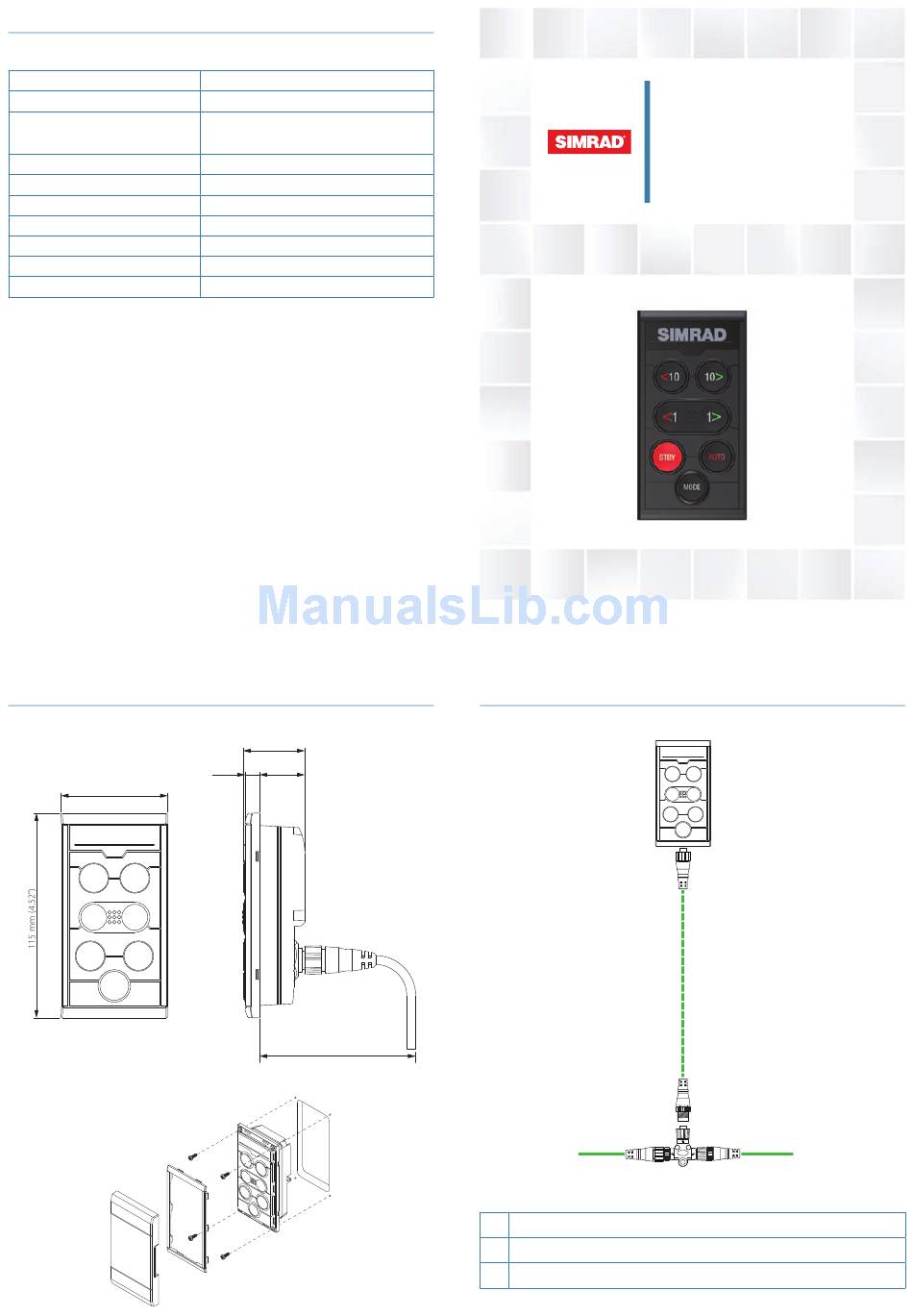

Technical specifications Weight 0.15 kg (0.33 lbs) OP12 Power supply 9 - 16 V Autopilot controller Power consumption (@ 13.5 V) Backlight OFF: 0.81 W (60 mA) User Guide Backlight MAX: 1.38 W (102 mA) Network load 3 LEN English... - Page 2 Box content Operation <10 10> <1 1> STBY AUTO MODE Autopilot controller Micro-C Drop cable 0.6 m/2 ft Documentation pack Mounting screws (4 x #4 x 3/8” PN HD SS screws) Micro-C T-connector Bezel Sun cover Operation MODE key Mode and alarm indicator: ¼...
