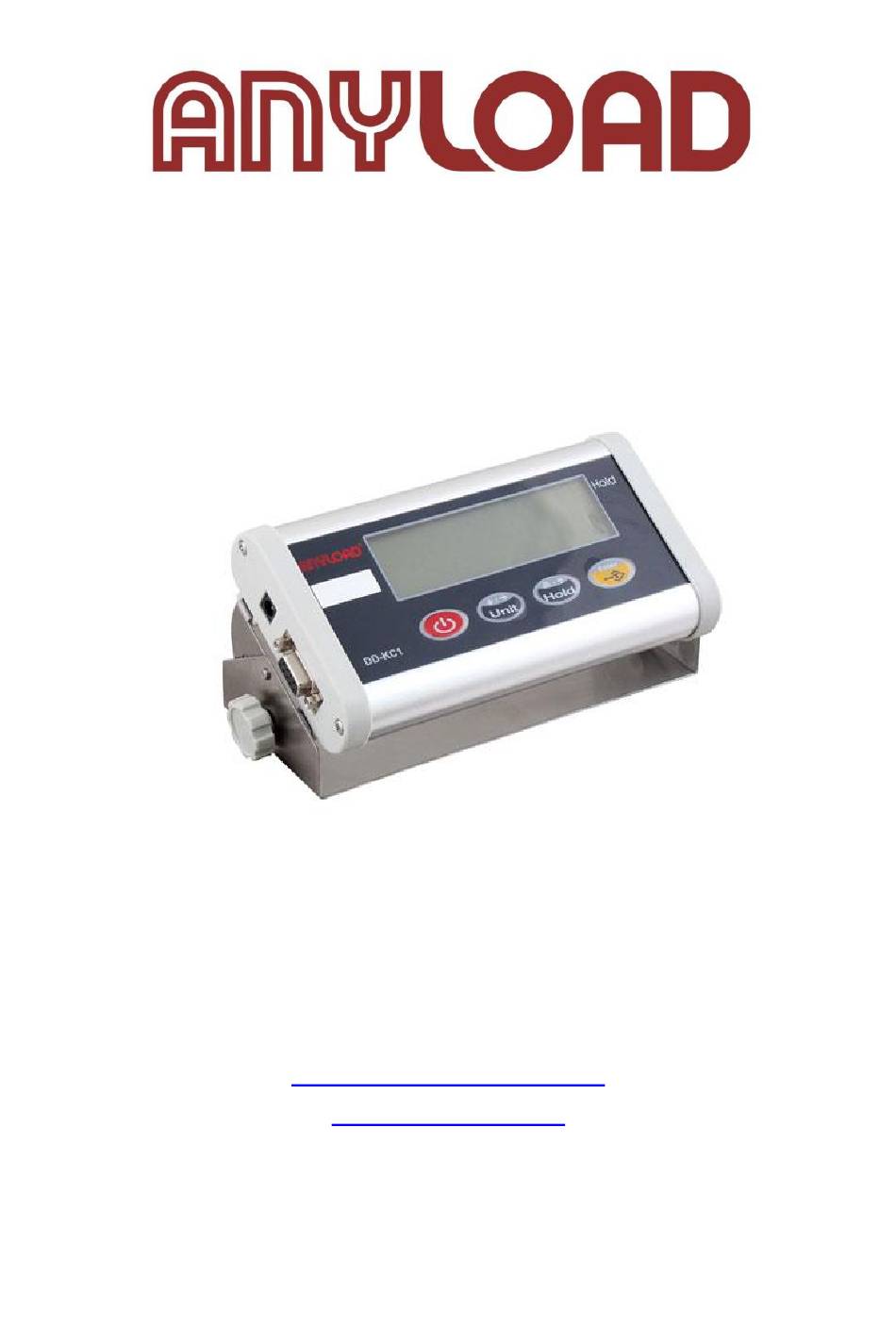

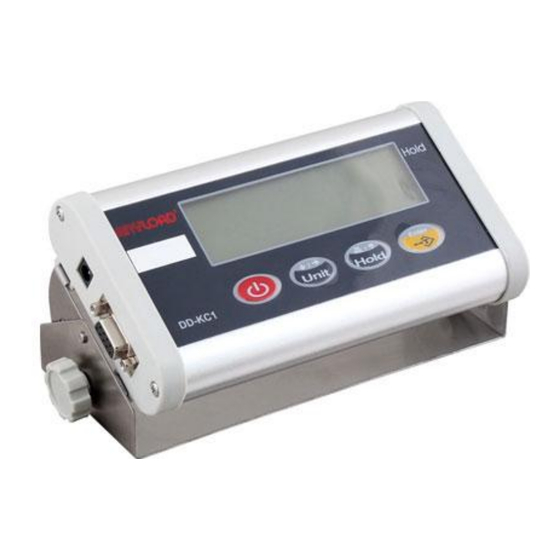

- Page 1 DD-KC1 Indicator Operation Manual (V0316) North America Toll Free: 1-855-ANYLOAD (269 5623) Fax: +1-866-612-9088 http://www.anyload.com info@anyload.com...
-
Page 2: Table Of Contents
Contents 1. Structure and Installation…………………………………………………………….1 2. Packing List………………………………………………………………………………….1 3. Buttons’ Functions……………………………………………………………………….1 4. Operation Method……………………………………………………………………….2 4.1 Turn on and off……………………………………………………………….2 4.2 Connecting the load cell………………………………………………….2 4.2.2 Load cell output sensitivity……………………………………….3 4.3 Weighing…………………………………………………………………………3 4.4 Animal Weighing/Hold (On by default) …………………………..3 4.5 Calibration Methods……………………………………………………….3 4.5.1 Random Single-Point Calibration………………..…………….3 4.5.2 Standard Two Point Weight Calibration……..……………..4 4.6 Changing Units………………………………………………………………..5... -
Page 3: Structure And Installation
1. Structure and Installation 2. Packing List ① Indicator 1 piece ② AC Adapter 1 piece ③ Instruction 1 copy ④ Guarantee Statement 1 copy 3. Buttons’ Functions Table 1 Function Menu Function Serial port order code Turn on/off Null Switch the unit Go Down on menu or parameters... -
Page 4: Operation Method
4．Operation Method 4.1 Turn on and off Adapter: Insert the plug of AC Adapter into the power supply hub which is on the left of the Display Indicator, and insert the AC Adapter into AC socket. Battery： Open the battery cover which is on the right of the Display Indicator, load 4 x AAA alkaline cells into the cell box (note the polarity) and then close the battery cover. -
Page 5: Load Cell Output Sensitivity
4.2.2 Load cell output sensitivity: 1～2m V／V 4.3 Weighing When power-on, with nothing on the platform, press button once, the instrument will then display “ 0 ”. Place an object on the platform. After the “kg”, “lb” or “pcs” character stops flashing, which means that the data is stable, you can begin to read it. 4.4 Animal Weighing/Hold (On by default) When the scale is on, press and hold key until the display "0FF"... -
Page 6: Standard Two Point Weight Calibration
should be loaded on the platform. If you have to change this weight, you can press button to enter the modify menu; press button to change button to make the flashing position’s number the flashing position and press plus 1, and press button to finish the modification g) After making sure the weight on the platform is“xx.xkg”, press button to... -
Page 7: Changing Units
4.6 Changing Units Press the button to switch the unit of measurement, kg --- lb--- pcs--- kg. 4.7 “Hold” Function Once the key is pressed: 4.7.1 The CPU will send the weight data into RS232 socket. 4.7.2 The weight will remain on the display for 120 seconds after the item has been removed from the scale so the weight can beeasily read. -
Page 8: Serial Port Printout
cancel the sampling, and the scale will adopt last sampling value to count ; e. After you confirm the quantity of objects on the platform and the data displayed on the LCD are the same, short press to confirm, and then begin to sample and count;... -
Page 9: Factory Parameter Settings
d. Output Data Form: 8 bytes data bit + 3 bytes unit code + 2 bytes ending code. The above-mentioned characters are all ASCII codes, and the unit can be kg, lb or pcs. e. The serial ports order can be found in Chapter 2 “button function”. Example of Output Data：... -
Page 10: Set User Parameter
Set User Parameter a) When the scale is off, please press button together with the button to button until the screen displays “------”； turn on the scale. Do not release the b) Press the button to switch the menu； c) Press the button to enter the display menu；... -
Page 11: Meaning Of Cue Code
-End- Finish measuring null save parameters 7．Meaning of Cue Code Table 4 Display Code Meaning of Code Solution 1 、 The calibration weight value is not 1、Load the weight value loaded according to the display when according to the show calibrating. -
Page 12: Malfunction
The scale is not calibrated. weight. Re-calibrate. False calibration The calibration weight is not Use the precise calibration weight. precise. 10．Specification Model DD-KC1 Capacity x Readability 3000e Parts counting Standard Repeatability (std.dev) 0.03% Linearity 0.03% T range... - Page 13 North America Toll Free: 1-855-ANYLOAD (269 5623) Fax: +1 866 612 9088 Email: info@anyload.com 11 | A n y l o a d D D - K C 1 M a n u a l V ( 1 6 0 3 )
