Anyload OCSD Series Operation Manual

Wireless dynamometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

OCSD
Wireless Dynamometer
Operations Manual
Anyload Weigh & Measure Inc.
Website: www.anyload.com
Email: info@anyload.com
(V1904)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCSD Series and is the answer not in the manual?

Questions and answers

Related Manuals for Anyload OCSD Series

Summary of Contents for Anyload OCSD Series

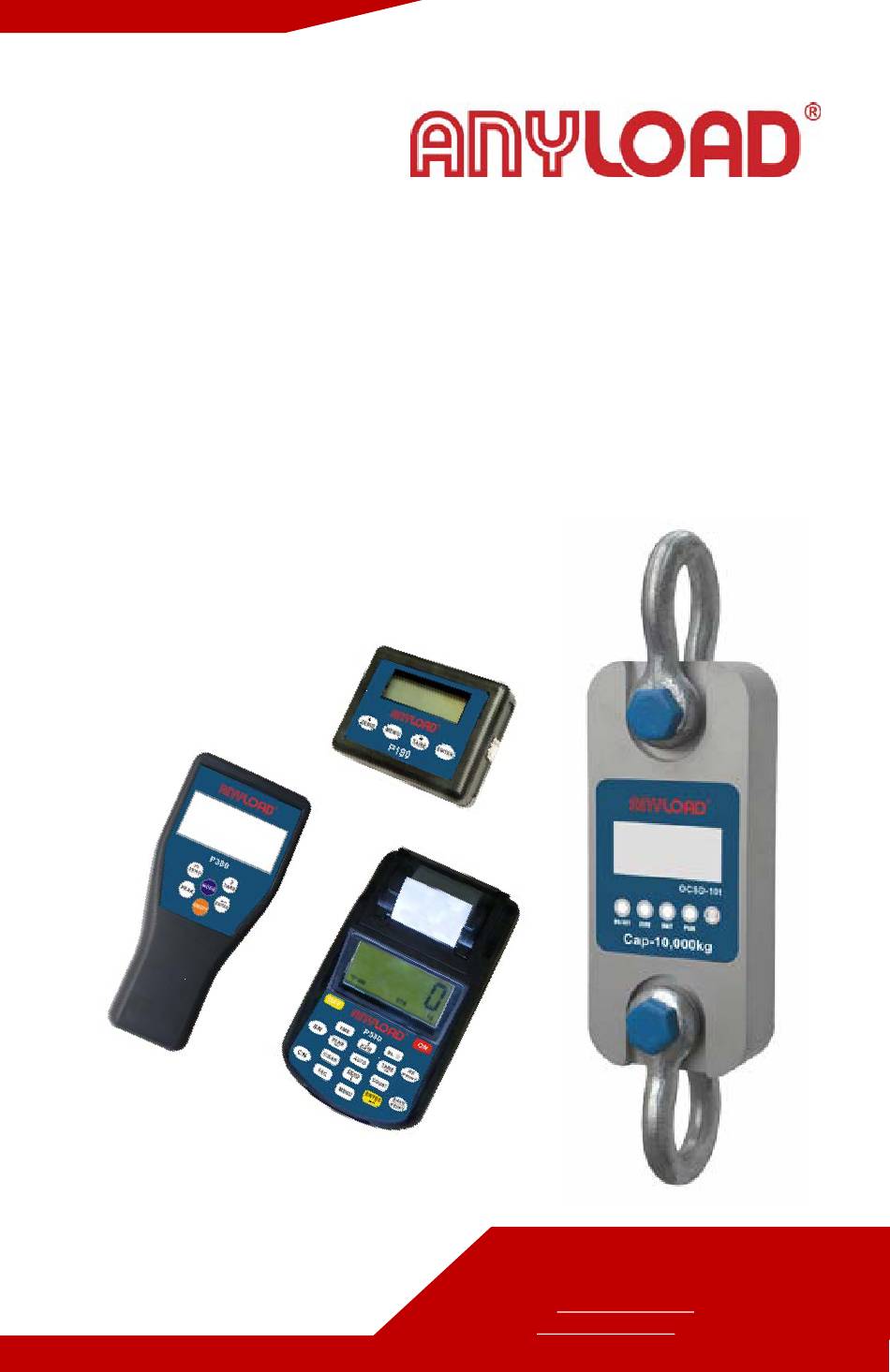

  • Page 1 OCSD Wireless Dynamometer Operations Manual (V1904) Anyload Weigh & Measure Inc. Website: www.anyload.com Email: info@anyload.com...

  • Page 2: Table Of Contents

    5.9 Set Point 6. Wireless Indicator Operation Guides 7. Parameter Settings and Calibration 7.1 Key Functions 7.2 Parameter Settings 7.3 Calibration 7.3.1 One-Point Calibration 7.3.2 Three-Point Calibration Display Illustration Troubleshooting Guide 10 RS232 Protocol ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 3: Introduction And Product Features

    Introduction and Product Features Thank you for choosing Anyload OCSD Wireless Dynamometer with P180/P380/P580 Wireless Display. The OCSD Wireless Dynamometer is a well- built weighing instrument used for different weighing applications equipped with microprocessor for the precision and accuracy. Parameter settings and calibration are easy to configure through its wireless indicator.

  • Page 4: Safe Operation Guides

    AA size alkaline batteries. 1.5Vx3 Indicator battery AA size alkaline batteries. 1.5Vx4 Operating Temp. - 10°C ~ + 40°C Operating Humidity ≤85% RH under 20°C Wireless Distance Up to 30m Wireless Frequency 2.4GHz (default), 433MHz,860MHz (optional) ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 5: Technical Specifications

    3.3 Appearance Illustration Cap: 1-5t Cap: 10-200t DIMENSIONS (Dimensions shown are nominal and subject to tolerances) MODEL C(mm) D(mm) φ(mm) H(mm) Material A(mm) B(mm) OCSD-1t Aluminum OCSD-2t Aluminum OCSD-3t Aluminum OCSD-5t Aluminum OCSD- Alloy Steel ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 6: Power Supply

     Low battery warning: When the digits at the display are flashing, it means the battery needs to be replaced. The Dynamometer or wireless indicator will turn off automatically if no activities detected after an hour. ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 7: Display And Keys

    UNIT key Pressing the UNIT key, the scale will switch its unit and the screen will display the following units in order: “kg”→ “lb” →“N” → “kN”→ “t”→ “kg”. d. PEAK key ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 8: Dynamometer Functions Guides

    5.2 Zero When the Dynamometer is on, OPERATION DISPLAY generally it displays〖 0〗. Press（ZERO） 0〗 〖 In case no weight on it but Press【ZERO】 displaying other than ‘0”, press this button to reset it. ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 9: Tare

    Current accumulation time 〖No***〗 Current weight reading 〖*****〗 Front four digits of total value 〖H****〗 Rear four digits of total value 〖L****〗 Press 【MENU】or Return 【MODE】key again Pressing【TARE】and【ZERO】can check different times, weight and accumulation. ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 10: Accumulation Clear

    N; 3 means KN; 4 means ton. Press 【MENU】or 〖 0〗 Confirm chosen unit and return 【MODE】 key to weighing mode. Press (UNIT) The dynamometer will display 〖Un=0〗 kg, lb, N, kN, ton in sequence. ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 11: Return

    The screen should display 02000 if 〖02000〗 confirm you set it to 2000. Press【 ZERO 】and Set “1 HI” or “1 LO” Value. e.g. 〖01000〗 【TARE】to change 1000kg value Press【ENTER】to SP2〗 Set point 2 〖 confirm 10 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 12: Wireless Indicator Operation Guides

    3. If the object(s) and container are removed, the dynamometer will display a negative value. 4. During Parameter Settings, it can also be used as a directional key. 11 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)
  • Page 13 Pressing 【 MODE】 key 6 times will d i s p l a y “SACCU”. Press 【 ENTER】 t o access Accumulation Search status. Press 【 MODE】 key to return to 12 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 14: Parameter Settings And Calibration

    【MENU】 Store and exit 【ENTER】 Confirm 7.2 Parameter Settings OPERATION DISPLAY DESCRIPTION Press【MENU】or Confirm to enter into parameter 【MODE】key 〖SETUP〗 settings menu twice Press【ENTER】 The screen displaying FS=06 means the 〖FS=06〗 13 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)
  • Page 15 (e.g Cd=11). C: zero-tracking range. There are 6 Press【ZERO】or options; 0=0d; 1=0.5d; 2=1d; 3=1.5d; 【DATE】 4=2d; 5=2.5d 〖Cd=12〗 to choose d: display speed. There are 3 options: 0=slow; 1=average; 2=fast. Before 14 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)
  • Page 16 There are 3 choices: 1 OFF means you 【DATE】 to 〖1 LO〗 will not set set point; 1 HI means the choose indicator will alarm when load exceeds the value you set; 1 LO means the 15 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)
  • Page 17 【TARE】to value. The value range is 9.783 - 9.832. change value 〖 End 〗 Press【MENU】or Confirm above parameter setting. Exit 〖 0〗 【MODE】key parameter setting program. 16 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 18: Calibration

    Press 【 ENTER 】 key calibration In this stage we have to run the zero Press 【 ENTER 】 key 〖CALSP〗 calibration. Make sure the scale has 17 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 19: Three-Point Calibration

    Turn the indicator off. While the indicator is off, press and hold【MENU】or 【MODE】 key then press the ON/OFF key until it displays 〖LOCAL〗. For P180, you must use its USB and insert it to a PC to get a power. 18 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)
  • Page 20 Hanging the second load LOAD2 which is Press【ENTER】 3000kg (from our example). Second load 〖LoAd2〗 must be at least 20% of its capacity greater than the first load. Wait until STB 19 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 21: Display Illustration

    Exceed low limit Tare weight cannot be negative 〖﹍﹍ 〗 Waiting stable 〖-----〗 Weight less than Min. Capacity Cannot accumulate the value 〖Err10〗 Accumulated times overflow Cannot accumulate after 30 〖Err11〗 20 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 22: Troubleshooting Guide

    〖-Lb- 〗 minute later The voltage of current 〖U*.**〗 battery When parameter setting or 〖 End 〗 calibration ready 〖 OFF 〗 Turn off Input value before STB light 〖Unstb〗 Troubleshooting Guides 21 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)

  • Page 23: Rs232 Protocol

    X is signal decimal (unstable) position Without signal RS-232 Setup Instructions Communication Configuration Port : COM1 Baud Rate: 4800 Data Bits : Stop Bits : 1 Parity : None Display mode 22 | ANYLOAD OCSD Wireless Dynamometer Operations Manual (V1904)
  • Page 24 Anyload Weigh & Measure Inc. Website: www.anyload.com Email: info@anyload.com Fax: +1 866 612 9088 North America Toll Free: 1-855-ANYLOAD (269 5623)
