Summary of Contents for Caple CR9228

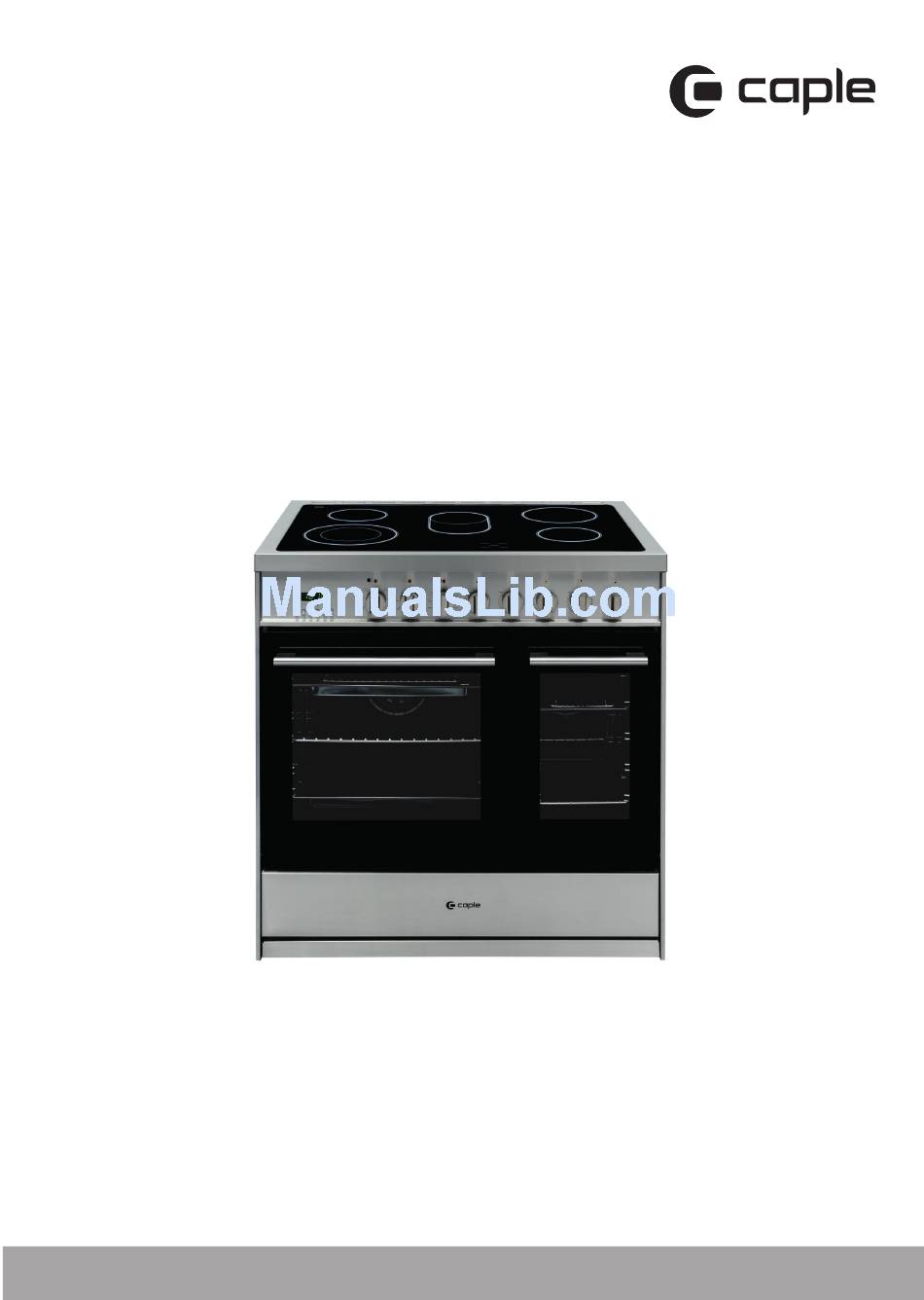

- Page 1 Range cooker instruction manual CR9228 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Warranty Instructions for use How to use your oven Maintenance and Cleaning How to remove the oven door Replacing the oven lamp Troubleshooting Warranty Installation Caple Service contact details Please keep this instruction manual for future reference Instruction manual CR9228... -
Page 3: Safety Information
- This appliance can only be used safely when it is correctly connected to an efficient earthing system in compliance with current electrical safety standards. - If the supply cord or plug is damaged, it must be replaced by Caple Service or a qualified person in order to avoid a hazard. - Page 4 In order to prevent accidental tipping of the appliance use the anti-tilting chain provided, please refer to the instructions for installation. Caple will not accept any liability as a result of any damage due to incorrect installation or improper use.
- Page 5 Always request the use of original spare parts. Caple Service contact details If you have any technical issues or queries the Caple service department can be contacted on 0117 938 7420 or via email service@caple.co.uk Please keep this instruction manual for future reference...
-
Page 6: Environmental Protection
IMPORTANT Caple cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that Caple reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. -
Page 7: Instructions For Use
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. Spare parts are only available from Caple Service and Spare Parts Authorised Centres. -
Page 8: Use And Care
It is very important that the pans used on the hob are made of a suitable material and have the correct type of base. The base should be flat and smooth, as any rough part on the base may scratch or damage the ceramic hob top. Please keep this instruction manual for future reference Instruction manual CR9228... - Page 9 - To avoid scratching the ceramic glass surface, never use cast-iron pans or pans with a rough bottom. - To avoid wasting energy, make sure the diameter of the pan bottom is 20mm bigger than the circle marked on the hotplate. Please keep this instruction manual for future reference Instruction manual CR9228...
-
Page 10: How To Use Your Oven
To replace reverse the procedure. Please keep this instruction manual for future reference Instruction manual CR9228... - Page 11 All the functions mentioned above switch the oven internal light on. A warning light on the control panel will stay lit until the temperature is reached; after it will light up intermittently. The oven door must be closed for all cooking methods. Please keep this instruction manual for future reference Instruction manual CR9228...
- Page 12 - In the event of a power-cut, the display will turn off and the set times and 24 hour clock will not display. Once power is back on, three ‘0’ and ‘AUTO’ show on the screen, this mean the oven has been automatically reset. Please keep this instruction manual for future reference Instruction manual CR9228...
-
Page 13: Using The Grill
However, this does not mean you cannot use lower temperatures, simply adjust the thermostat knob to the desired temperature. Important: For best results and to save energy, always use the turbo grill with the oven door closed. Please keep this instruction manual for future reference Instruction manual CR9228... - Page 14 - Make sure that the shelf is in the centre of the oven. If you would like to increase the amount of heat from below, use a lower shelf height. Please keep this instruction manual for future reference Instruction manual CR9228...
- Page 15 Roast hare 160-170 30-50 Roast pigeon 140-170 15-25 Fish 150-170 Pizza 210-240 30-50 Fruit cake 170-190 40-50 Sponge cake 190-220 25-35 Brioche 160-170 40-60 Strudel 25-35 Bread 190-210 Toast 220-240 Please keep this instruction manual for future reference Instruction manual CR9228...
-
Page 16: Maintenance And Cleaning
- Always clean the appliance immediately after spillage to minimise permanent damage, it is recommended that the product is inspected at least every 5 years by an authorised technician. Please keep this instruction manual for future reference Instruction manual CR9228... -
Page 17: How To Remove The Oven Door
- Remove the lamp and replace with a heat resistant lamp ensuring it is suitable for temperatures up to 300˚C with the following characteristics: Voltage: 220-240V Wattage: 25W Type: E 14 · Replace the glass cover and reconnect the oven to the mains power supply. Please keep this instruction manual for future reference Instruction manual CR9228... -
Page 18: Troubleshooting
Any subsequent necessary repairs or adjustments must be carried out with the greatest care and attention by authorised personnel. For this reason, we strongly advise you contact Caple Service, specifying the nature of the problem, the model of the equipment and the serial number. This information is provided on the rating plate on the base of the appliance and on the duplicate rating plate. -
Page 19: Installation
Note Before any procedure, it is important to check that the appliance is DISCONNECTED from the electrical mains. Caple declines all responsibility for any damage deriving from installations in breach of the regulations in force or from failure to comply with these installation instructions. -
Page 20: Electrical Connection
I.E.T and local regulations. - This appliance is intended to be connected to fixed wiring and is not suitable for connection to a 13A plug or 13A supply Please keep this instruction manual for future reference Instruction manual CR9228... - Page 21 Replacing the power supply lead - If the supply cord or plug is damaged, it must be replaced by Caple service or a similarly qualified person in order to avoid hazard. After installation - When the installation is complete, operate each element and the oven to check that they are operating correctly. Make sure the indicator lights are also operating correctly.
- Page 22 Please keep this instruction manual for future reference Instruction manual CR9228...
- Page 23 Please keep this instruction manual for future reference Instruction manual CR9228...
-
Page 24: Caple Service Contact Details
Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual CR9228...
