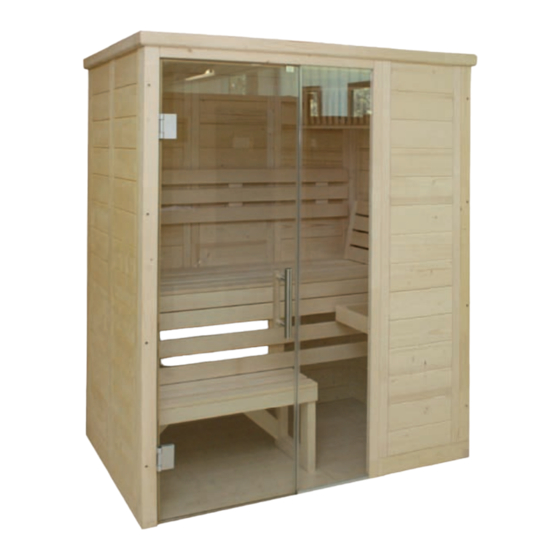

- Page 1 Montageanleitung Assembly instructions Instructions de montage ALASKA MINI Massivsauna 160 x 110 x 204 cm Log board sauna ALASKA MINI Sauna en madriers ALASKA MINI...
- Page 2 Assembly instructions Log board sauna ALASKA MINI Dimension of the cabin: 156 x 108 x 202 cm incl. border edging: 160 x 110 x 204 cm Inside dimension: 148 x 100 x 198 cm Wall thickness: 40 mm Dear customer, Before starting to assemble the cabin, please check with the help of the parts list, if all elements have actually been supplied.
-
Page 3: Parts List
Parts list 4 floor frame massive battens 4 x 9 cm (1 pc. 156 1 heater protective grille 37,5 x 8 x 2 cm cm; 1 pc. 108 cm; 1 pc. 102 cm; 1 pc. 50 cm) 3 assembly battens for heater protection grill 7 x 3 corner battens 90°... - Page 4 Assembly instructions fig. 1.1 screw 4 x 70 mm screw 6 x 120 mm fig. 1.2 fig. 1.3 mylife...
- Page 5 fig. 1.4 fig. 1.5 mylife...
- Page 6 Assembly instructions screw 4 x 70 mm fig. 1.7 fig. 1.6 fig. 1.8 Electrical element (on the right Electrical element (on the right or on the left side of the door) fig. 1.8 mylife...
- Page 7 screw 6 x 120 mm fig. 1.10 screw 4 x 70 mm fig. 1.9 fig. 1.12 fig. 1.11 mylife...
- Page 8 Assembly instructions fig. 1.13 Plug on the aluminium Plug on the aluminium batten fig. 1.14 Plug on the glass door seal Plug on the glass door seal fig. 1.15 mylife...
- Page 9 screw 4 x 70 mm fig. 1.16 fig. 1.17 fig..1.18 fig. 1.19 mylife...
- Page 10 Assembly instructions fig..1.20 4 pcs. screw 3 x 40 mm screw 5 x 70 mm fig. 1.21 mylife...
- Page 11 screw 4 x 60 mm screw 4 x 60 mm fig. 1.22 fig. 1.23 mylife...
- Page 12 Assembly instructions fig. 1.24 mylife...
- Page 13 fig. 1.25 fig. 1.26 screw 4 x 70 mm screw 4 x 70 mm fig. 1.27 fig. 1.28 screw 3 x 40 mm screw 3 x 40 mm fig. 1.29 13 13 mylife mylife...
- Page 14 Assembly instructions fig. 1.30 fig. 1.31 screw 3 x 40 mm fig. 1.32 mylife...
- Page 15 screw 3 x 40 mm screw 3 x 40 mm fig. 1.33 fig. 1.34 fig. 1.35 screw 3 x 40 mm fig. 1.36 mylife...
- Page 16 Assembly instructions fig. 1.37 fig. 1.38 fig. 1.40 fig. 1.39 screw 5 x 30 mm screw 5 x 30 mm mylife...
- Page 17 fig. 1.41 outside inside Put the sheet metal on the glass door fig. 1.42 mylife...
- Page 18 Assembly instructions screw 3 x 40 mm fig. 1.43 fig. 1.44 mylife...
- Page 19 Covering for the screw hole Covering for the screw hole fig. 1.45 fig. 1.46 fig. 1.46 fig. 1.46 fig. 1.46 fig. 1.46 mylife...
- Page 20 Assembly instructions PLAN ALASKA MINI 160 x 110 x 204 cm Assembly of the cabin left or right mylife...
- Page 21 A-4846 Redlham Tel. +43 (7674) 604-0 Fax 604-777 e-mail: office@worldofmylife.at S.C.FER.KO.SRL str. Stadionului nr. 4 R-535500 Gheorgheni Massivsauna ALASKA MINI Log board sauna ALASKA MINI Jud. Harghita Sauna en madriers ALASKA MINI Tel. +40 (266) 364-359 Fax 364-358 email: sauna@sauna.ro myli-...
