Summary of Contents for Macurco HD-11

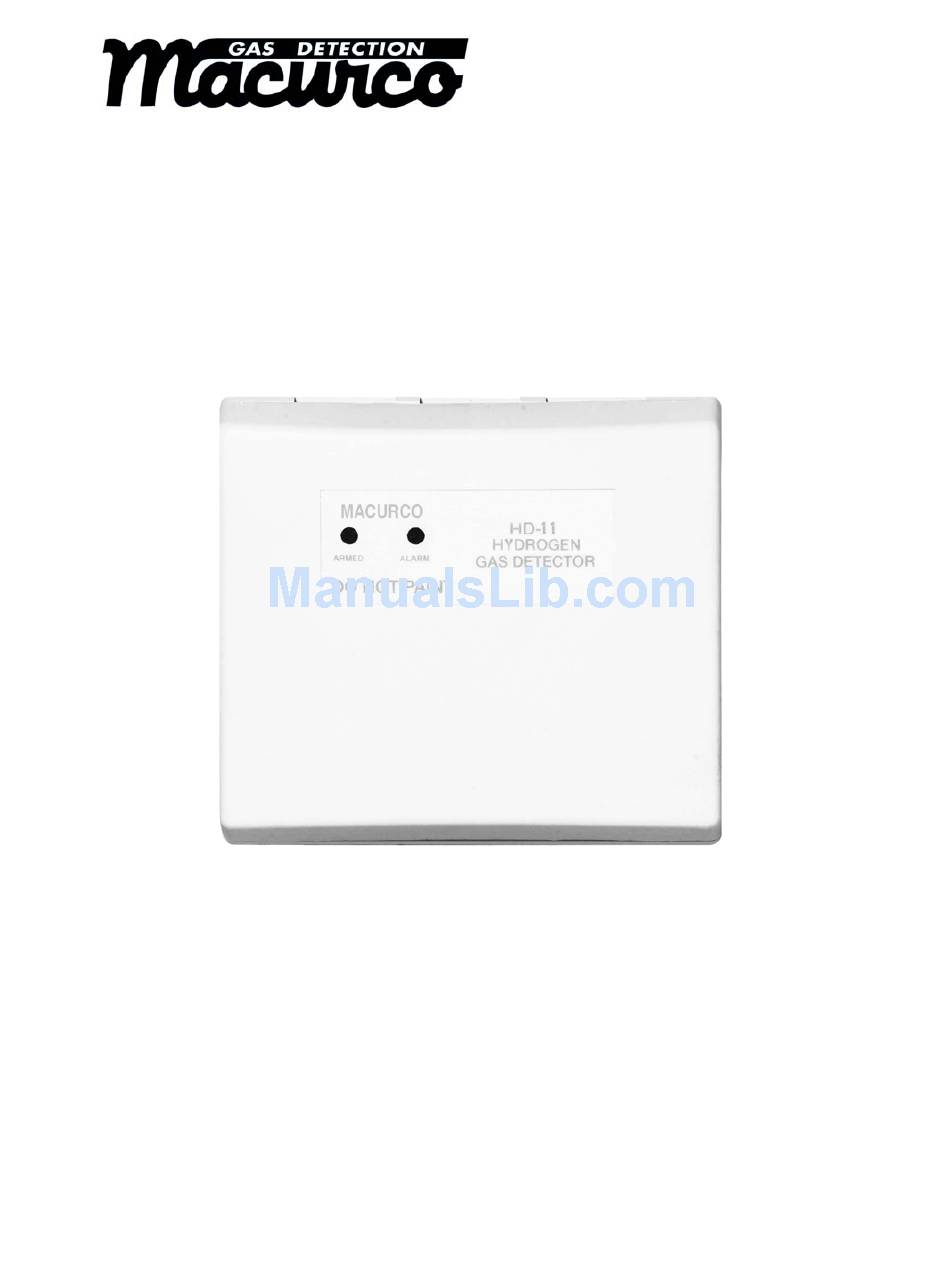

- Page 1 Macurco HD-11 Hydrogen Gas Detector ™ User Instructions Important: Keep these User Instructions for reference...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL SAFETY INFORMATION Intended Use List of Warnings and Cautions USE INSTRUCTIONS AND LIMITATIONS Use For Do Not Use For General Description Features Specifications INSTALLATION AND OPERATION INSTRUCTIONS Location Installation Power Up Operation Alarms Trouble Indicator MAINTENANCE Testing Cleaning Sensor Poisons... -
Page 3: General Safety Information
The HD-11 is designed for connection to alarm control panels. Alarm control panels that work on 12 or 24 VDC can provide battery backup to the HD-11. This gas detector is NOT designed to detect smoke, fire or carbon monoxide. -
Page 4: Use Instructions And Limitations
The HD-11 is NOT designed to detect smoke, fire or carbon monoxide. Do NOT mount the HD-11 in a corner. ! WARNING HD-11 may not function effectively below 32 F or above 120F. Using the detector outside of this temperature range may adversely affect product performance and result in sickness or death. GENERAL DESCRIPTION The Macurco Hydrogen Gas Detector HD-11 is a low voltage (12-24VAC or VDC) electronic detector of hydrogen gas. -
Page 5: Location
! WARNING This product is intended for use in ordinary indoor locations of family living units and office workspaces. The HD-11 is not designed to measure compliance with Occupational Safety and Health Administration (OSHA) commercial or industrial standards. -
Page 6: Power Up
6. The HD-11 uses a full wave bridge rectifier at its power input, so that it is independent of the polarity of the input power. It can operate on DC or AC voltages between 12 and 24 volts. 7. A switching regulator is used to efficiently match the wide input voltage range to the fixed, internal power system. -
Page 7: Alarms
Accommodation spaces should be well ventilated when household cleaning supplies or similar contaminants are used. In addition to the hydrogen gas that it is designed to detect, the HD-11 can also be affected by a broad range of combustible gases. Some of these that may cause an alarm are: alcohol, ammonia, cleaning solvents, paint thinner, gasoline vapors, and aerosol propellants. -
Page 8: Sensor Poisons
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE ARE LIMITED TO A PERIOD OF TWO (2) YEARS. Macurco shall not be liable for any incidental or consequential damages for breach of this or any other warranty express or implied arising out of or related to the use of said equipment. Manufacturer or its agent’s liability shall be limited to replacement or repair as set forth above.
