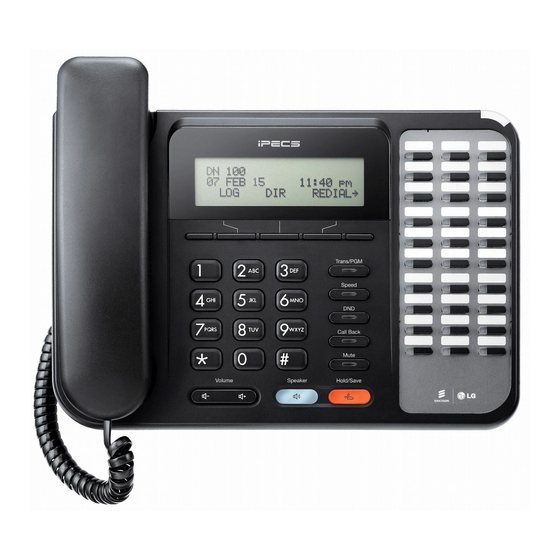

Ericsson-LG iPECS LDP-9030D
Handset User Guide
LDP-9030D Button Layout
1. LCD Screen
4.
10. Volume
Dealing with calls
Answering an Incoming Call
Making an External Call
Making an Internal Call
Rejecting a Call
Call Pick Up
Call Forwarding
Placing a call on hold
2. Soft Buttons 3. Flexible ('Flex') buttons
4.
5.
6.
7.
8.
9.
12. Hold/Save
11. Speaker
Lift the handset and press the flashing flex button (as needed)
Press a free Loop/Line flex button or the 9 button to pick up an outside line. Once you have the
outside line, dial your number.
Lift the handset. Dial the extension number or press the flex button assigned to the contact.
Press the DND button when a call comes in - the caller will get a fast busy tone.
Lift the handset and dial ** to pick up any handset in your group, if it is not in your group dial 7 and
then the intercom number of the ringing handset.
Press the Hold/Save button. To reconnect the call, press the green flashing Loop/Line flex button.
Your Communications Solution
Button Guide
1. LCD Screen: phone interface for status,
dialing directories, and message information.
2. Soft Buttons: these buttons are interactive
and have a changing function based on the
phone's status
3. Flex Buttons: a line or feature can be
assigned to these buttons.
Page: scroll through the soft button functions
4.
on the LCD screen
5. Transfer: transfer the current active call or
access the PGM (program) menu while the
phone is idle.
6. Speed: assign or use assigned speed dial
numbers.
7. DND (Do-Not-Disturb): blocks incoming
calls. You can also activate Do-Not-Disturb
while the phone is ringing.
8. Call back: initiate a call back request to a
busy station. Once that station becomes idle,
the initiating station is signaled.
9. Mute: mute the call so that the caller cannot
hear your voice.
10. Volume control: adjust the Ring, Headset,
Handset, and Speaker volume.
11. Speakerphone: toggle the speakerphone
On and Off during a call. The button will
automatically illuminate when the phone is in
menu mode.
12. Hold/Save: place a call on hold or use to save
information when programming.
