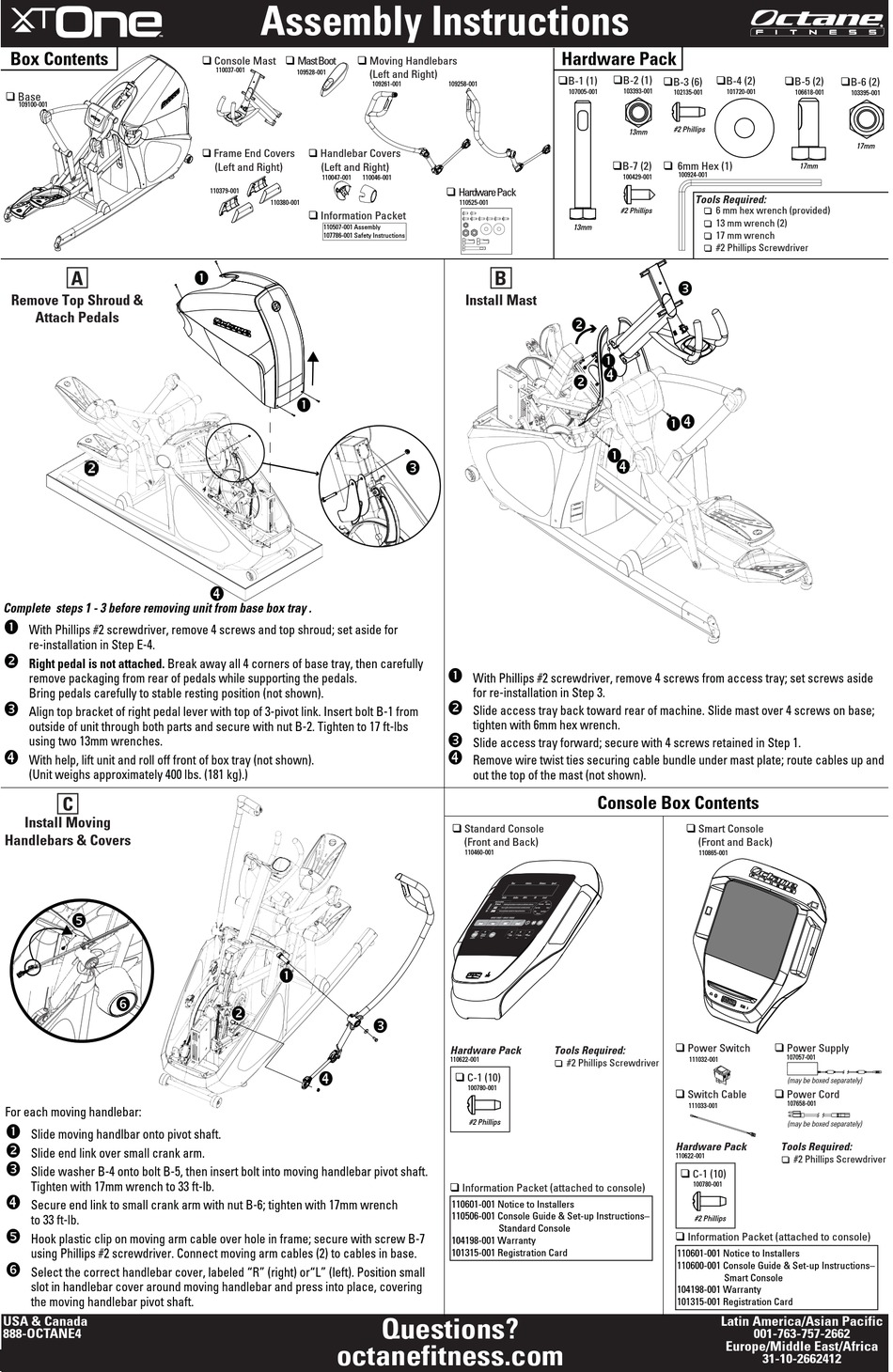

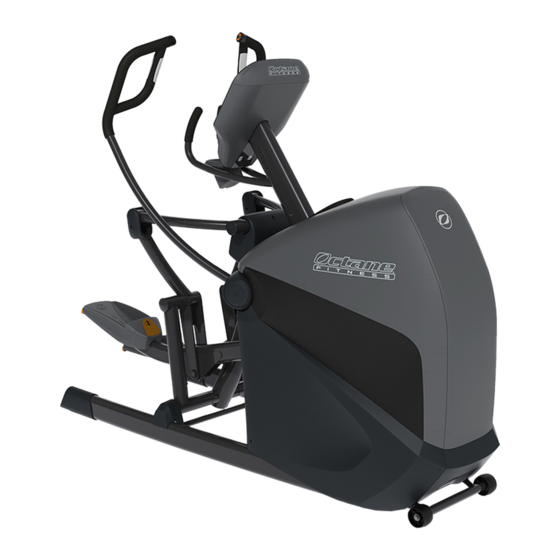

Octane Fitness XT One Assembly Instructions

Box Contents

Base

109100-001
A
Remove Top Shroud &
Attach Pedals
Complete steps 1 - 3 before removing unit from base box tray .

With Phillips #2 screwdriver, remove 4 screws and top shroud; set aside for
re-installation in Step E-4.

Right pedal is not attached. Break away all 4 corners of base tray, then carefully
remove packaging from rear of pedals while supporting the pedals.
Bring pedals carefully to stable resting position (not shown).

Align top bracket of right pedal lever with top of 3-pivot link. Insert bolt B-1 from
outside of unit through both parts and secure with nut B-2. Tighten to 17 ft-lbs
using two 13mm wrenches.

With help, lift unit and roll off front of box tray (not shown).
(Unit weighs approximately 400 lbs. (181 kg).)
C
Install Moving
Handlebars & Covers


For each moving handlebar:

Slide moving handlbar onto pivot shaft.

Slide end link over small crank arm.

Slide washer B-4 onto bolt B-5, then insert bolt into moving handlebar pivot shaft.
Tighten with 17mm wrench to 33 ft-lb.

Secure end link to small crank arm with nut B-6; tighten with 17mm wrench
to 33 ft-lb.

Hook plastic clip on moving arm cable over hole in frame; secure with screw B-7
using Phillips #2 screwdriver. Connect moving arm cables (2) to cables in base.

Select the correct handlebar cover, labeled "R" (right) or"L" (left). Position small
slot in handlebar cover around moving handlebar and press into place, covering
the moving handlebar pivot shaft.
USA & Canada
888-OCTANE4
110507-001 REV D Page 1/2
©2015 Octane Fitness. All rights reserved.
Assembly Instructions
Console Mast Mast Boot
  
110037-001
109528-001
Frame End Covers Handlebar Covers
(Left and Right) (Left and Right)
110047-001
110379-001
110380-001
Information Packet

110507-001 Assembly
107786-001 Safety Instructions






octanefitness.com
Moving Handlebars
(Left and Right)
109261-001 109258-001
110046-001
Hardware Pack

110525-001
B

Install Mast



With Phillips #2 screwdriver, remove 4 screws from access tray; set screws aside
for re-installation in Step 3.

Slide access tray back toward rear of machine. Slide mast over 4 screws on base;
tighten with 6mm hex wrench.

Slide access tray forward; secure with 4 screws retained in Step 1.

Remove wire twist ties securing cable bundle under mast plate; route cables up and
out the top of the mast (not shown).
Standard Console

(Front and Back)
110460-001

Hardware Pack
110622-001
C-1 (10)

100780-001
#2 Phillips
Information Packet (attached to console)

110601-001 Notice to Installers
110506-001 Console Guide & Set-up Instructions–
Standard Console
104198-001 Warranty
101315-001 Registration Card
Questions?
Hardware Pack
B -2 (1)
B -1 (1)
 B -3 (6)
  
103393-001
107005-001
102135-001
#2 Phillips
13mm
B -7 (2) 6mm Hex (1)
 
100924-001
100429-001
Tools Required:
6 mm hex wrench (provided)
#2 Phillips 
13 mm wrench (2)

13mm
17 mm wrench

#2 Phillips Screwdriver











Console Box Contents

Smart Console

(Front and Back)
110865-001
Power Switch
Tools Required: 
111032-001
#2 Phillips Screwdriver

Switch Cable

111033-001
Hardware Pack
110622-001
C-1 (10)

100780-001
#2 Phillips
Information Packet (attached to console)

110601-001 Notice to Installers
110600-001 Console Guide & Set-up Instructions–
104198-001 Warranty
101315-001 Registration Card
Latin America/Asian Pacific
B -4 (2) B -5 (2)
B -6 (2)


101720-001
106618-001 103395-001
17mm
17mm
Power Supply

107057-001
(may be boxed separately)
Power Cord

107658-001
(may be boxed separately)
Tools Required:
#2 Phillips Screwdriver

Smart Console
001-763-757-2662
Europe/Middle East/Africa
31-10-2662412
