Nonin Avant 9600 Quick Manual

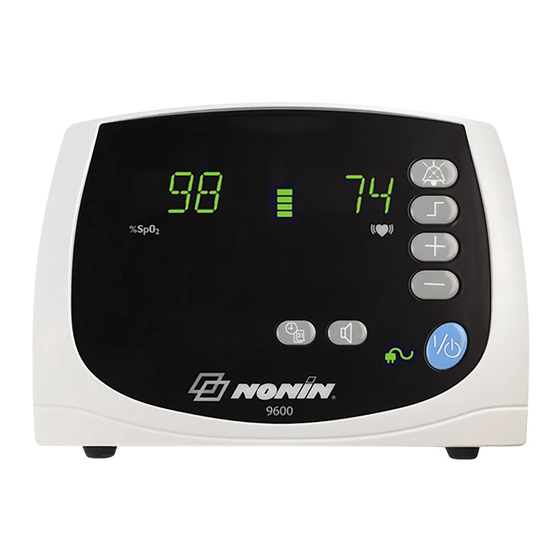

Avant 9600 SpO Pulse Oximeter
®
2
DEFAULT ALARM LIMITS and TIME/DATE
Default Alarm Limits are preset on the Avant 9600 oximeter, which may be
adjusted prior to use. Default limits are:
High SpO – Off High Pulse Rate – 200 BPM
2
Low SpO – 85% Low Pulse Rate – 50 BPM
2
Caution: Always verify alarm settings when turning on the unit.
To set Time, Date and Alarm Limits in standard mode, turn the oximeter on
and follow these steps:
Press the Limits Button.
Use the + and – buttons to move the value up or down.
Press Limits again to set the value and move to the next setting.
You can also use the Limits button to review current settings by pressing
through each value. You will then see and reset that value with each press.
Patient Security Mode locks Limits, Time, Date and other values. See the
Operator's Manual for instructions on Setting and Releasing Patient Security
Mode if in use.
www.medicaldevicedepot.com
ThIs guIde Is for refereNce oNLY. refer to the operator's Manual for complete
information, warnings, cautions and specifications for the product you are using.
1-877-646-3300
Avant
SpO Pulse Oximeter
2
Use oNly with compatible Nonin-branded pulse oximeter sensors.
1. Select the proper size Nonin-branded sensor. Place sensor on patient
prior to connecting to the oximeter.
2. Connect Avant 9600 oximeter to wall power, or check battery level
prior to use. Recharge if required. Oximeter runs at least 12 hours on a
full battery.
3. Insert the sensor connector into the
sensor port on left side of the oximeter.
4. Turn the oximeter on with the On/Off
button.
through a self-check, then begin displaying
oxygen saturation (SpO
Do not use oximeter if any display
segments are missing, or displays do
Inc.
not appear as expected. Refer to the
Operator's Manual for instructions.
Alarms are disabled for two minutes
to allow time for sensor placement
and adjustment.
9600
®
The oximeter will go
3
) and pulse rate.
2
4
quick guide
SpO Pulse
2
Rate
