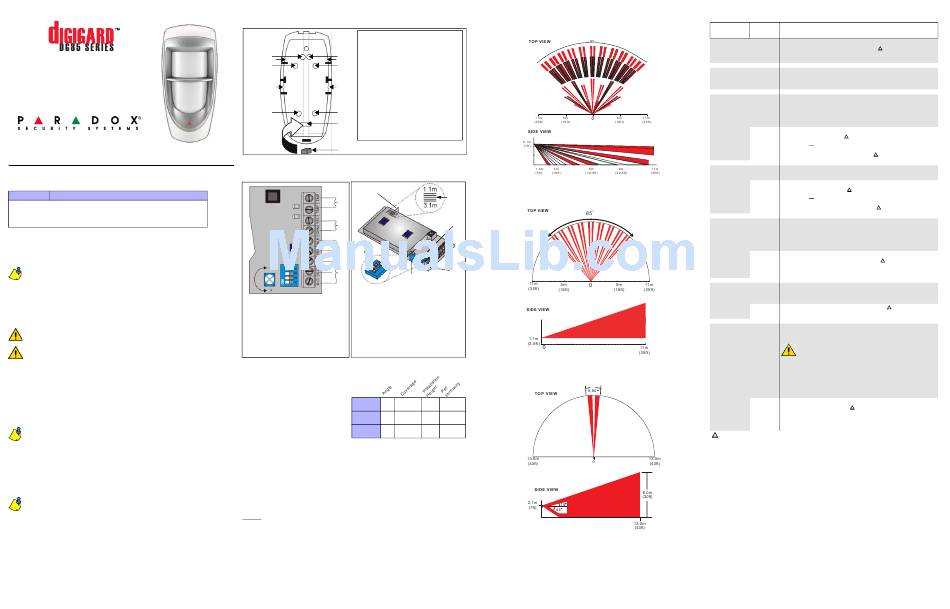

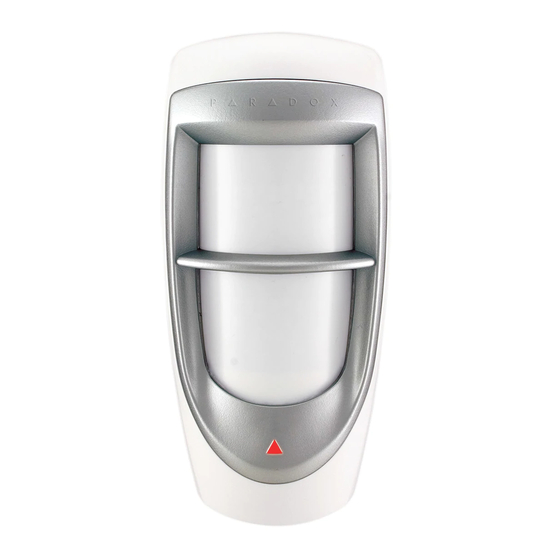

Paradox DG85W Instructions

Outdoor Digital Dual-Optic High-
Performance PIR V1.3
Instructions
Instrucciones
Printed in China - 10/2007 paradox.com DG85-TI06
English

Beam Patterns

The DG85 series features the following beam patterns:
Detector Beam Pattern
DG85W Pet Array beam pattern (see figure 3)
DG85L1 Horizontal Curtain beam pattern (see figure 4)
DG85L2 Vertical Curtain beam pattern (see figure 5)

Installation

After selecting the detector's location, drill or punch out holes for the wiring and
mounting screws as shown in Figure 1.
Avoid placing the detector within proximity of sources of interference such as direct
sunlight, reflective surfaces and movng cars.
The DG85 can also be mounted using the Paradox Swivel Mount Bracket (469).
The swivel mount may allow for easier mounting. If using the swivel mount, it is
recommended that you seal the space where the swivel mount is connected to
the back cover with some silicon or with a rubber gasket to ensure that moisture
does not enter the detector.
After you have installed the detector, ensure that the adjustable height markings on the
upper right of the PCB's cover inside the unit match the installation height (see Figure
2). Any PCB adjustments should be followed by a walk-test to verify detector
coverage.
Do not touch the sensor surface as this could result in a detector malfunction.
If necessary, clean the sensor surface using a soft cloth with pure alcohol.
Ensure that the unit's front and back cover are tightly joined together without
any spacing (around the rim of the unit) before tightening the screw, otherwise
the weatherproof casing may be compromised and moisture may enter the
unit.

Operational Modes

The DG85 can function in two different operational modes: combus mode or relay
mode. This option can only be configured using DIP switch 1.
Relay Mode: (DIP switch 1 = OFF)
When set to Relay Mode, the DG85 functions as would any standard motion
detector by communicating its alarm and tamper signals via relays. The GRN
and YEL terminals are not used in relay mode.
In Relay Mode, the detector's settings can only be modified using the DIP
switches and trimpot (see figure 2).
Combus Mode: (DIP switch 1 = ON)
When set to combus mode, the DG85 communicates alarm signals, tamper
signals, data and detector settings via the panel's 4-wire combus.
The detector's relay output always remains active even when set to combus
mode and can be used to activate other devices.
In combus mode, the motion detector can be modified using the DIP switches
and trimpot or by entering module programming mode.
In combus mode, the DG85 will respect the most recent modification whether it
is made through the DIP switches and trimpot or through section programming.
As a result, current DIP switch and trimpot positions may not represent actual
settings. All settings are stored in the DG85 even after it has been powered
down.
Figure / Figura 1
Installation / Instalación
A
-Corner mount
-Montaje en esquina
-Montage en coin
B
-Flat surface mount
C C
A A -Montaje superficie plana
B B -Support pivotant
C -Swivel mount bracket
-Soporte de montaje giratorio
-Support pivotant
A A
D
-Wire entry
-Entrada de cableado
-Entrée de fils
B B
E
-Insert foam protection into wire entry
-Insertar la espuma de protección en entrada
D
de cableado
-Insérer de la mousse protectrice à l'entrée }
des fils
E
Figure / Figura 2
PCB Connection and Setup / Conexión y Configuración de la PCI / Connexion et
configuration de la carte de circuits imprimés
E
A
B
C I
D
G
C -Power input E -Align height with tab G -Trimpot
A -Anti-tamper switch
(+12Vdc) -Alinear altura con -Potenciómetro
-Interrupt.
-Alimentación lengüeta -Potentiomètre
antisabotaje
(+12Vcc) -Aligner la hauteur
-Interrupteur de
avec la languette H -Electrical connectors
-alimentation
sécurité
(+12 Vc.c.) -Conectores eléctricos
F -Detect LED -Bornes de
B -To Combus
D -Alarm relay -LED de detección raccordement
Combus mode only)
-DEL de détection
-Relé de alarma
-Al Combus (modo
-Relais d'alarme I -DIP switch
DGP solamente)
-Interruptor DIP
-Au Combus mode
-Commutateur DIP
DGP seulement)
Technical Specifications
Protection Level: I P45
Sensor type: Dual Element Infrared X 2
RFI / EMI rejection: 10V/m
Sensor geometry: Rectangular
Voltage input: 9 to 16Vdc
11m x 11m
DG85W 90°
Current consumption: 30mA Maximum
(35ft x 35ft)
Anti-tamper switch: 150mA/28Vdc, N.C
DG85L1 11m x 11m
Lens: 2nd generation
85°
(Horizontal) (35ft x 35ft)
Fresnel lens,
LODIFF®, segments DG85L2 13m (43ft)
5.64°
Alarm output: Form A relay
(Vertical) x 2 beams
100mA28Vdc, N.C. or
optional form C relay 5A/
28Vdc, N.C./N.O.
Detection speed: 0.2m/s to 3.5m/s (0.6ft/s to 11.5ft/s) Ingress
Operating temperature:-35°C to +50°C (-31°F to +122°F)
© 2007 Paradox Security Systems Ltd. All rights reserved. Specifications may change without prior notice.
One or more of the following US patents may apply: 7046142, 6215399, 6111256, 6104319, 5920259,
5886632, 5721542, 5287111, 5119069, 5077549 and RE39406 and other pending patents may apply.
Canadian and international patents may also apply. LODIFF® lens: patent #4,787,722 (U.S.).
Digigard is a trademark or registered trademark of Paradox Security Systems Ltd. or its affiliates in Canada,
the United States and/or other countries.
LODIFF® is a registered trademark of Fresnel Technologies Inc.
Warranty: For complete warranty information on this product please refer to the Limited Warranty Statement
found on the website www.paradox.com/terms. Your use of the Paradox product signifies your acceptance
of all warranty terms and conditions.
Figure / Figura 3
DG85W Pet Array Beam Pattern / Modelo Inmune a Mascotas Estandar DG85W /
Diagramme de lentilles Couloir pour animaux DG85W
Figure / Figura 4
2,1m
DG85L1 Horizontal Curtain Beam Pattern / Modelo Pasaje de Mascotas DG85L1 /
(7ft)
Diagramme de lentilles Rideau horizontal DG85L1
F
H
Figure / Figura 5
DG85L2 Vertical Curtain Beam Pattern/ Modelo Cortina Vertical DG85L2 /
Diagramme de lentilles Rideau vertical DG85L2
2.1m 40kg
(7ft) (90lbs)
1.1m Multi/large
(3.6ft) pet
2.1m
N/A
(7ft)

Detector Settings

Section /
Step Details
DIP
1 DIP switch 1 ON =Combus mode (go to step 2)
DIP
DIP switch 1 OFF =Relay mode (go to step 3)
Operational
Switch 1
Mode
Enter detector programming mode.
2 Press and hold [0] + [ ] + [4003]
INSTALLER CODE
[953] (DGP-848) + SN (located on PCB cover).
Single edge processing should be used in normal
environments with minimal sources of interference. Dual
Edge Processing provides better false alarm rejection if the
3 detector is placed near sources of interference that can
adversely affect it.
Signal
Processing [001] [1] OFF =Dual edge
Mode [1] ON =Single edge
or
or
DIP
DIP switch 2 OFF =Dual edge
Switch 2 DIP switch 2 ON =Single edge
LED flash = Movement without alarm (see step 5)
LED on 5 sec. = Movement with alarm
4
[001] [2] OFF =LED disabled
LED [2] ON =LED enabled
or
Settings or
DIP
DIP switch 3 OFF =LED disabled
Switch 3 DIP switch 3 ON =LED enabled
When enabled and a signal is detected that matches the
characteristics of a movement signal, but does not reach
the required energy levels for an alarm, the LED flashes
5
once, indicating the signal was kept in memory.
Movement
Note: The LED must be enabled. (see step 4)
Signal
[3] OFF =Movement signal disabled
Indication
[3] ON =Movement signal enabled
[001]
Note: In relay mode, this feature is enabled if
DIP switch 3 = ON.
When enabled and the anti-tamper switch is open (cover
6
removed), the detector sends a tamper message to the
control panel via the combus.
Tamper
Recognition
[5] OFF =Tamper recognition disabled
[001]
[5] ON =Tamper recognition enabled
The DG85 features adjustable sensitivity. Adjust from 0
(lowest sensitivity) to 10 (highest sensitivity).
Depending on the sensitivity setting, an alarm
condition can be generated between 0.25 sec.
(highest) and 2 sec. (lowest) after the actual
movement.
Viewing Sensitivity Settings
7
Remove the cover to view how many times the LED
Sensitivity flashes, then adjust the setting accordingly. The LED
flashes a consecutive amount of times to show the setting.
Thus if the sensitivity is set to 6, the LED flashes 6 times.
000 =Lowest sensitivity
[002]
010 =Highest sensitivity
or
Turn clockwise =Increase sensitivity
Trimpot
Turn counterclockwise =Decrease sensitivity
= default settings
Walk-testing
At 20°C (68°F), at the highest sensitivity setting and in Single Edge Processing mode,
you should not be able to cross more than one complete zone (consisting of 2 beams,
left and right sensor detecting elements) in the coverage area with any kind of
movement; slow/fast walking or running.
At the lowest sensitivity setting, the amount of movement required to generate an
alarm is doubled. The approximate width of a full beam at 11m (35ft) from the detector
is 1.8m (6ft). To walk-test, move across the detection path, not toward the detector.
(EVO) or
