Moxa Technologies MGate 4101-MB-PBS Quick Installation Manual

MGate 4101-MB-PBS

Quick Installation Guide

Fifth Edition, October 2014

Overview

The MGate™ 4101-MB-PBS and 4101I-MB-PBS are 1-port Modbus
serial to PROFIBUS slave gateways that provide protocol
conversion for users who need to connect Modbus devices to
Siemens PLCs.

Package Checklist

Before installing the MGate 4101-MB-PBS or 4101I-MB-PBS, verify
that the package contains the following items:
• 1 MGate 4101-MB-PBS or 4101I-MB-PBS Modbus to PROFIBUS
slave gateway
• RJ45 to DB9 cable (for use with the console)
• Documentation & Software CD
• Quick Installation Guide
• Product Warranty Statement

Optional Accessories

• DR-4524: 45W/2A DIN rail 24 VDC power supply with
universal 85 to 264 VAC input
• DR-75-24: 75W/3.2A DIN rail 24 VDC power supply with
universal 85 to 264 VAC input
DR-120-24: 120W/5A DIN rail 24 VDC power supply with 88
•
to 132 VAC/176 to 264 VAC input by switch
• WK-36-02: Wall mounting kit
• Mini DB9F-to-TB Adaptor: DB9 female to terminal block
adapter
Please notify your sales representative if any of the above items
are missing or damaged.
P/N: 1802041010014
– 1 –

Hardware Introduction

LED Indicators

LED Color Function
Green Power is on
PWR1
Off Power is off
Green Power is on
PWR2
Off Power is off
Green Gateway is operational
Check Configuration failed or Set
Ready Red
Parameter failed
Off Power is off or fault condition exists
Green Serial device is transmitting data
P1 TX/RX Orange Serial device is receiving data
(Modbus Serial)
No data is flowing to or from the
Off
serial port
Steady: Gateway is waiting for data
Green exchange
Blinking: Data is exchanging
P2 Status
Steady: Configuration error
(PROFIBUS) Orange
Blinking: Error in Parameter data
PROFIBUS offline or Slave ID is
Off
incorrect
The MGate 4101-MB-PBS and 4101I-MB-PBS both come with an
RJ45 to DB9 cable for connecting to a serial console.

Reset Button

The reset button is used to load factory defaults. Use a pointed
object such as a straightened paper clip to hold the reset button
down for five seconds. Release the reset button when the Ready
LED stops blinking.
– 2 –

Pull-high, Pull-low, and Terminator for RS-485

Remove the MGate 4101-MB-PBS's top cover to adjust the DIP
switches for each serial port's pull-high resistor, pull-low resistor,
and terminator.
1
SW
Pull-high Pull-low
resistor resistor
ON 1 kΩ 1 kΩ
OFF 150 kΩ* 150 kΩ*
*Default

Hardware Installation Procedure

STEP 1: Connect the power adapter. Connect the 12-48 VDC
power line with the MGate 4101-MB-PBS/4101I-MB-PBS
series' terminal block, or connect the DIN rail power
supply with the MGate 4101-MB-PBS/4101I-MB-PBS
device's terminal block.
STEP 2: Use a PROFIBUS cable to connect the unit to a PROFIBUS
PLC or other PROFIBUS master.
STEP 3: Connect your device to the unit's serial port.

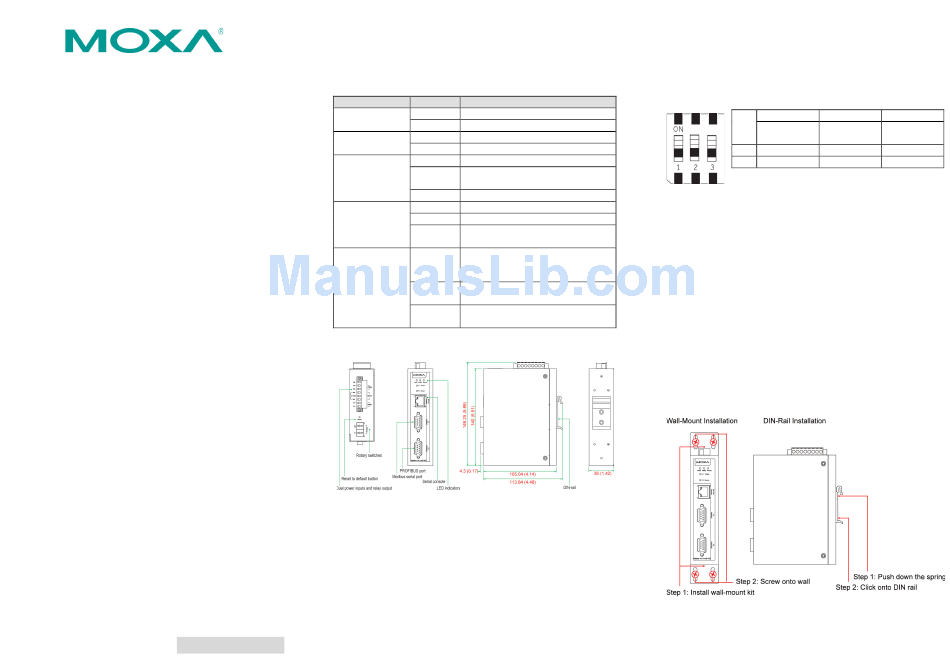

STEP 4: Attach the device to a DIN rail or the wall. The MGate
4101-MB-PBS/4101I-MB-PBS series is designed to be
attached to a DIN rail or mounted on a wall. For DIN rail
mounting, push down the spring and properly attach it to
the DIN rail until it snaps into place. For wall mounting,
install the wall mount kit (optional) first, and then screw
the device onto the wall. The following figure illustrates
the two mounting options:
– 3 –
2 3
Terminator
120 Ω
–*
