Adastra BC3 User Manual

BC-SERIES

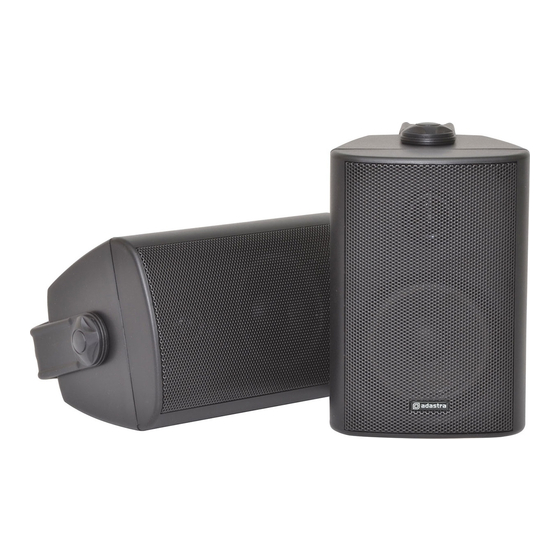

Indoor Speakers
BC3 75mm (3"), 60Wmax
BC4 100mm (4"), 70Wmax
BC5 130mm (5.25"), 90Wmax
BC6 165mm (6.5"), 120Wmax
BC8 200mm (8"), 180Wmax

Introduction

Thank you for choosing the BC-series indoor speakers. These speakers have been designed to offer high
quality sound for low impedance installations. Please read and follow the instructions in this manual to
achieve the best results and avoid damage through misuse.

Installation

The BC-series speakers are each supplied with a wall-mounting bracket which
allows 90° lateral adjustment. When fixing to a wall or ceiling, use the bracket to
mark out the fixing points and use appropriate fixings for the substrate that the
speaker will be attached to, ensuring that the fixing is strong enough to bear the weight.
Once the bracket is fitted, support the speaker in position and attach top and bottom using the supplied
screw caps and adjust to the required angle. Further mounting points are available at the rear of the
speaker, should it be preferred to use different mounting methods (e.g. 129.130 – 129.124UK)
White - pair
Black - pair
White - pair
Black - pair
White - pair
Black - pair
White - pair
Black - pair
White - pair
Black - pair
User Manual
100.898
100.899
100.901
100.902
100.904
100.905
100.907
100.908
100.910
100.911
