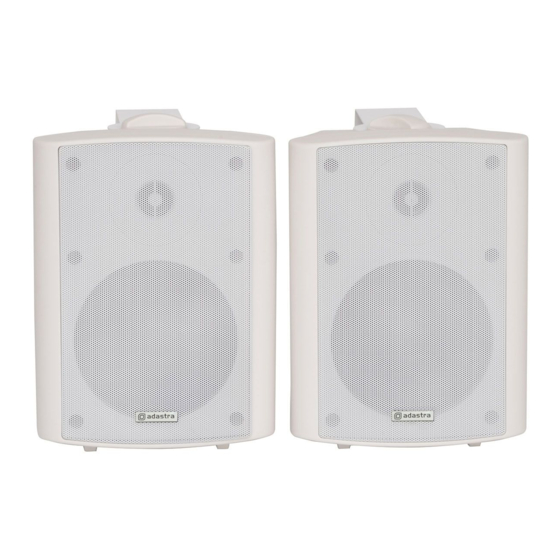

BC5A
ACTIVE STEREO SPEAKER SET
Order ref: 170.165UK, 170.166UK
User Manual
• Active + satellite stereo pair
• Supplied with adjustable wall brackets
• Supplied with satellite link cable
• RCA or 3.5mm stereo inputs
Version 1.1
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Adastra 170.165UK
Summary of Contents for Adastra 170.165UK
- Page 1 BC5A ACTIVE STEREO SPEAKER SET Order ref: 170.165UK, 170.166UK User Manual • Active + satellite stereo pair • Supplied with adjustable wall brackets • Supplied with satellite link cable • RCA or 3.5mm stereo inputs Version 1.1 Caution: Please read this manual carefully before operating...
- Page 2 Introduction Thank you for choosing the BC-series active speaker set. Please read this manual prior to use to avoid damage to the item. These compact, self-contained stereo speaker sets are designed to deliver high quality near-field or perimeter coverage for various monitoring and installed sound applications. Contents Please take care when unpacking this product.
- Page 3 Panel layout Fuse holder Mains inlet (Fig.8) Power on/off switch Rotary VOLUME control Satellite speaker output Stereo/mono switch Rotary TREBLE tone control 3.5mm stereo line input L+R RCA line input Rotary BASS tone control Setting up For near-field or desktop use, space speakers apart for adequate stereo separation depending on proximity to the listener.
- Page 4 Specifications Power supply 230Vac, 50Hz (fig 8) Woofer 133mmØ (5.25") PP cone Tweeter 25mm balanced dome Power output max 2 x 30W Controls Volume, Treble, Bass, Stereo/Mono, Power on/off Input connections 3.5mm stereo and L+R RCA Frequency response 100Hz - 20kHz Dispersion 150°...
