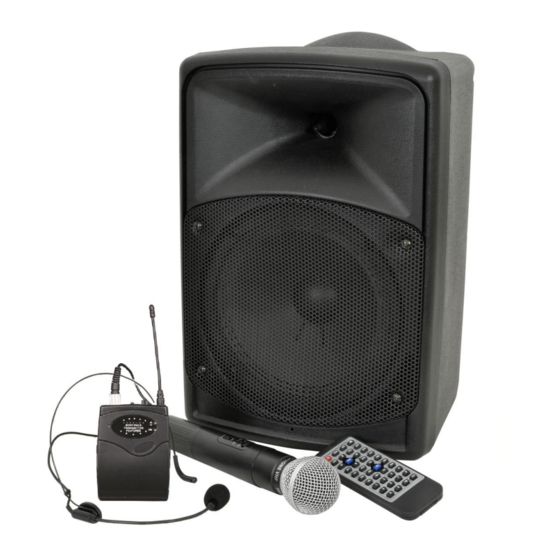

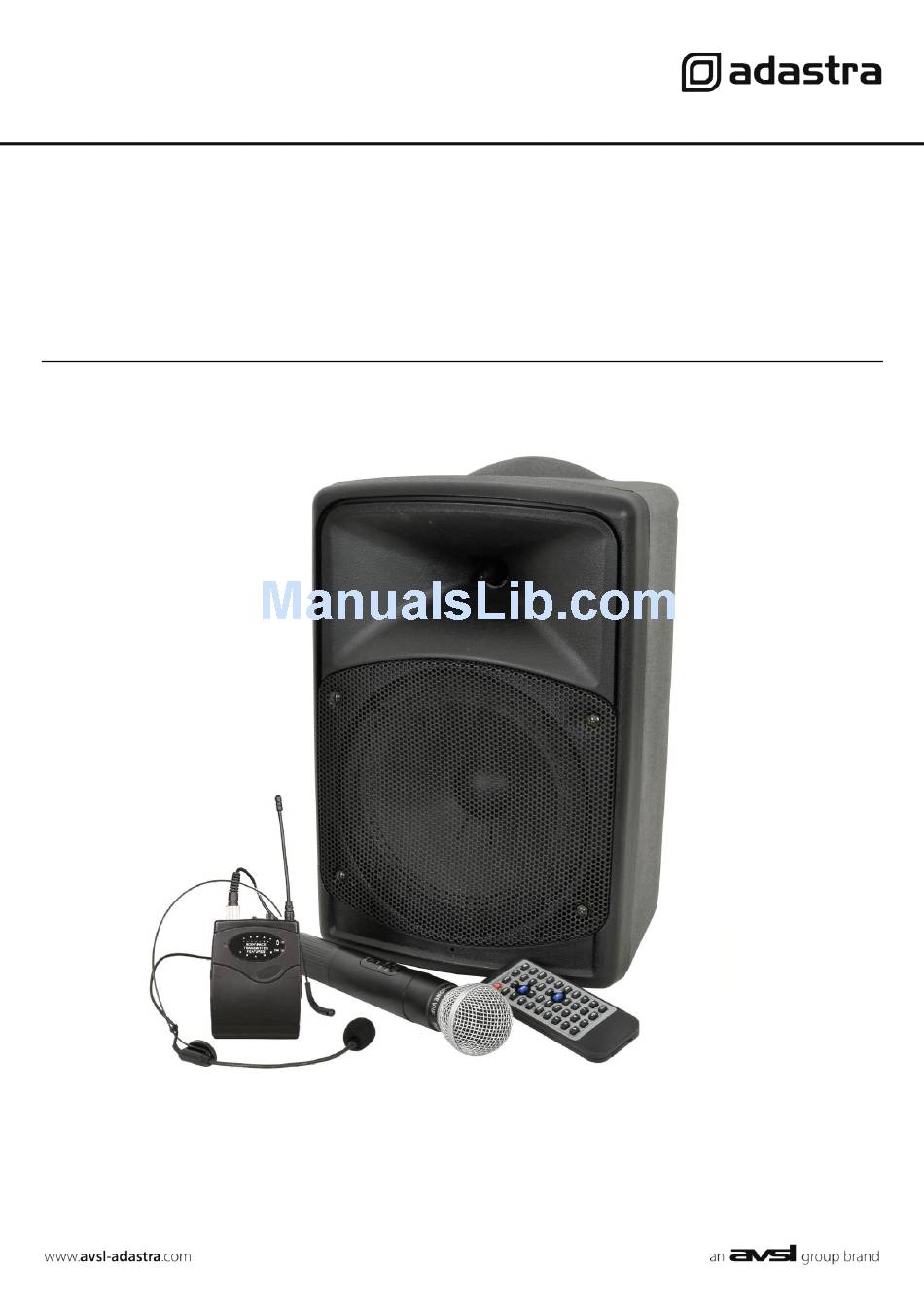

- Page 1 PAV8 Portable PA unit Item ref: 952.408UK User Manual...
-
Page 2: Package Contents
Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing the PAV8 PA unit. This compact unit is provided with a comprehensive array of features to enable it to function in many different sound reinforcement and audio-visual applications. Please read the following to achieve the best results from your new PAV8 product. - Page 3 When the battery has achieved full charge, the “FULL” LED (16) will light. Please note: The internal battery may lose charge over long periods. If the PAV8 is not used for 2 months or longer, connect the supplied 15Vdc power adaptor to the mains to charge the battery.
- Page 4 When not in use, switch the wireless microphones off. External Inputs In addition to the PAV8’s own VHF microphones, a 6.3mm jack input (15) is provided to connect an external wired or wireless microphone, again governed by the MIC VOL control (9).
- Page 5 (6, 8) and press the MODE button (14) to step through disc, USB, SD or FM player. The PAV8 can play different compressed media files, which can be selected by pressing the SHIFT button (15) Playback from disc, USB or SD card can be activated by the Play/Pause button (9) and tracks are navigated using the Reverse/Previous button (11) and Forward/Next buttons (13).
- Page 6 Track number +10 button When using the PAV8 connected to a TV or video monitor via the composite VIDEO OUT RCA (12), the supplied IR remote control can be used to access on-screen controls. This can also operate some of the audio controls without the help of on-screen display.
-
Page 7: Specifications
10+ button first to jump up in steps of 10. When not in use, switch off the PAV8 by the POWER switch and leave the power adaptor connected to the mains to re-charge the battery. This can be disconnected if the FULL charge indicator is lit. -
Page 8: Troubleshooting
Troubleshooting Check POWER switch is on Check battery is not drained fully No output and no LEDs lit Check mains adaptor is connected when battery is drained Ensure only 15Vdc adaptor (supplied) is used for mains power and charging Check 9V batteries in wireless transmitters Check wireless transmitters are switched on Power LED lit but no VHF output...
