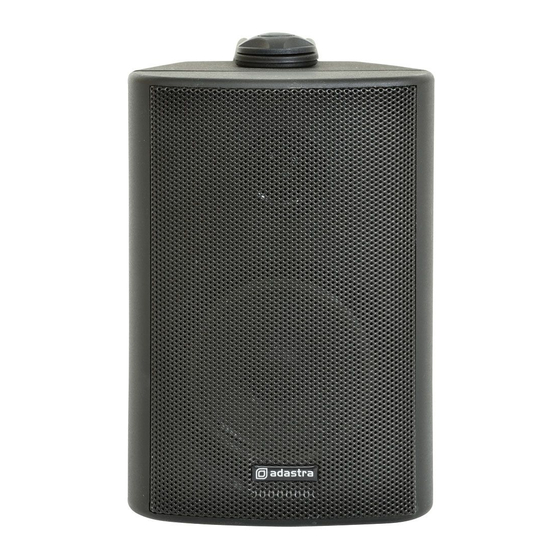

Adastra BP3V User Manual

BPV-SERIES
100V Outdoor Speakers
BP3V 75mm (3"), 60Wmax
BP4V 100mm (4"), 70Wmax
BP5V 130mm (5.25"), 90Wmax
BP6V 165mm (6.5"), 120Wmax

Introduction

Thank you for choosing the BPV-series outdoor speakers. These weatherproof speakers have been
designed to offer high quality sound for 100V line or low impedance installations. Please read and follow
the instructions in this manual to achieve the best results and avoid damage through misuse.

Installation

The BPV-series speakers are each supplied with a wall-mounting bracket which
allows 90° lateral adjustment. When fixing to a wall or ceiling, use the bracket to
mark out the fixing points and use appropriate fixings for the substrate that the
speaker will be attached to, ensuring that the fixing is strong enough to bear the
weight load.
Once the bracket is fitted, support the speaker in position and attach top and bottom using the supplied
M6 screw caps and adjust to the required angle. Further M6 mounting points are available at the rear of
the speaker, should it be preferred to use different mounting methods (e.g. 129.130 – 129.124UK)
White
Black
White
Black
White
Black
White
Black
User Manual
952.810
952.811
952.812
952.813
952.814
952.815
952.816
952.817
