Adastra BG5A User Manual

BG5A
ACTIVE STEREO SPEAKER SET
Item ref: 170.161UK
User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Introduction

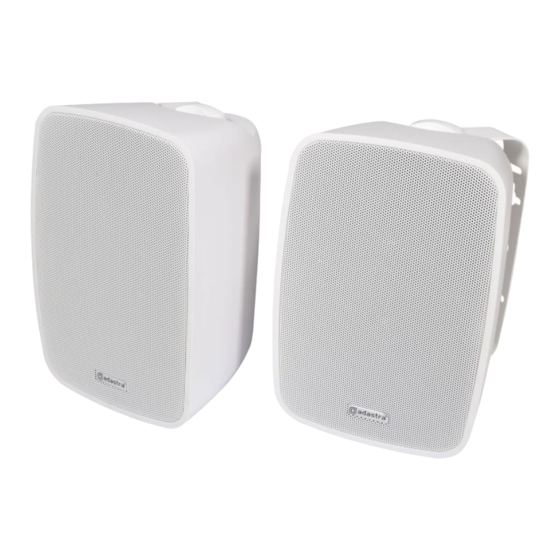

The BG5A stereo speaker set comprises a powered speaker with inbuilt amplifier and a satellite speaker to
provide full range stereo output from any line level audio source.
Connection and setup
Both active and passive speaker units are supplied with a wall mounting
bracket and may be fixed vertically or horizontally as required. Ensure that
wall fixings are sufficient to hold the weight of each unit and add a safety
wire if mounting overhead where a falling speaker could be hazardous.
A speaker wire is provided to link the main active speaker output (6) to
the satellite speaker "+" and "-" terminals.
Ensure that the power switch (1) is set to OFF. Power is provided by an
included 12Vdc in-line power adaptor, which should be connected to a
mains outlet using the supplied fig.8 mains lead (or equivalent) and the
DC plug connected to the DC input on the main active speaker (2)
Connect the line level audio input to either the 3.5mm socket (4) or the
L+R RCA inputs (5)
