Summary of Contents for Adastra BCS65S

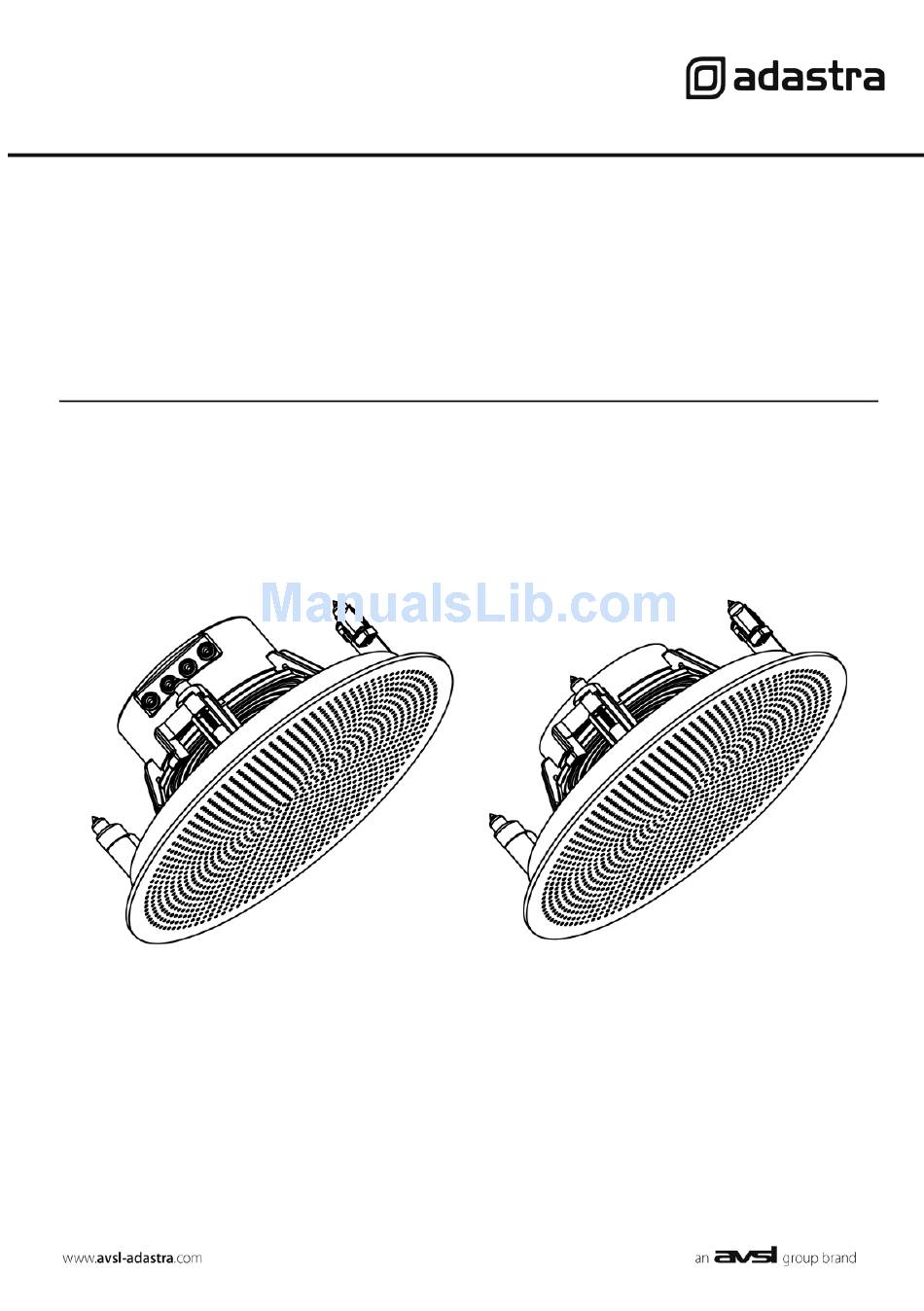

- Page 1 BCS65S Bluetooth Ceiling Speaker Set Item ref: 953.165UK User Manual Version 1.0...
- Page 2 Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing the Adastra BCS65S Bluetooth ceiling speaker set for your ceiling speaker installation. This unit is designed to provide a discreet and expandable solution for background music or other sound application. Please read this manual to gain the best results from your product and avoid damage through misuse.
- Page 3 The BCS65S set is supplied with a fig.8 speaker cable. Feed the bare wire ends of this cable through the hole for the active speaker and feed the crimped end through the hole for the passive speaker.
- Page 4 Take the bare ends of the speaker lead from the passive speaker and connect to the terminals on the active speaker marked “PASSIVE SPEAKER”, ensuring the polarity (+ and -) matches the previously made connections to the passive speaker. If a wired audio input is to be fed to the speakers, connect using a stereo RCA lead and feed this through the ceiling or wall hole for the active speaker.
- Page 5 Gradually increase the volume until the sound output can be heard through the speakers and continue until the required volume level is reached. Only one device may be paired with a BCS65S set at any one time, so it is necessary to unpair a device before connecting a new device.
-
Page 6: Specifications
Specifications Power supply In-line 100-240Vac/12Vdc 5000mA PSU (included) Output power: max. 2 x 25W Output power: rms 2 x 20W LF driver 165mmØ (6.5“) rubber edge PP cone HF driver 12mm (0.5“) neodymium dome tweeter Frequency response 70Hz - 20kHz Sensitivity 89dB Dispersion angle...
