1

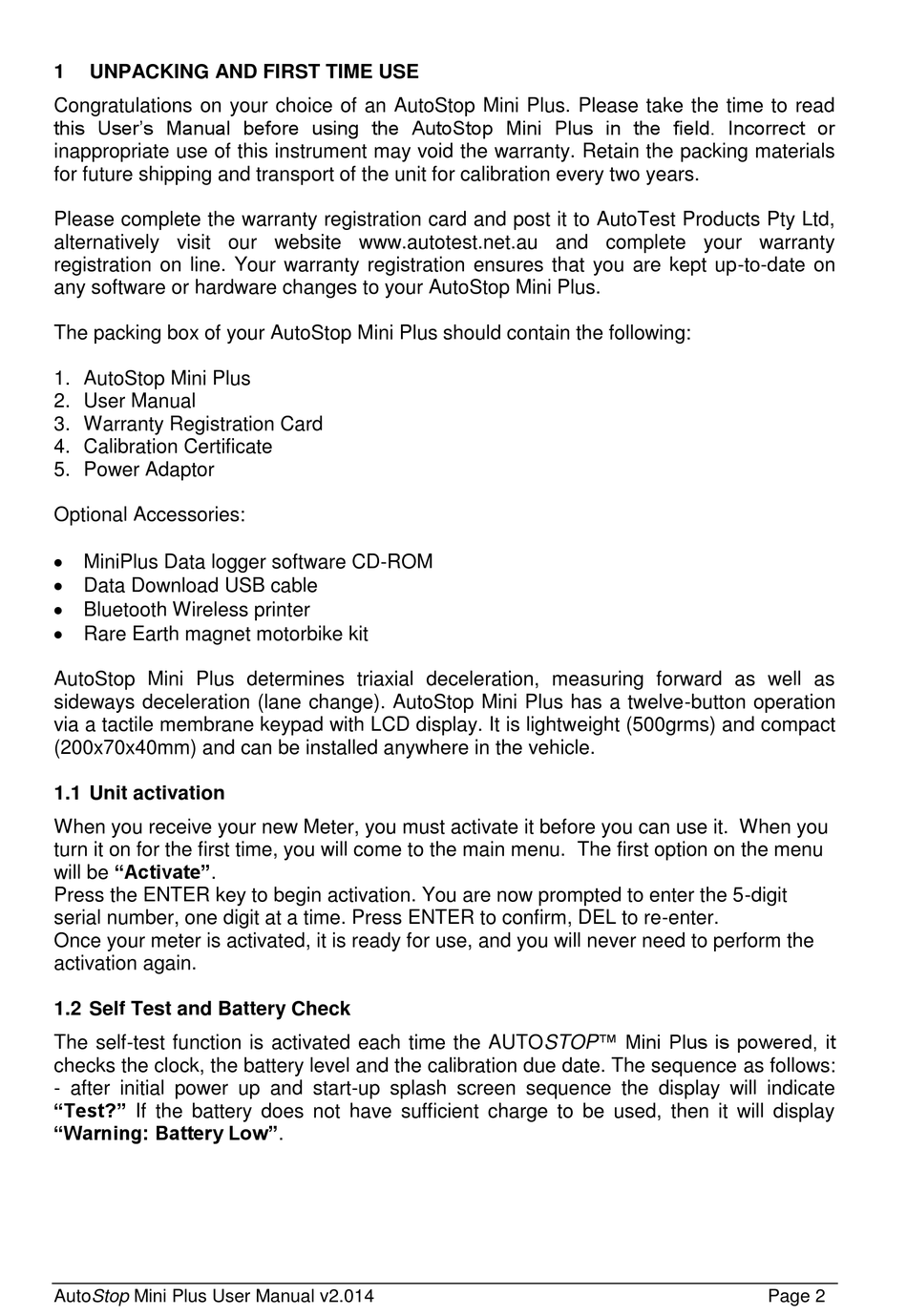

UNPACKING AND FIRST TIME USE

Congratulations on your choice of an AutoStop Mini Plus. Please take the time to read
this User's Manual before using the AutoStop Mini Plus in the field. Incorrect or
inappropriate use of this instrument may void the warranty. Retain the packing materials
for future shipping and transport of the unit for calibration every two years.
Please complete the warranty registration card and post it to AutoTest Products Pty Ltd,
alternatively visit our website www.autotest.net.au and complete your warranty
registration on line. Your warranty registration ensures that you are kept up-to-date on
any software or hardware changes to your AutoStop Mini Plus.
The packing box of your AutoStop Mini Plus should contain the following:

1. AutoStop Mini Plus

2. User Manual
3. Warranty Registration Card
4. Calibration Certificate
5. Power Adaptor
Optional Accessories:
 MiniPlus Data logger software CD-ROM
 Data Download USB cable
 Bluetooth Wireless printer
 Rare Earth magnet motorbike kit
AutoStop Mini Plus determines triaxial deceleration, measuring forward as well as
sideways deceleration (lane change). AutoStop Mini Plus has a twelve-button operation
via a tactile membrane keypad with LCD display. It is lightweight (500grms) and compact
(200x70x40mm) and can be installed anywhere in the vehicle.

1.1 Unit activation

When you receive your new Meter, you must activate it before you can use it. When you
turn it on for the first time, you will come to the main menu. The first option on the menu
will be "Activate".
Press the ENTER key to begin activation. You are now prompted to enter the 5-digit
serial number, one digit at a time. Press ENTER to confirm, DEL to re-enter.
Once your meter is activated, it is ready for use, and you will never need to perform the
activation again.

1.2 Self Test and Battery Check

The self-test function is activated each time the AUTOSTOP™ Mini Plus is powered, it
checks the clock, the battery level and the calibration due date. The sequence as follows:
- after initial power up and start-up splash screen sequence the display will indicate
"Test?" If the battery does not have sufficient charge to be used, then it will display
"Warning: Battery Low".
AutoStop Mini Plus User Manual v2.014 Page 2
