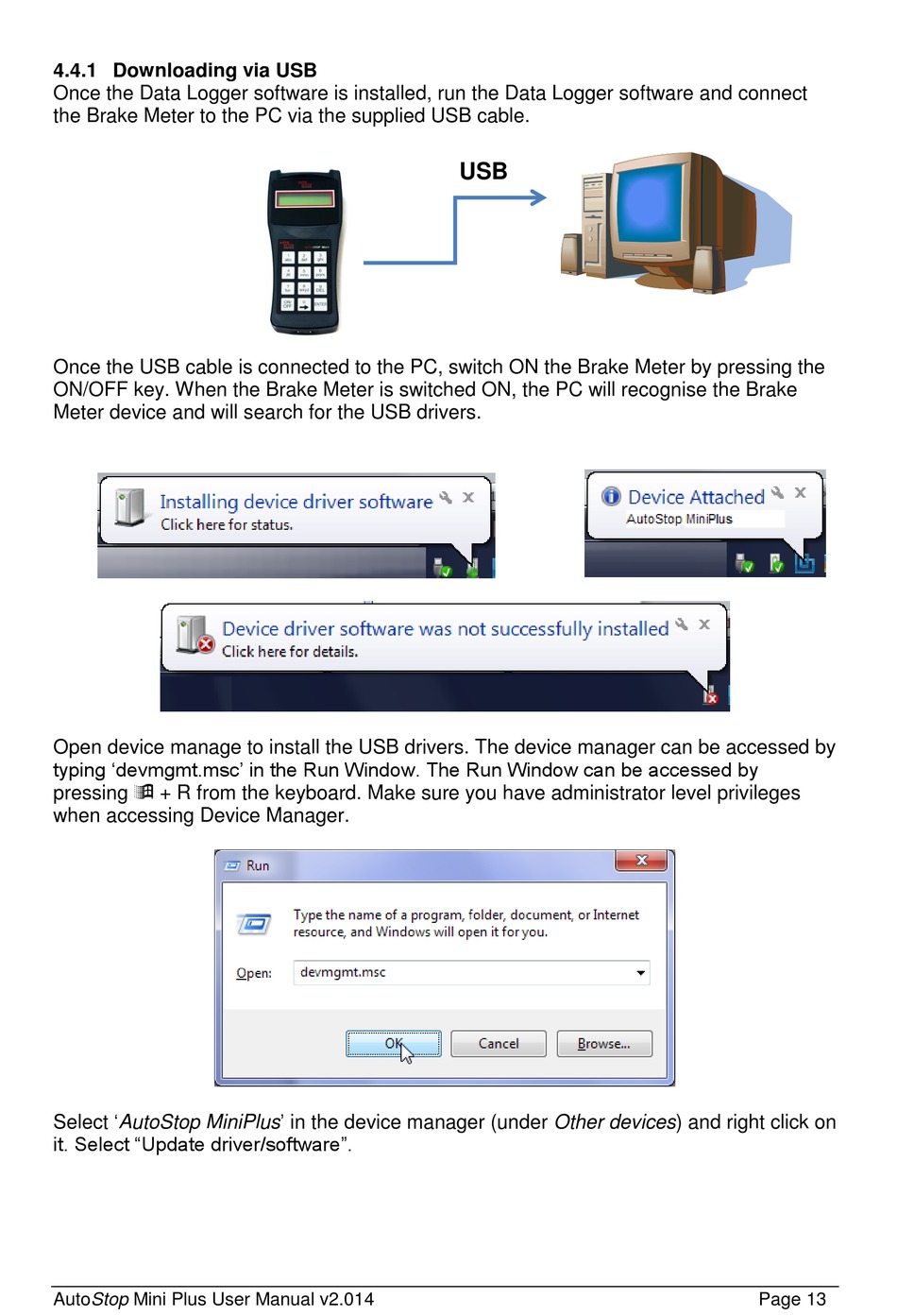

4.4.1 Downloading via USB

Once the Data Logger software is installed, run the Data Logger software and connect
the Brake Meter to the PC via the supplied USB cable.
USB
Once the USB cable is connected to the PC, switch ON the Brake Meter by pressing the
ON/OFF key. When the Brake Meter is switched ON, the PC will recognise the Brake
Meter device and will search for the USB drivers.
Open device manage to install the USB drivers. The device manager can be accessed by
typing 'devmgmt.msc' in the Run Window. The Run Window can be accessed by
pressing  + R from the keyboard. Make sure you have administrator level privileges
when accessing Device Manager.
Select 'AutoStop MiniPlus' in the device manager (under Other devices) and right click on
it. Select "Update driver/software".
AutoStop Mini Plus User Manual v2.014 Page 13
