Magma Cabo A10-703 Owner's Manual

MAINTENANCE
Stainless steel contrary to popular belief can rust. Most commonly, deposits on surface of the product will trap moisture.
It is this moisture that robs stainless steel of oxygen. Oxygen is the element that reacts with stainless steel to form a
protective layer of chrome oxide. Robbed of oxygen, this reaction does not take place and "crevice corrosion" or "surface
rusting" occurs. To minimize this effect, thoroughly clean your grill with soap and water, rinse with fresh water, and dry.
Avoid using stainless steel polishes on grill exterior as most leave a residue that may discolor when grill is heated.
Additionally, stainless steel that is exposed to high heat will change color and texture over time. The "amber" color of
grill exterior and internal components is not a failure of the stainless steel and will not affect products operation. When this
happens, we recommend using "Magma Magic" Grill Restorer to remove the "amber" color and return grill to its
original luster. However, prolonged exposure to extreme high heat will cause chromium and nickel to "burn out" of stainless
steel. At this point stainless steel will become more susceptible to corrosion and will start to deteriorate. We recommended
replacement of internal components as they become seriously deteriorated.
We recommend thoroughly cleaning grill and internal components after each outing. Disassemble interior components
and remove all food residue. Use a "Scotch Brite" pad or similar product and "Easy-Off" oven cleaner for cleaning grills
interior components, followed by thoroughly washing with soap and water, rinse with fresh water & dry. Thoroughly rinse
the area between the interior heat shield and the front surface of the grill. AVOID CONTACT OF OVEN CLEANER WITH
SKIN, CONTROL VALVE, AND BOAT SURFACE. CAUTION: DO NOT USE ANY TYPE OF ABRASIVE PAD ON EXTERIOR MIRROR
FINISH AS IT WILL SCRATCH SURFACE, USE ONLY A SOFT CLOTH. We recommend covering grill between uses. Grill covers
are available at Magma retailers or directly from Magma. See our website, www.magmaproducts.com
Grill Grates - Clean with brass wire brush while grill is warm. Use Oven & Grill cleaner for burnt-on residue. Wash with
soapy water and dry prior to storage.
Control Valve - All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve in any way.
Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the
orifice.
Repair/Replacement Parts - All replacement parts are readily available at your Magma Retailers or directly from Magma.
For a complete list of replacement parts visit our website www.MagmaProducts.com.
USING GRILL WITH ON-BOARD LPG (PROPANE) SYSTEMS
• Magma on-board LPG (propane) Gas Grill
valves and hose kit allow Magma grills
Gas Grill
to be installed to an existing on-board,
Align valve stem key
pre-regulated low pressure LPG (propane)
to valve chamber
lock detent and rotate
system.
• Use only Magma Type 3 Low
Install valve as shown in diagram above. Even
Pressure LPG (Propane) Control
though valve may seem loose or not snug-fitting
Valves. Visit our website at
it will function properly and is safe for use.
www.MagmaProducts.com to view
valve application guide.
Typical Marine &
Gas Grill
• North America use Magma A10-225
R.V. Application
LPG Hose Kit in conjunction with Type
Cylinder Valve
3 Valve. Outside North America see your
Gauge Solenoid
local dealer for proper hose and fittings.
• Primary shutoff valve (supplied with
A10-225 hose kit) must be used at
Shut off To other LPG
valve
Gas Regulator appliance
point of connection to allow shutoff of
Propane (LPG)
A10-225 or use cap
Hose Kit
gas supply leading to grill.
6
USING GRILL WITH ON-BOARD CNG (NATURAL GAS) SYSTEMS
• Magma on-board CNG (natural gas) valves allow Magma grills to be installed to an existing on-board,
pre-regulated low pressure CNG (natural gas) system.
• Use only Magma Type 4 Low Pressure CNG (natural gas) control valves. Visit out website at
www.MagmaProducts.com to view valve application guide. See your local dealer for proper hose and fittings.
TROUBLE SHOOTING GUIDE
Problem Possible Cause
Burner will not No gas flow
light with match
Obstructed gas flow
Flare-up Excessive cooking temperature
Grease and/or residue build-up
Excessive fat in meats
Excessive oils in marinades
Yellow sooty flame Obstructed gas flow
Blow-out Flame too low
Type 3
Valve Wind directly on burner
Obstructed gas flow
Hot Spots Grill not level
Grease or residue build-up
Excessive fat in meats
Type 3
Valve
Excessive oil in marinades
7
Possible Solution
Check fuel level, replace canister or
refill cylinder
Clean burner and valve orifice.
Remove debris/spider webs
x 4 x 4
Operate only on low when lid is
closed
Reduce flame level
Leave lid open
LIMITED WARRANTY
Use water spray to cool
Clean components
Magma Products, Inc. guarantees this product to be free from defects in materials or workmanship to the original consumer. This guarantee is for the
periods herein specified when used under normal and reasonable conditions, one (l) year from the date of original purchase. This warranty does not include the
Trim fat from cuts of meat before
cost of property damage or any inconvenience due to the failure of the product. Nor does it cover damage due to misuse, abuse, accident, or damage resulting
grilling
from transportation of the product. Nor does it include damage resulting from the commercial use of this product. Nor does it include, on stainless steel
products, "Surface Rust'; Excessive Corrosion due to exposure to salt water; or Discoloration or Corrosion caused by exposure to excessive heat or failure to
Use non-oil based marinades properly clean and care for the stainless steel surfaces. If the product fails to operate due to a defect in materials or workmanship during the warranty period,
the defective part will be repaired or replaced at Magma's option. If you wish to obtain performance under this limited warranty, you should contact Magma's
Customer Service Department via telephone at (562) 627-0500, or via e-mail at mail@MagmaProducts.com, or via U.S. Postal Service mail at "Magma Products,
Inc., Attention Customer Service, 3940 Pixie Ave. Lakewood, CA, 90712". The defective part, along with proof of purchase, must be returned postage prepaid to
Clean burner and valve orifice.
Magma Products, Inc. We suggest that you keep your purchase receipt as we may require reasonable proof of purchase.
Remove debris/spider webs
In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling the product, or Magma
Products, Inc., will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer prior to the discovery of
the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment from which it was purchased or to any retail
Increase flame establishment selling this product in order to obtain performance under this warranty. All implied warranties, including the implied warranties of merchantability
and fitness for a particular purpose, are limited in duration to the express warranty periods specified herein for the parts described herein. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither Magma dealers, nor the retail establishment
Block wind when opening lid
selling this product has any authority to make any warranties or to promise remedies in addition to or inconsistent with those stated above. Magma's maximum
liability shall not exceed the purchase price of the product paid by the original consumer. Some states do not allow the exclusion or limitation of incidental or
Clean burner and valve orifice. consequential damages, so the above limitation orexclusions may not apply to you. The warranty gives you specific legal rights and you may also have other
Remove debris/spider webs rights which vary from state to state.
MAGMA and the Magma logo are registered trademarks of Magma Products, Inc.
Cabo is a trademark of Magma Products, Inc.
Patent pending.
Level Grill
CALIFORNIA PROPOSITION 65 – WARNING – The burning of gas cooking fuel generates some by-products, which are on the list of substances,
Clean components
which are known by the State of California to cause cancer or reproductive harm. California law requires businesses to warn customers of
potential exposure to such substances. To minimize exposure to these substances, always operate this unit according to the use and care
manual, ensuring you provide good ventilation when cooking with gas.
Trim fat from cuts of meat before
grilling
Use non-oil based marinades
Magma Products, Inc.
3940 Pixie Avenue, Lakewood, CA 90712 • USA
Phone (562) 627-0500 • e-mail: mail@MagmaProducts.com
www.MagmaProducts.com
CONTENTS
Pack of (4) 1/4"-20 x 5/8" carriage bolts, washers
x 4
and lock nuts for single mount applications.
Read these instructions carefully before use. Familiarize yourself with the appliance before
connecting it to its gas container. Keep these instructions for future reference.
OWNER'S MANUAL

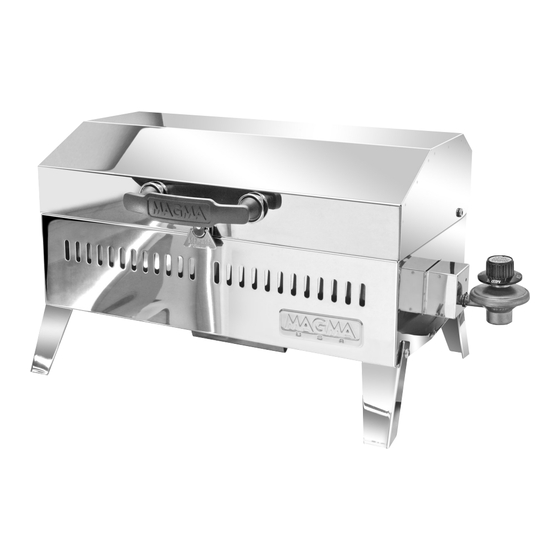

Cabo
™
Adventurer Series Gas Grill
Model A10-703
For questions regarding performance, assembly,
operation, parts, or returns, contact the experts
at MAGMA by calling (562) 627-0500
7:00 a.m. - 5:00 p.m. Pacific Time Monday thru
Friday or e-mail us at mail@MagmaProducts.com
