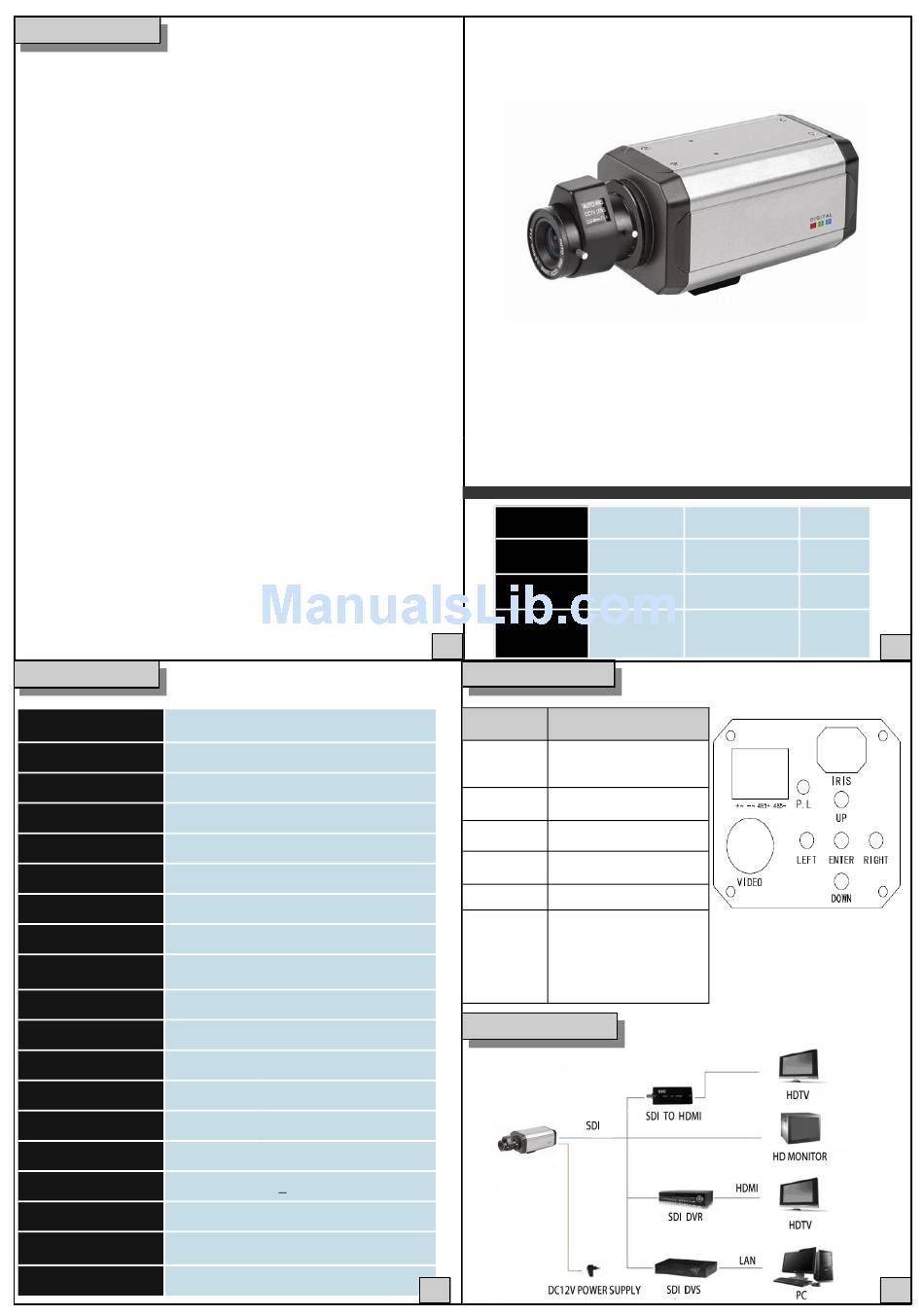

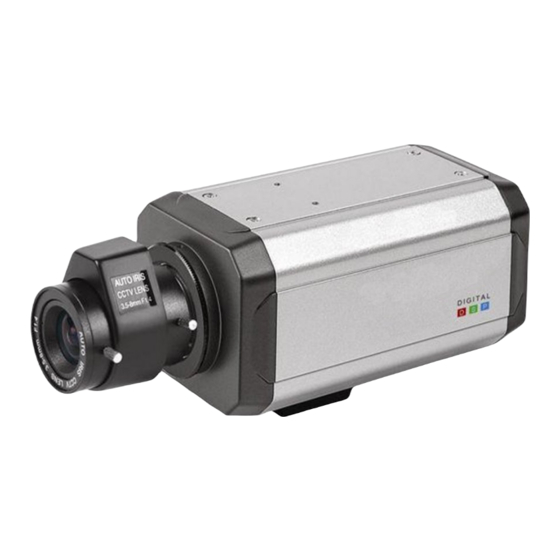

Security Camera King HDBC-LX1080 User Manual

Safety Instruction
Thank you for purchasing this HD CCTV Camera. Please read these
instructions carefully for a thorough understanding of how the cameras op-
erates.
1.Operating requirements
1.1 Before using the camera ,please read this manual carefully and keep it
safely for later use.
1.2 Installation should be proceed by professional service and follow manu-
facturer's instructions, do not dismantle without authorization.
1.3 In order to prevent sensor ,do not expose lens to intense light source in
long time.
1.4 Do not touch sensor directly. Please covers the dustproof cover when
the camera is not being used.
1.5 Please use a dry soft cloth to clean the camera. If dirt difficult to clean,
use detergent with water and wipe dry the camera.
1.6 Do not install camera under air conditioning's air gate ,or else lens blur
with condensation of moisture.
1.7 Please ensure that all electric power sources are turned off when not
open , installation ,clean, etc operation.
1.8 Please transporting , using and storing the camera in allowable tempera-
ture and humidity.
1.9 If the camera was broken, for example power cord or plug dam-
aged ,splash liquid or foreign matter fall into camera, rain-
ing ,wetting ,etc can't work situation ,please contact manufacturer or
maintenance center (modify and maintenance without permission ,you
must be responsible for the problems)
2.Statement
2.1 All photos here are for reference only .Specifications are subject to
physical product.
2.2 This manual is subject to change without further notice.
2.3 Please contact with customer service for the newest procedures and
supplementary specification.
2.4 This manual list several model numbers for reference , please user ac-
cording actual product to operating.
2.5 We will do the best to keep this manual complete and accurate, but
some data may has deviation. If any doubt or dispute ,company retain
the final right of the product.
Specification
1/3" 2.1Megapixel Panasonic CMOS
Imaging Sensor
Scanning System
S/N Ratio
Video Output Mode
Video Output Level
HD-SDI /1.0 Vp-p (75Ω，Composite)
Lens
Min. Illumination
OSD
Electronic Shutter
AGC
DNR
Digital Zoom
D-DFFECT
Back Light
SENS-UP
Voltage/Current
Operating temperature
Dimension (mm)
Weight (g)
Progressive Scan
More than 50dB (AGC Off)
1080P(1920 X 1080)
C / CS MOUNT
1.0Lux(Color),0.5Lux(BW)
Built-in
Auto/FLK/1/25,30sec ~ 1/60000sec
Level adjustable
Low/Middle/High
1.0X-8.0X
Mirror/Flip/D-Zoom/Defog
HLC/BLC/WDR
X2-X8
DC12V+10% / 250mA
-10°~ +50°C
110(W) X 45(H) X 55(D)
400
HD CCTV CAMERA

USER MANUAL

INTRODUCTION:
This camera which has 2.1M Pixes is specially designed for security monitoring. It
applies the latest 2.1M Pixes progressive scan CMOS. It is a heavyweight new-
designed HD camera which applied DC12V and support user customize the output
parameter settings.

Packing List

NO.
1
2 Power line
3
1
Panel Schematic
Item Description
HD-SDI digital video
VIDEO
signal Output ( BNC )
IRIS Auto IRIS interface
Power input DC12V
+～ －～
485+ 485-
P.L Power LED
UP
DOWN
RIGHT OSD function buttons
LEFT
ENTER
Application method
3
Name Model
Camera
HDBC-LX1080
—
Warranty
—
Card
RS-485
Number
1
1
1
2
4
