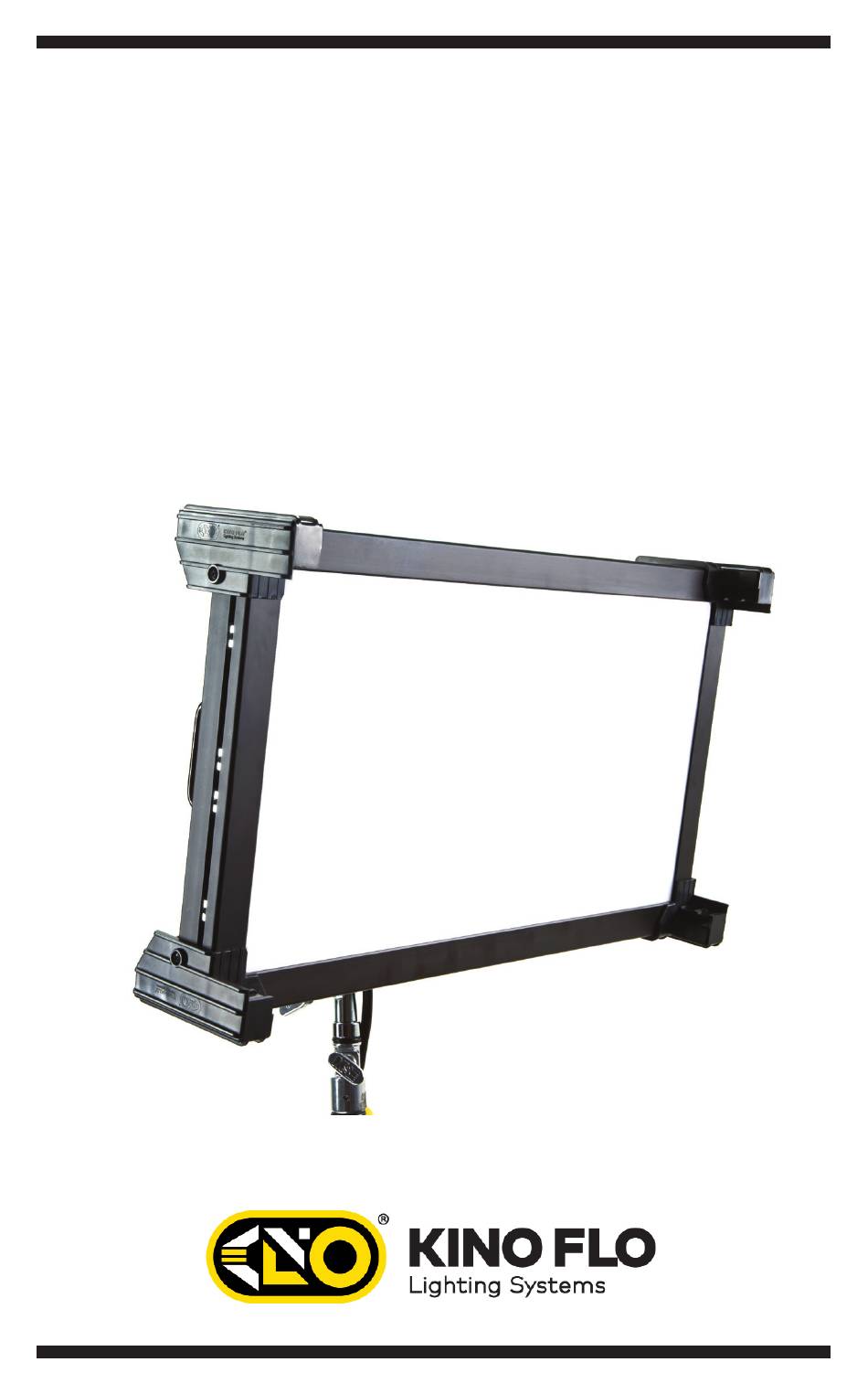

- Page 1 Quick Start Guide Celeb 250/450/450Q LED DMX ® (True Match Firmware 5.0) (RDM) Part No. 3100099 Rev D 05-01-2021...
- Page 2 Celeb LED DMX Systems Center Mount CEL-250CU Celeb 250 LED DMX Center, Univ CEL-450CU Celeb 450 LED DMX Center, Univ Yoke Mount CEL-250YU Celeb 250 LED DMX Yoke, Univ CEL-450YU Celeb 450 LED DMX Yoke, Univ CEL-450QU Celeb 450Q LED DMX Yoke, Univ...
- Page 3 Weight: 37.5 lb (17kg) Dimensions: 33 x 8.5 x 22.5” (84 x 22 x 57cm) Celeb 450 LED DMX Kits KIT-C450U Celeb 450 LED DMX Center Mount Kit, Univ Kit Contents: 1 Celeb 450 LED DMX Center Mount 1 Flight Case Weight: 52.5 lb (24kg)
- Page 4 Celeb 450Q LED DMX Kit KIT-C450QU Celeb 450Q LED DMX Yoke Mount Kit, Univ Kit Contents: 1 Celeb 450Q LED DMX Yoke Mount 1 Jr. Pin 1 Ship Case Weight: 52 lb (24kg) Dimensions: 34.5 x 8.5 x 33” (88 x 22 x 84cm) Fixture Power AC Input The Celeb is powered AC and includes...
- Page 5 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
- Page 6 Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &...
- Page 7 Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &...
- Page 8 Control Panel - CIE xy CIE xy Mode A) Menu: Provides access to menu options such as General settings (CIE xy mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold or 3 seconds to switch through menus (White, Gels &...
- Page 9 Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programed effects as well as control parameters that can be altered.
- Page 10 The camera code (C1 for Arri Alexa), for example, will appear on the main menu between DIM and CCT to designate that a camera setting is active. Note: When the controller is reset, the camera settings will go to Kino Flo Default mode.
-
Page 11: Color Space
Color Space Color Space defines the RGB color space used and only affects color – not Kelvin. It is used in RGB mode and Hue Angle and Saturation. There are a few instances in the FX (Effects) mode that are also affected when color is used. The RGB color space defines the value of Red, Green, and Blue primaries (in CIE xy) and the white point is fixed at 6500 Kelvin. -
Page 12: Fixture Specifications
Fixture Specifications CEL-250CU Celeb 250 LED DMX Center Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 145W Amperage VAC: 1.2A at 120VAC, 0.7A at 230VAC DC Input Voltage: 18~36VDC, 150W Amperage VDC: 6.25A at 24VDC Kelvin Range: 2500K~9900K Dimming Range: 100%~1% Weight: 15 lb (6.8kg) Dimensions: 24 x 5 x 14”... - Page 13 CEL-450CU Celeb 450 LED DMX Center Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 255W Amperage VAC: 2.5A at 120VAC, 1.1A at 230VAC Kelvin Range: 2500K~9900K Dimming Range: 100%~1% Weight: 26 lb (12kg) Dimensions: 45 x 5 x 14” (114.5 x 13 x 36cm)
- Page 14 CEL-450QU Celeb 450Q LED DMX Yoke Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 270W Amperage VAC: 2.7A at 120VAC, 1.1A at 230VAC Kelvin Range: 2500K~9900K Dimming Range: 100%~1% Weight: 24 lb (11kg) Dimensions: 30 x 5 x 26” (72 x 13 x 66cm) CEL-450QPU Celeb 450Q LED DMX Pole-Op, Univ AC Input Voltage: 100~240VAC 50/60Hz, 270W Amperage VAC: 2.7A at 120VAC, 1.1A at 230VAC...
- Page 15 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
