GE Evolve Installation Manual

Led area light
Hide thumbs Also See for Evolve:
Table of Contents
  • Maintenance & Cleaning
  • Avant de Commencer
  • Spécifications
  • Montage
  • Entretien / Nettoyage
  • Antes de Empezar
  • Especificaciones
  • Montaje
  • Mantenimiento/Limpieza

Advertisement

Available languages

Available languages

Quick Links

Download this manual
GE
Lighting
Evolve
™
(EAN)
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Save these instructions for future use.
Risk of electrical shock. Disconnect power before servicing
or installing product.
Risk of injury or damage. Unit will fall if not installed
properly. Follow installation instructions.
Risk of fire. Use supply wire specified on nameplate.
Risk of injury. Wear safety glasses and gloves during
installation and servicing.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. This Class [A] Lighting Equipment complies with
Canadian standardICES-005[A] / NMB-005[A].
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
imagination at work

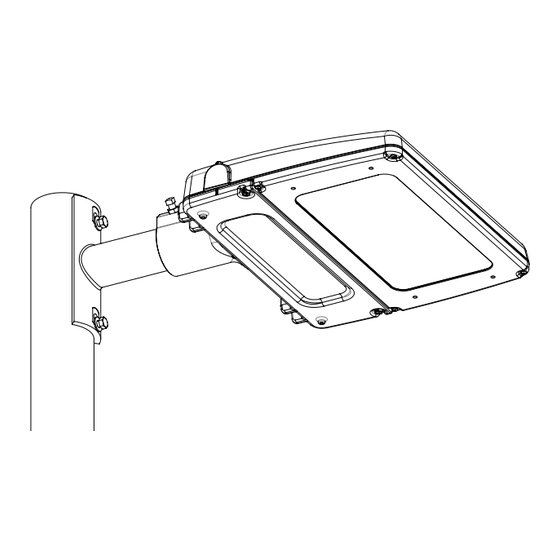

LED Area Light
WARNING
WARNING
WARNING
CAUTION
• This luminaire is designed for outdoor lighting service,
and should not be used in areas of limited ventilation,
or in high ambient temperatures.
• Best results will be obtained if installed and maintained
according to the following recommendations.
• Luminaire is designed to operate in ambient
temperatures ranging from -40°C to 50°C
and to be mounted horizontally to a vertical pole
with LEDs facing down.
SPECIFICATIONS
• Weight: Maximum weight <20.5 lbs (9.3 kg)
• EPA: Horizontal mounting: 0.67 sq ft max (0.06 sq M)
• IP Rating: Optical 66, Standard Electrical Enclosure:
UL 1598 Wet Location Rated
Installation Guide
GEH-6032

Advertisement

Table of Contents
loading

Related Manuals for GE Evolve

Summary of Contents for GE Evolve

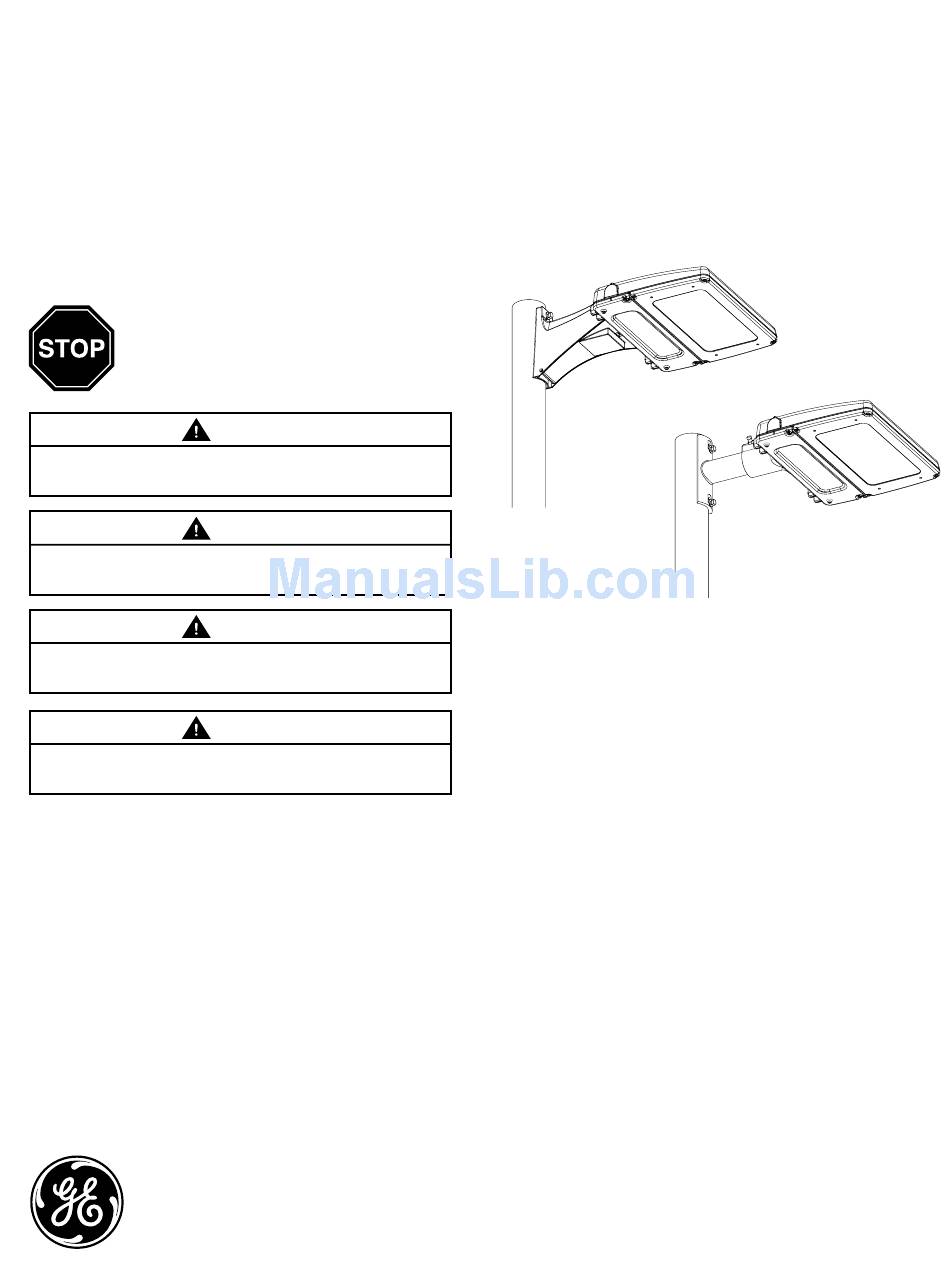

  • Page 1 Installation Guide GEH-6032 Lighting Evolve LED Area Light ™ (EAN) BEFORE YOU BEGIN Read these instructions completely and carefully. Save these instructions for future use. WARNING Risk of electrical shock. Disconnect power before servicing or installing product. WARNING Risk of injury or damage. Unit will fall if not installed properly.
  • Page 2 UNPACKING 3b Round Pole Architectural Arm Mounting This luminaire has been configured specifically to mount to round pole 3.5-4.5 inches (89-114mm) in diameter. Hole • This luminaire has been properly packed so that no pattern on round pole shall be in accordance with Figure 2. parts should have been damaged during transit.
  • Page 3 3c Square Pole Architectural Arm Mounting FIxTURE ARM TO ARM ADAPTER Torque Top Bolt This luminaire has been configured the same as 3b to 25 - 32 ft-lbs. (34-43 N-m) and an adapter plate has been included to mount to a square pole.

  • Page 4: Maintenance & Cleaning

    (1 - 888 - 69 - 43 - 533) GE Lighting is a subsidiary of the General Electric Company. Evolve and the GE brand and logo are trademarks of the General Electric Company. © 2016 GE Lighting. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.

  • Page 5: Avant De Commencer

    Guide d’installation GEH-6032 Lighting Éclairage de surface LED Evolve ™ (EAN) AVANT DE COMMENCER Lire attentivement ces instructions dans leur intégralité. Conserver ces instructions en vue d’un usage ultérieur. AVERTISSEMENT Risque de choc électrique. Débrancher l’alimentation avant d’installer ou d’effectuer l’entretien/la réparation du produit. AVERTISSEMENT Risque de blessures ou de dommages. L’appareil tombera s’il n’est pas installé...

  • Page 6: Montage

    DÉBALLAGE 3b Montage avec bras architectural sur poteau rond Ce luminaire a été spécialement configuré pour être monté sur un poteau rond de 3,5-4,5 po. (89-114mm) de diamètre. La configuration • Ce luminaire a été soigneusement emballé afin qu’aucune des trous du poteau rond doit être conforme au Schéma 2. pièce ne soit endommagée pendant le transport.
  • Page 7 3c. Montage avec bras architectural sur poteau carré BRAS DU LUMINAIRE À L’ADAPTATEUR Visser le boulon du haut à Ce luminaire a été configuré comme dans la section un couple de 25-32 pi. lbs (34-43 N-m) 3b et une plaque d’adaptation a été incluse pour être montée au poteau carré.

  • Page 8: Entretien / Nettoyage

    (1 - 888 - 69 - 43 - 533) GE Lighting est une filiale de General Electric Company. Les marques et les logos Evolve et GE sont des marques de commerce de General Electric Company. © 2016 GE Lighting. Les informations fournies dans le présent sont susceptibles d’être modifiées sans préavis. Toutes les valeurs sont des valeurs de calcul ou caractéristiques lorsque mesurées en laboratoire.

  • Page 9: Antes De Empezar

    Guía de Instalación GEH-6032 Lighting Luminaria de Área LED Evolve ™ (EAN) ANTES DE EMPEZAR ALTO Lea estas instrucciones detenidamente y por completo. Guarde estas instrucciones para uso futuro. ADVERTENCIA Riesgo de descarga eléctrica. Desconecte la fuente de poder antes de instalar o dar servicio al producto.

  • Page 10: Montaje

    DESEMPAQUE 3b. Montaje para Poste Redondo con Brazo arquitectónico Esta luminaria ha sido configurada específicamente para ser • Esta luminaria ha sido empacada adecuadamente montada a un poste redondo de 3.5 a 4.5 pulgadas (89-114 mm) para que ninguna parte se dañe durante su envío. de diámetro.
  • Page 11 3c. Montaje para Poste Cuadrado con Brazo BRAZO DE APARATO PARA ADAPTADOR DE BRAZO Arquitectónico Torque para Tornillo superior 25-32 libras-pie Esta luminaria está configurada igual que 3b y una (34-43N-m) placa adaptadora ha sido incluida para ser montada a un poste cuadrado.

  • Page 12: Mantenimiento/Limpieza

    (1 - 888 - 69 - 43 - 533) GE Lighting es una subsidiaria de la Compañía General Electric. Evolve, y la marca y logotipo de GE son marcas registradas de la Compañía General Electric. ©2016 GE Lighting. La información se encuentra sujeta a cambio sin previo aviso. Todos los valores son de diseño, o valores típicos al momento de ser medidos bajo condiciones de laboratorio.
