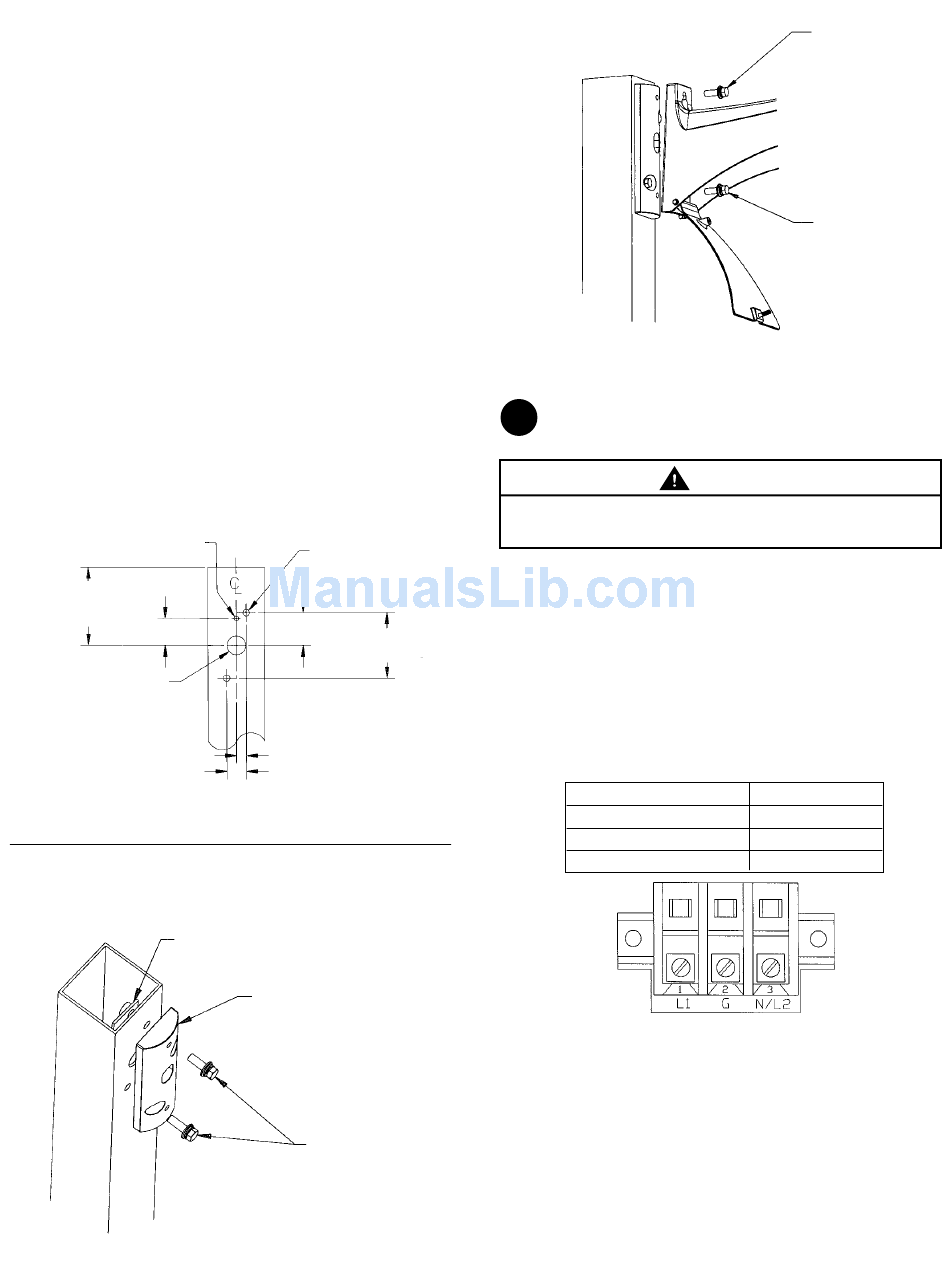

GE Evolve Installation Manual page 3

3c Square Pole Architectural Arm Mounting
This luminaire has been configured the same as 3b
and an adapter plate has been included to mount to
a square pole. Hole pattern on square pole shall be in
accordance with Figure 5.
• Orient adapter block so that oval shaped through
hole is closer to top than bottom of adapter.
• With adapter block end oriented properly, mount
adapter block to pole with the nut plate and 3/8-16
bolts and washer supplied as shown. Torque 3/8-16
bolts to 25 - 32ft-lbs (34-43 N-m). (See Figure 6)
• Place fixture against adapter block.
• Install 3/8 bolt, lock washer and washer in top as
shown and tighten into adapter block.
(See Figure 7)
• Open arm door and Install 3/8 bolt into tapped hole
of adapter block. (See Figure 7)
• Torque top and bottom bolts to 25 - 32 ft-lbs (34-43 N-m).
• Inspect installation to ensure fixture is secure.
DRILLING TEMPLATE
SQUARE POLE MOUNTING
.312 in. DIA.
(8 mm DIA.)
5.2500 in.
(133 mm)
(MIN.)
1.8120 in.
(46 mm)
1.250 in. DIA.
(32 mm DIA.)
(hOLE)
FIGURE 5
ADAPTER PLATE FOR
SQUARE POLE
Nut Plate
FIGURE 6
.438 in. DIA.
(11 mm DIA.)
(2 PLACES)
2.1960 in.
(56 mm)
4.3920 in.
(112 mm)
.656 in. (17 mm)
1.312 in. (33 mm)
Adapter Block
3/8-16 Washer and Bolts
Torque Bolts to 25 - 32ft-lbs.
(34-43 N-m)
FIxTURE ARM TO ARM ADAPTER
FIGURE 7
4
WIRING
Risk of Damage or Injury: Door should be closed with
screw until fixture in final location.
• NOTE: Make all electrical connections in accordance
with the National Electrical Code and any applicable
local code requirements.
• Strain relief for incoming power must be provided in
the pole top by the customer.
• Supply Wire Type and Size, for Customer Connection
to Terminal Board: 16 AWG (1.5mm
(10mm ) Solid or Stranded.
2
Terminal Board Connections:
Terminal Board Position
L1
G
N/L2
• NOTE: Verify that supply voltage is correct by
comparing it to nameplate inside door or on carton.
Torque Top Bolt
to 25 - 32 ft-lbs.
(34-43 N-m)
Torque Bottom Bolt
to 25 - 32 ft-lbs.
(34-43 N-m)
CAUTION
2 ) to 6 AWG
Supply Type
High Line
Ground
Low Line/Neutral
