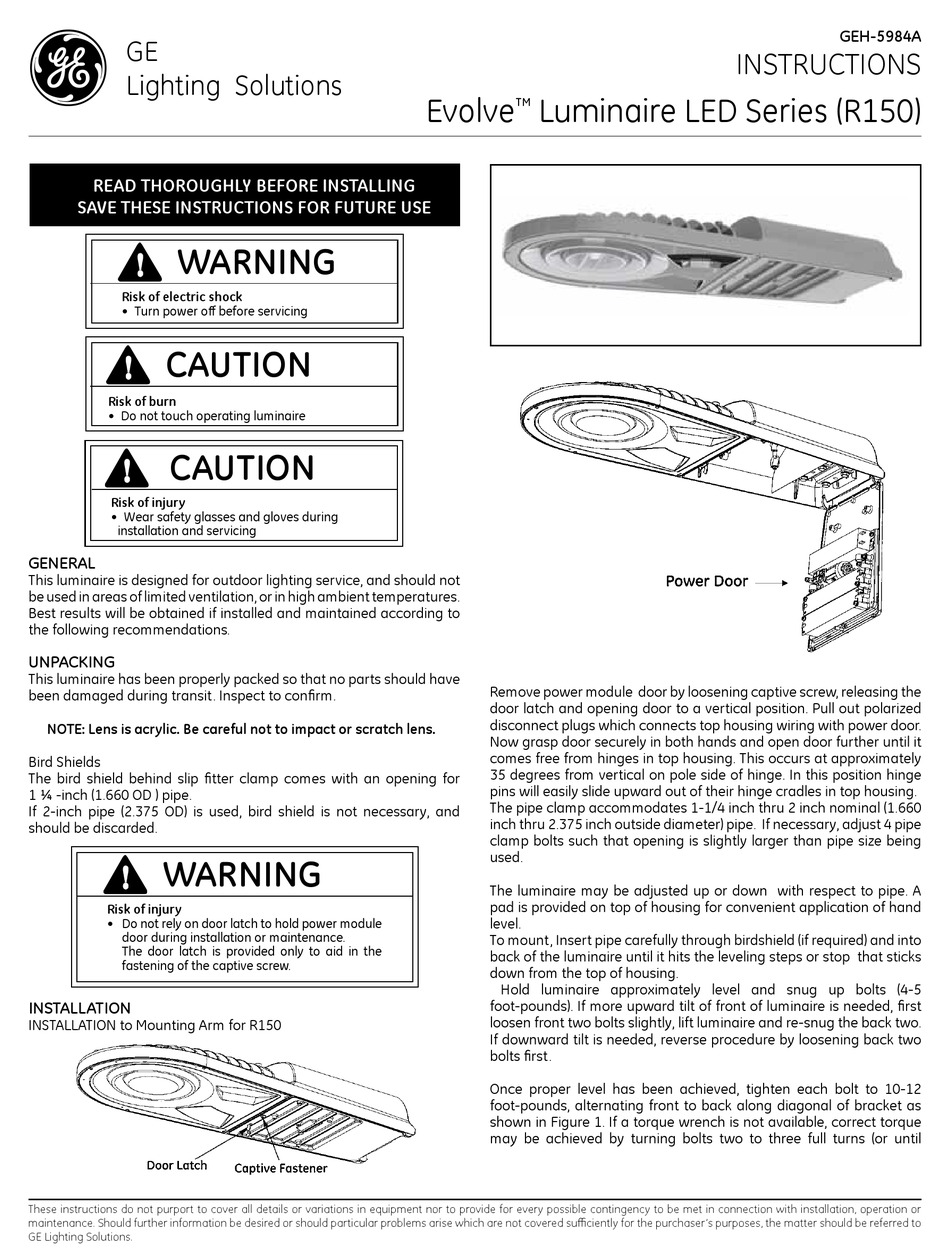

GE Evolve R150 Series Instructions

g
GE
Lighting Solutions
READ THOROUGHLY BEFORE INSTALLING
SAvE THESE INSTRUCTIONS FOR FUTURE USE
WARNING
Risk of electric shock
• Turn power off before servicing
CAUTION
Risk of burn
• Do not touch operating luminaire
CAUTION
Risk of injury
• Wear safety glasses and gloves during
installation and servicing
GENERAL
This luminaire is designed for outdoor lighting service, and should not
be used in areas of limited ventilation, or in high ambient temperatures.
Best results will be obtained if installed and maintained according to
the following recommendations
UNPACKING
This luminaire has been properly packed so that no parts should have
been damaged during transit. Inspect to confirm.
NOTE: Lens is acrylic. Be careful not to impact or scratch lens.
Bird Shields
The bird shield behind slip fitter clamp comes with an opening for
1 ¼ -inch (1.660 OD ) pipe.
If 2-inch pipe (2.375 OD) is used, bird shield is not necessary, and
should be discarded.
WARNING
Risk of injury
• Do not rely on door latch to hold power module
door during installation or maintenance.
The door latch is provided only to aid in the
fastening of the captive screw.
INSTALLATION
INSTALLATION to Mounting Arm for R150
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation or
maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter should be referred to
GE Lighting Solutions.
.
Evolve Luminaire LED Series (R150)
™
Remove power module door by loosening captive screw, releasing the
door latch and opening door to a vertical position. Pull out polarized
disconnect plugs which connects top housing wiring with power door.
Now grasp door securely in both hands and open door further until it
comes free from hinges in top housing. This occurs at approximately
35 degrees from vertical on pole side of hinge. In this position hinge
pins will easily slide upward out of their hinge cradles in top housing.
The pipe clamp accommodates 1-1/4 inch thru 2 inch nominal (1.660
inch thru 2.375 inch outside diameter) pipe. If necessary, adjust 4 pipe
clamp bolts such that opening is slightly larger than pipe size being
used.
The luminaire may be adjusted up or down with respect to pipe. A
pad is provided on top of housing for convenient application of hand
level.
To mount, Insert pipe carefully through birdshield (if required) and into
back of the luminaire until it hits the leveling steps or stop that sticks
down from the top of housing.
Hold luminaire approximately level and snug up bolts (4-5
foot-pounds). If more upward tilt of front of luminaire is needed, first
loosen front two bolts slightly, lift luminaire and re-snug the back two.
If downward tilt is needed, reverse procedure by loosening back two
bolts first.
Once proper level has been achieved, tighten each bolt to 10-12
foot-pounds, alternating front to back along diagonal of bracket as
shown in Figure 1. If a torque wrench is not available, correct torque
may be achieved by turning bolts two to three full turns (or until
GEH-5984A
INSTRUCTIONS
