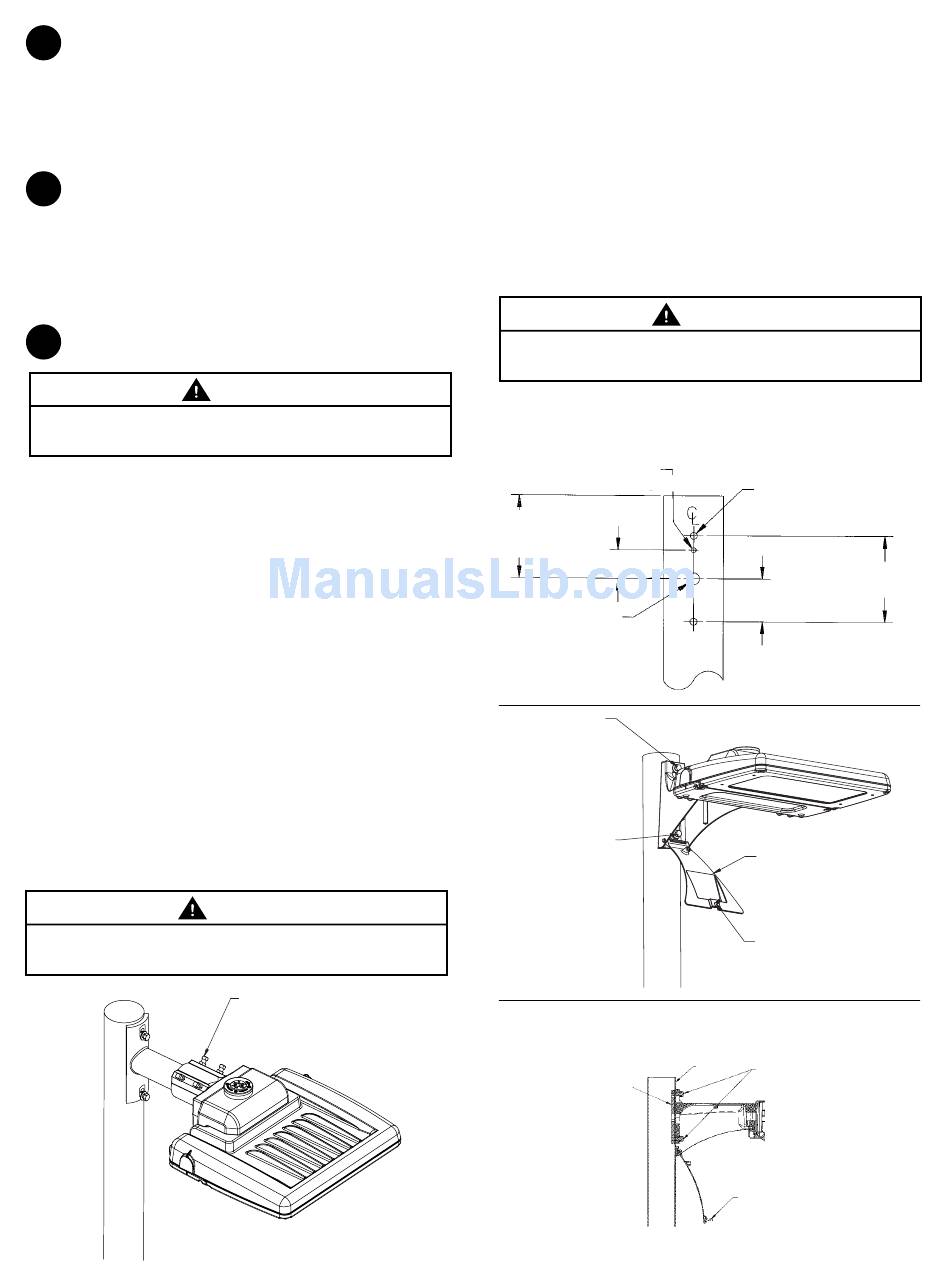

GE Evolve Installation Manual page 2

1
UNPACKING
• This luminaire has been properly packed so that no
parts should have been damaged during transit.
• Inspect to confirm.
2
hANDLING
• Damage may occur if luminaire is improperly handled
outside of pack.
• Do not impact or stack luminaire after removal from
packaging.
3
MOUNTING
Risk of injury or damage. Unit will fall if not installed
properly. Follow installation instructions.
Follow the appropriate installation instructions based on
your selected mounting method:
a. Slipfitter Mounting
b. Round Pole Architectural Arm Mounting
c. Square Pole Architectural Arm Mounting
3a Slipfitter Mounting
This luminaire has been configured specifically to mount to a
2-inch pipe brackets (2-3/8" OD)
• Hold luminaire approximately level with pipe. Pull
wires through arm and place slip fitter over 2-inch
(51mm) pipe (2 3/8-inch (60mm) OD).
• Tighten the (4) slipfitter 3/8 bolts to 10-14 ft-lbs
(14-19 N-m). Tighten jam nuts after bolts have been
tightened. (See Figure 1)
• Inspect installation to ensure fixture is secure.
Under no conditions should slipfitter bolts be torqued to a
level greater than 14 foot pounds (19 N-m).
FIGURE 1
WARNING
.
WARNING
Slipfitter 3/8 Bolts and Jam Nuts
3b Round Pole Architectural Arm Mounting
This luminaire has been configured specifically to mount
to round pole 3.5-4.5 inches (89-114mm) in diameter. Hole
pattern on round pole shall be in accordance with Figure 2.
• Place fixture against pole.
• Install 3/8 bolt, lock washer and washer in top as
shown and tighten into nut plate.
• Open arm door and install 3/8 bolt, lock washer and
washer inside arm as shown and tighten into nut
plate. (See Figure 3 and 4)
• Torque top and bottom bolts to 25 - 32 ft-lbs (34-43 N-m).
• Inspect installation to ensure fixture is secure.
Under no conditions should architectural arm mounting bolts
be torqued to greater than 32 ft-lbs. (43 N-m)
DRILLING TEMPLATE
ROUND POLE MOUNTING
3.5 to 4.5 inch (89 to 114mm) OD
round pole mounting arm.
.312 in. DIA.
(8 mm DIA.)
5.2500 in.
(133 mm)
(MIN.)
1.8120 in.
(46 mm)
.750 in. DIA.
(19 mm DIA.)
(hOLE)
FIGURE 2
Torque Top Bolt
to 25-32 ft-lbs.
(34-43N-m)
Torque Bottom Bolt
to 25-32 ft-lbs.
(34-43N-m)
FIGURE 3
Section view: Round Pole Mounting
Architectural Arm with Door
Nut Plate
FIGURE 4
WARNING
.438 in. DIA.
(11 mm DIA.)
(2 PLACES)
5.4380 in.
(138 mm)
2.7190 in.
(69 mm)
Door
Arm Door Screw
Pole
Bolt, Lock Washer,
Flat Washer
Arm Door Screw
