Evolve

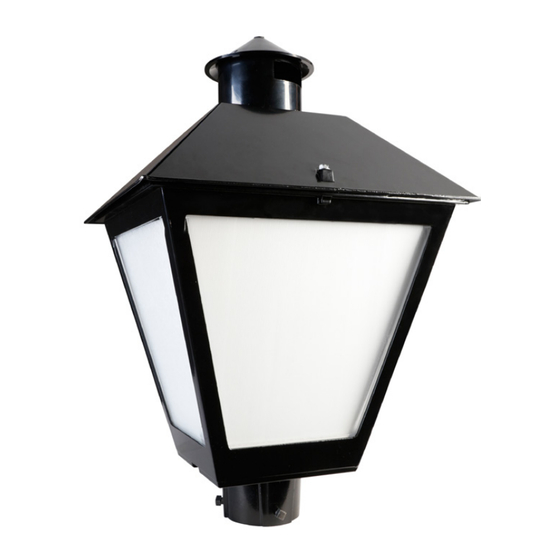

LED Post Top
™
Town & Country (EPTT)
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Save these instructions for future use.
Risk of electrical shock. Disconnect power before service
installation, or maintenance of the product.
Risk of injury or damage. Unit will fall if not installed
properly. Follow installation instructions.
Risk of injury. Wear safety glasses and gloves during
installation and servicing.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class [A] Lighting Equipment complies with Canadian standards
ICES-005[A]/NMB-005[A].
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
WARNING
WARNING
CAUTION
GENERAL
• Luminaire is designed for outdoor lighting service.
Do not use in areas of limited ventilation, or outside
the rated ambient temperature range.
• Install and maintain according to this guide.
• Luminaire is designed to operate in ambient
temperatures ranging from -40°C to +50°C and to
be mounted to a vertical pole as shown.
SPECIFICATIONS
• Maximum weight: 18 lbs (8.2kg)
• Intrusion Protection:
Optical: IP65
Electrical Enclosure: UL 1598 Wet Location Rated
• Suggested Mounting Height: 10-18 ft. (3-5 M)
• Effective Projected Area: 1.6 sq ft. max (0.15 sq M max)
• Dimension: 24.5 in x 15.5in x 15.5 in
Installation Guide
GEH-6067
Advertisement
Table of Contents
Related Manuals for GE current Evolve LED Post Top Series
Summary of Contents for GE current Evolve LED Post Top Series

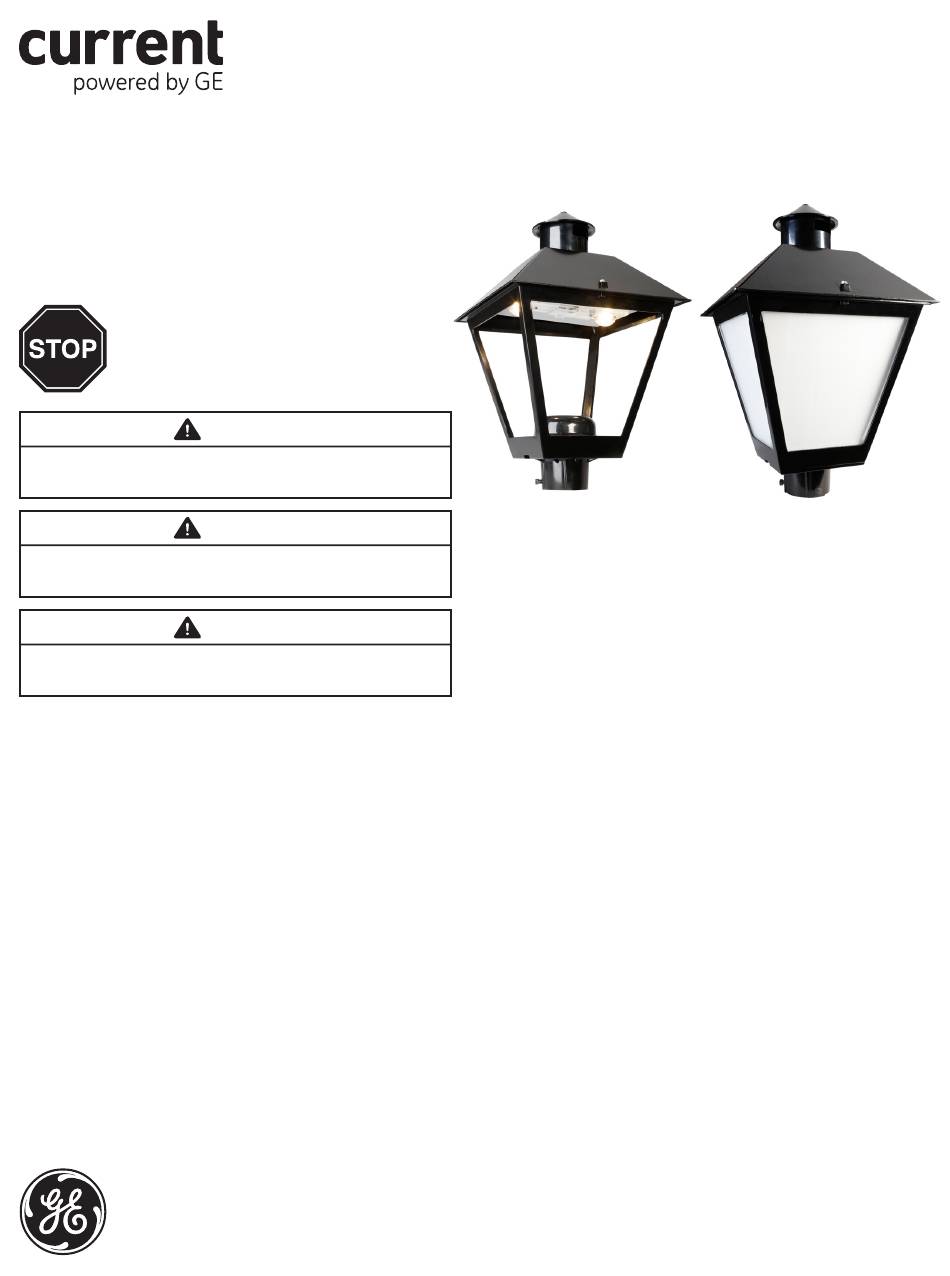

- Page 1 Installation Guide GEH-6067 Evolve LED Post Top ™ Town & Country (EPTT) BEFORE YOU BEGIN Read these instructions completely and carefully. Save these instructions for future use. WARNING Risk of electrical shock. Disconnect power before service installation, or maintenance of the product. WARNING Risk of injury or damage.
- Page 2 UNPACKING/HANDLING WIRING • NOTE: Make all electrical connections in accordance • This luminaire has been packed to ensure no damage with the National Electrical Code and any applicable during transit. Inspect to confirm. local code requirements including grounding. • Do not impact or stack luminaire after unpacking. •...
-
Page 3: Maintenance & Cleaning
PHOTOELECTRIC CONTROL • Orient the photoelectric (PE) receptacle so that the word “North” is directed toward true north. • Lower the PE receptacle to seat in position. Install PE control. • Secure cupola over the photoelectric control with the window properly oriented in regard to the sensor. Because of the shielding of the cupola window by the cupola top it may be necessary to adjust for an earlier turn-on time of the photoelectric control. - Page 4 All trademarks are the property of their respective owners. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions. Current, powered by GE is a business of the General Electric Company. © 2018 GE.
-
Page 5: Avant De Commencer
Manuel d’Installation GEH-6067 Réverbère Evolve ™ Ville et Campagne (EPTT) AVANT DE COMMENCER Arrêtez Lisez ces instructions entièrement et attentivement. Conservez ces instructions pour usage futur. AVERTISSEMENT Risque d’électrocution. Coupez l’alimentation électrique avant l’installation en service ou avant un entretien de ce produit. AVERTISSEMENT Risque de blessure ou de dégâts. -
Page 6: Montage
DÉBALLAGE/MANUTENTION CÂBLAGE • REMARQUE: Procédez à tous les raccordements • Ce luminaire a été emballé pour garantir un transport électriques en accord avec le NEC et tous les codes sans dégâts. Inspectez pour confirmer. locaux d’application, y compris la mise à la terre. •... -
Page 7: Entretien / Nettoyage
CONTRÔLE PAR CELLULE PHOTOÉLECTRIQUE • Orientez le boîtier photoélectrique (PE) de manière que le mot “North” vise le nord réel. • Abaissez le boîtier photoélectrique en position. Installez le contrôle PE. • Fixez la coupole au-dessus du contrôle photoélectrique avec la fenêtre orientée correctement vis-à-vis du détecteur. - Page 8 Toutes les marques déposées sont la propriété de leurs propriétaires respectifs. Les informations fournies sont sujettes à modification sans préavis. Toutes les valeurs données sont théoriques ou typiques lorsque mesurées sous conditions de laboratoire. Current, powered by GE est une entreprise de General Electric Company. ©2018 GE.
- Page 9 Guía de instalación GEH-6067 Luz para punta de poste de Evolve ™ Para la ciudad y el campo (EPTT) ANTES DE COMENZAR ALTO Lea estas instrucciones completamente y con cuidado. Guarde estas instrucciones para el uso futuro. ADVERTENCIA Riesgo de choque eléctrico. Desconecte la alimentación antes del mantenimiento o la instalación del producto.
-
Page 10: Montaje
DESEMBALAJE/MANIPULACIÓN CABLEADO • NOTA: Haga todas las conexiones eléctricas de acuerdo • Esta luminaria ha sido embalada para evitar daños con el Código Eléctrico Nacional y cualquier requisitos durante el transporte. Inspeccione para confirmar. de códigos locales, incluyendo la conexión a tierra. •... -
Page 11: Mantenimiento / Limpieza
CONTROL FOTOELÉCTRICO • Oriente el receptáculo fotoeléctrico (FE) para que se dirija la palabra “Norte” hacia el verdadero norte. • Baje el receptáculo FE para ponerlo en posición. Instale el control FE. • Sujete la cúpula encima del control fotoeléctrico con la ventanilla orientada adecuadamente en cuanto al sensor. - Page 12 Todas las marcas registradas son propiedad de sus respectivos propietarios. La Información proporcionada está sujeta a cambios sin previo aviso. Todos los valores son de diseño o valores típicos cuando se miden bajo condiciones de laboratorio. Current, powered by GE es una empresa de la General Electric Company. © 2018 GE.
