Connection; Dc Power Cable Connections; Software Adjustment; Pll Adjustment - Icom IC-F3GS Service Manual

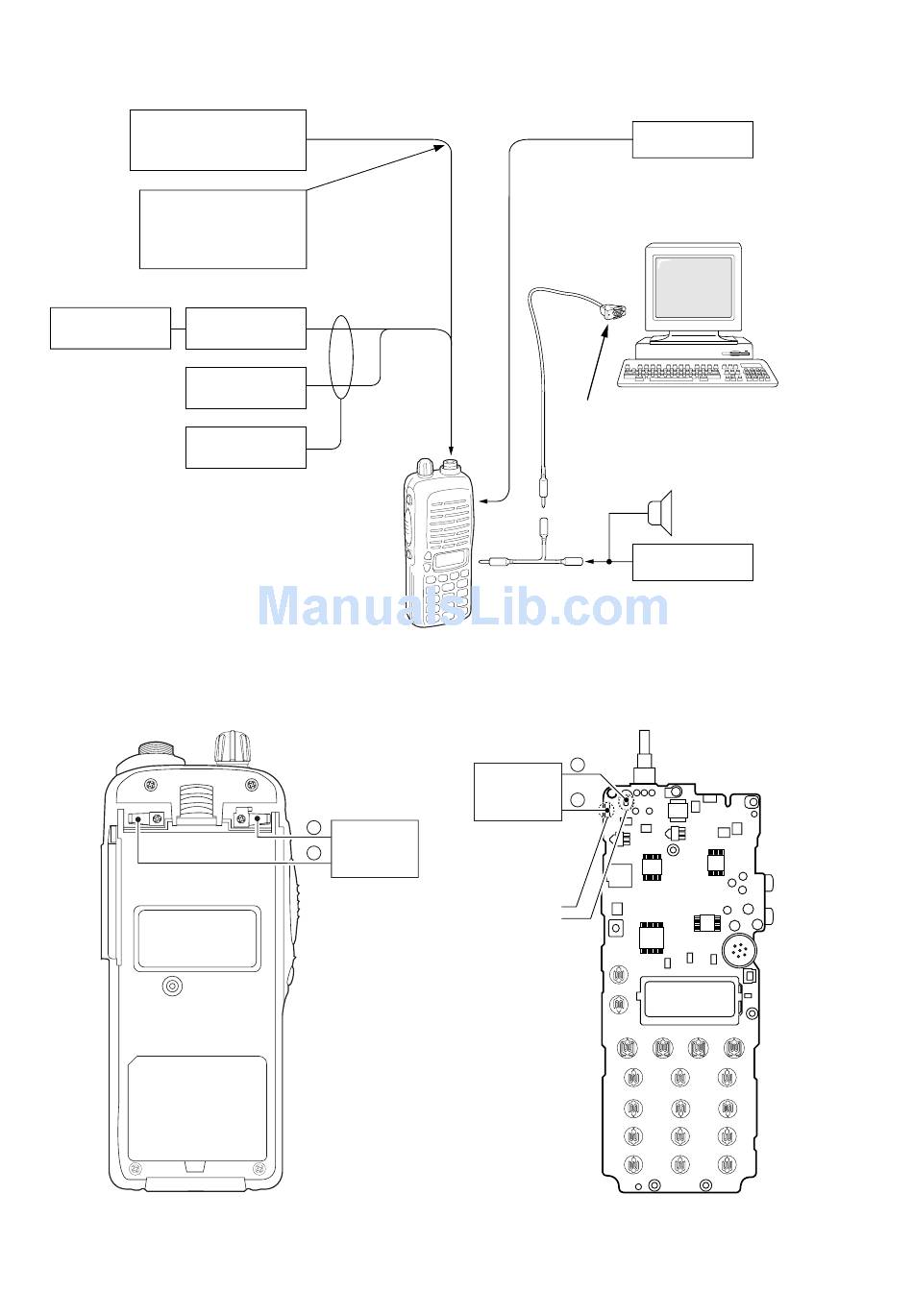

• CONNECTION

Standard signal generator
0.1 µV to 32 mV
(–127 dBm to –17 dBm)
CAUTION:
DO NOT transmit while
SSG is connected to the
antenna connector.
FM
deviation meter

• DC POWER CABLE CONNECTIONS

SOFTWARE ADJUSTMENT

to the antenna connector
Attenuator
40 dB or 50 dB
RF power meter
0.1–10 W/50 Ω
Frequency
counter
+
DC POWER
–
SUPPLY
to [MIC]
to an RS-232C port
OPC-478
DB9 female plug
(incl. level converter circuit)
to [SP]
JIG cable
+
DC POWER
–
SUPPLY
Soldering
DC cable here
5 - 3
Audio generator
Personal
computer
Speaker (8 Ω)
SINAD meter

PLL ADJUSTMENT

Top view
