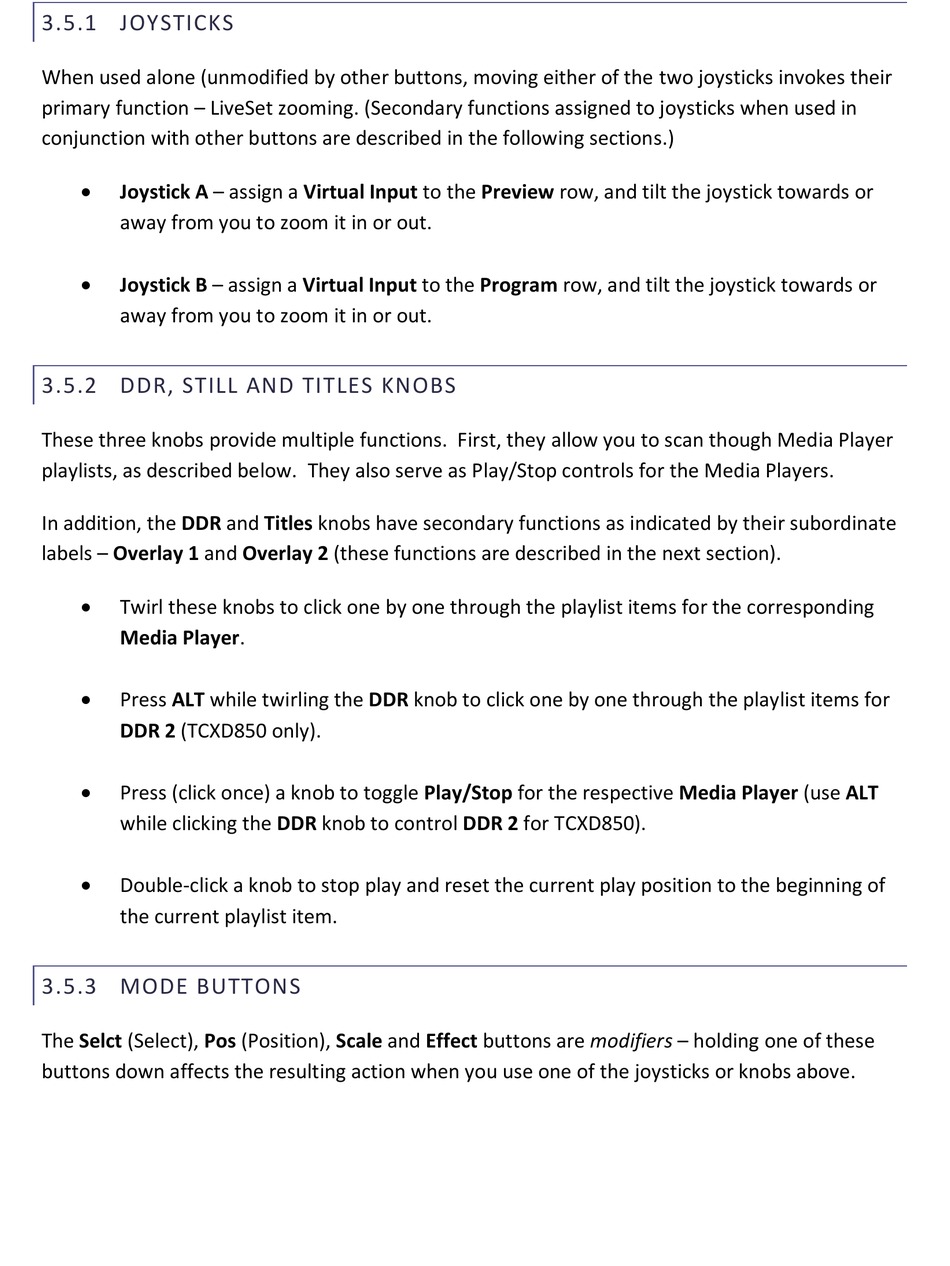

3.5.1 JOYSTICKS

When used alone (unmodified by other buttons, moving either of the two joysticks invokes their
primary function – LiveSet zooming. (Secondary functions assigned to joysticks when used in
conjunction with other buttons are described in the following sections.)

Joystick A – assign a Virtual Input to the Preview row, and tilt the joystick towards or
away from you to zoom it in or out.

Joystick B – assign a Virtual Input to the Program row, and tilt the joystick towards or
away from you to zoom it in or out.

3.5.2 DDR, STILL AND TITLES KNOBS

These three knobs provide multiple functions. First, they allow you to scan though Media Player
playlists, as described below. They also serve as Play/Stop controls for the Media Players.
In addition, the DDR and Titles knobs have secondary functions as indicated by their subordinate
labels – Overlay 1 and Overlay 2 (these functions are described in the next section).

Twirl these knobs to click one by one through the playlist items for the corresponding
Media Player.

Press ALT while twirling the DDR knob to click one by one through the playlist items for
DDR 2 (TCXD850 only).

Press (click once) a knob to toggle Play/Stop for the respective Media Player (use ALT
while clicking the DDR knob to control DDR 2 for TCXD850).

Double-click a knob to stop play and reset the current play position to the beginning of
the current playlist item.

3.5.3 MODE BUTTONS

The Selct (Select), Pos (Position), Scale and Effect buttons are modifiers – holding one of these
buttons down affects the resulting action when you use one of the joysticks or knobs above.
