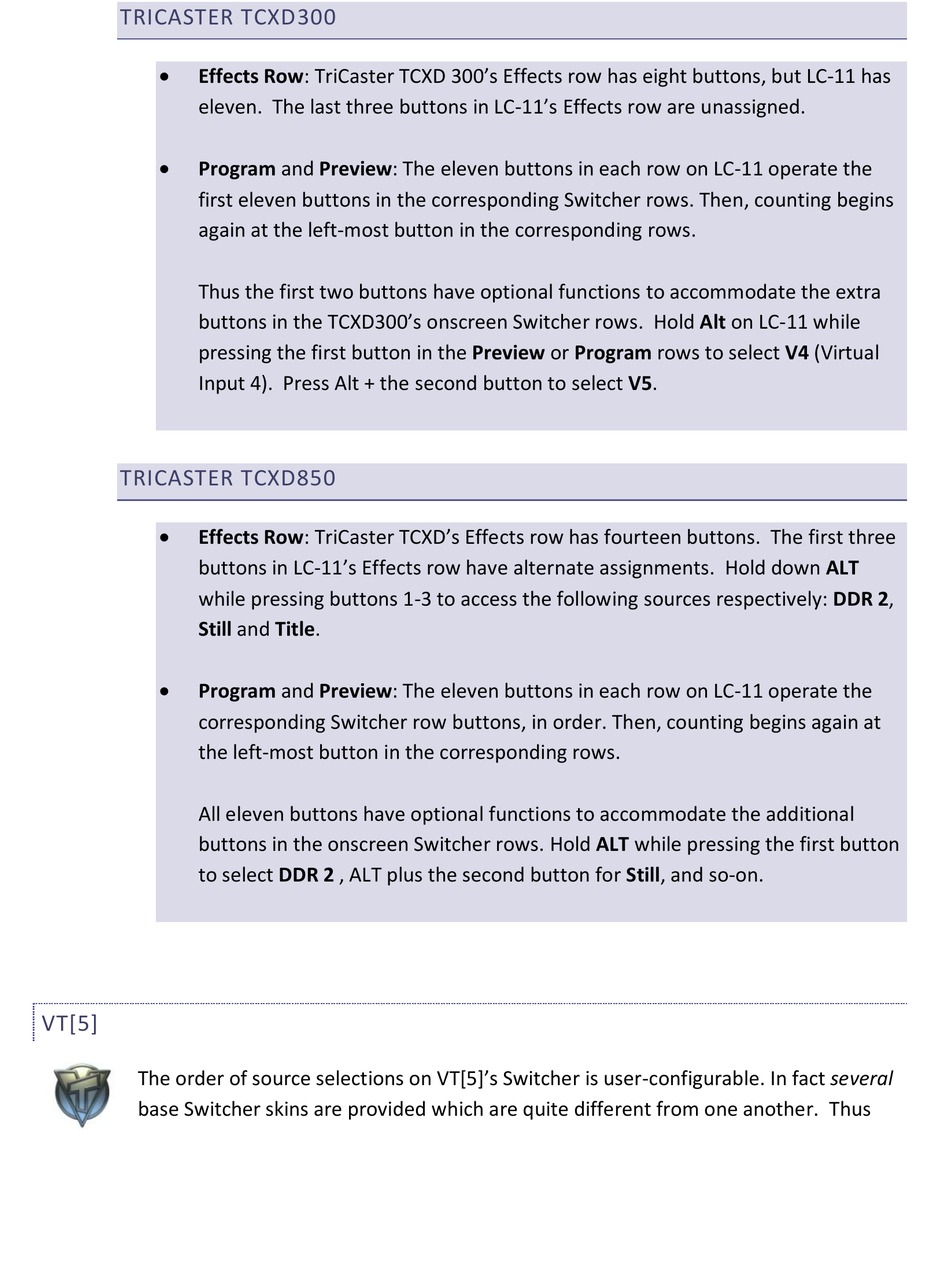

TRICASTER TCXD300

Effects Row: TriCaster TCXD 300's Effects row has eight buttons, but LC-11 has
eleven. The last three buttons in LC-11's Effects row are unassigned.

Program and Preview: The eleven buttons in each row on LC-11 operate the
first eleven buttons in the corresponding Switcher rows. Then, counting begins
again at the left-most button in the corresponding rows.
Thus the first two buttons have optional functions to accommodate the extra
buttons in the TCXD300's onscreen Switcher rows. Hold Alt on LC-11 while
pressing the first button in the Preview or Program rows to select V4 (Virtual
Input 4). Press Alt + the second button to select V5.
TRICASTER TCXD850

Effects Row: TriCaster TCXD's Effects row has fourteen buttons. The first three
buttons in LC-11's Effects row have alternate assignments. Hold down ALT
while pressing buttons 1-3 to access the following sources respectively: DDR 2,
Still and Title.

Program and Preview: The eleven buttons in each row on LC-11 operate the
corresponding Switcher row buttons, in order. Then, counting begins again at
the left-most button in the corresponding rows.
All eleven buttons have optional functions to accommodate the additional
buttons in the onscreen Switcher rows. Hold ALT while pressing the first button
to select DDR 2 , ALT plus the second button for Still, and so-on.
VT[5]
The order of source selections on VT*5+'s Switcher is user-configurable. In fact several
base Switcher skins are provided which are quite different from one another. Thus
