TRICASTER TCXD300 & TCXD850
TCXD models have two downstream Overlay channels. When the Link Overlays
(padlock) button in the Overlay section of the Switcher is enabled, both are affected
(displayed or hidden) by a Fade All or Take All operation. Otherwise, only Overlay 1 is
affected (Overlay 2's display state remains unchanged).
Also noteworthy, Overlay Effects can be independently assigned to either of the
downstream Overlay channels. Fade All will respect the Effects assigned.
3.4 OVERLAY SECTION – TRICASTER (SD) & VT[5]
LC-11's Overlay controls differ quite a bit depending on whether the panel is connected to a
standard (SD-only) TriCaster or VT[5], as opposed to a TriCaster TCXD300 or TCXD850. For that
reason, we'll consider these configurations separately.
First, let's look at the standard configuration. LC-11's Overlay section contains two joysticks,
three knobs, and two rows of buttons.
Please note: TriCaster's Overlay feature corresponds to VT*5+'s Downstream Key (or simply 'DSK')
section. Herein we'll usually use the term Overlay for both systems.

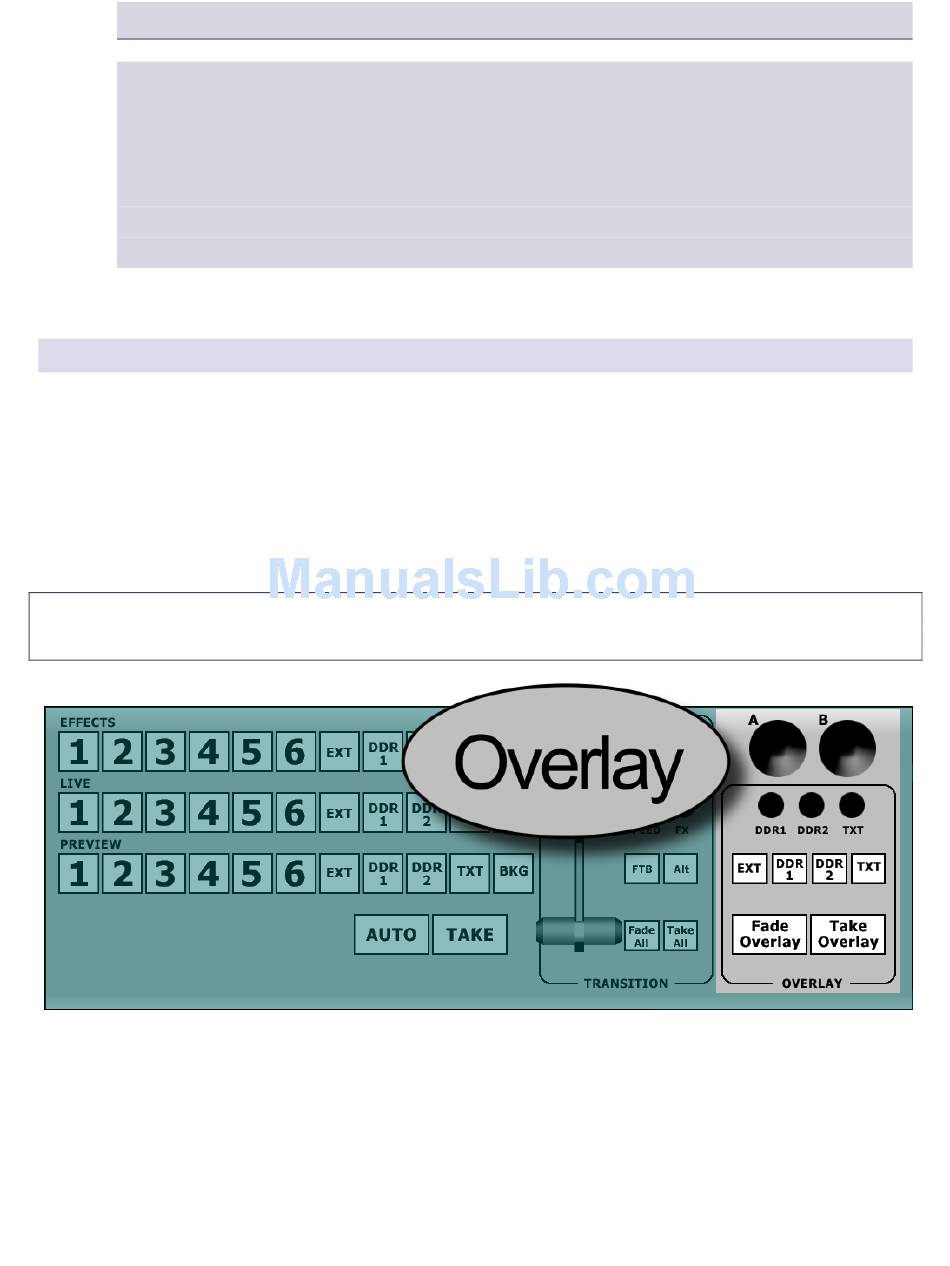

Figure 8 – Overlay Section
