Lectrosonics PDR Quick Start Manual page 3

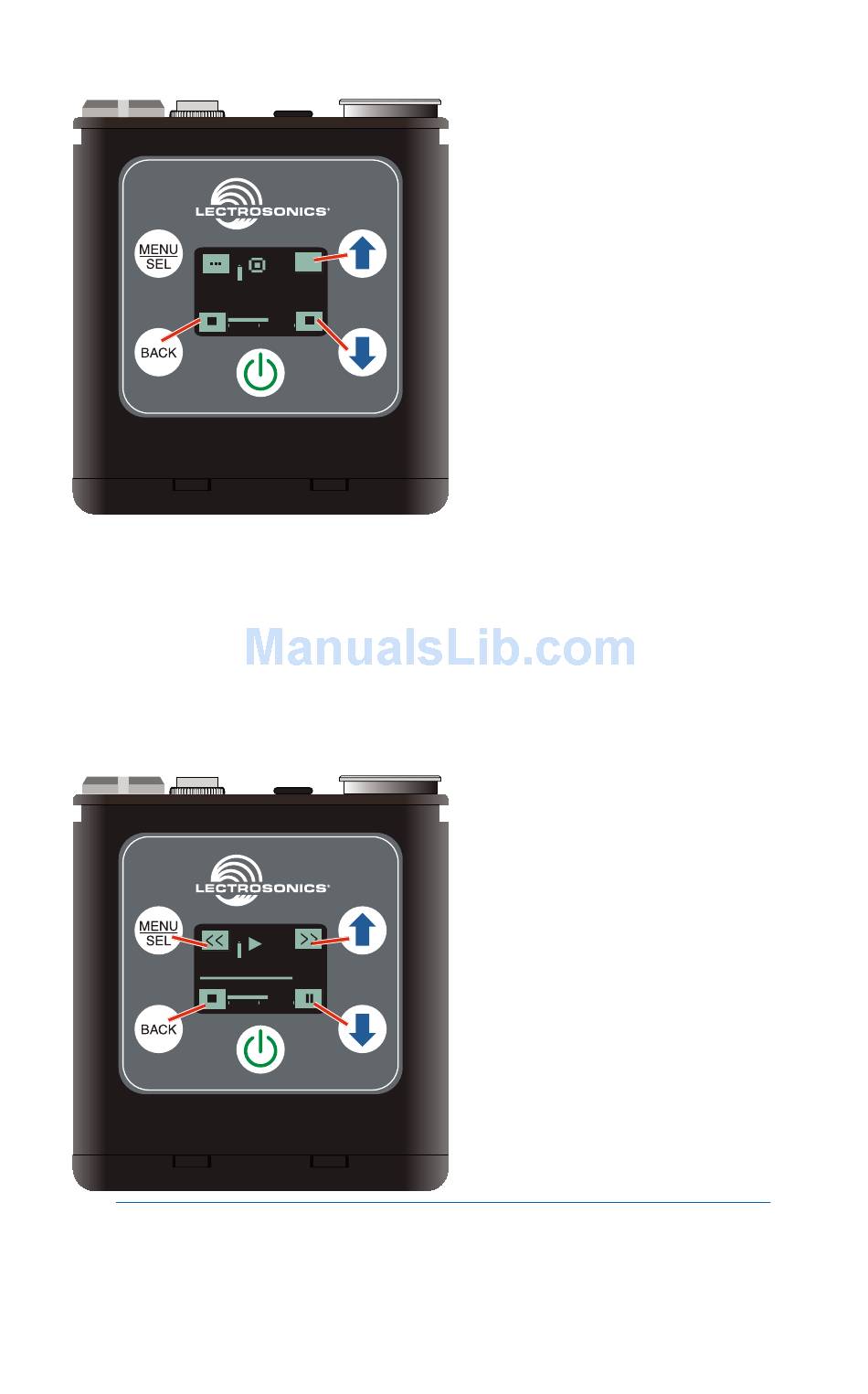

In the Recording Window, the functions of three keypad buttons change to
provide the needed operations during recording.
00 : 01 : 33
T
C
HOLD
In the Playback Windows, the icons on the LCD change to provide the
functions needed during playback. There are three variants of the playback
window:
• active playback
• paused playback in the middle of the recording
• paused playback at the end of the recording
The icons in the corners of the LCD will change depending on the status of
the playback.
00 : 01 : 33
T
C
NOTE: Refer to the Operating Instructions section for details on the
specific button functions and operations in the Main, Recording and
Playback Windows.
www.lectrosonics.com
i
REC
-40 -20 +0
HOLD
-40 -20 +0
3
