Configurations

Setting the address

The Repeater has a unique address that is set with an eight-position DIP switch (SW2). Set the dip switch according to the address assigned in the
panel ES Programmer job. See Adding the Repeater to the ES Programmer
To set the dip switches, complete the following steps:
1. Retrieve the assigned address in the ES Programmer.
2. Use a non marking tool to set the switches to the address.
3. Record the set address.
NOTE: DIP switch position 8 is not used and must be set to OFF.

Battery Disconnect Jumper

Use Jumper J3 to select Low Battery operation. The Jumper operates as follows:
• Jumper in the right position (pins 2-3) causes panel shutdown when the batteries are depleted.
• Jumper in the left position (pins 1-2) enables the panel to continue operating.
For S527 compliance, the Jumper must be installed to the right position of J3.
NOTE: When the Jumper is set to pins 2-3, the Repeater will not power-up from the battery.

Wiring Jumpers

Use Jumpers J1 and J2 to configure the wiring. Set the jumper according to the wiring configuration. Consult the following information when setting the
Jumper:
For local Class B wiring:
Set the Jumper to the Local setting, jumper position 1-2.
For a local Class A* loop:
To create a Class A local loop off of the repeater set the jumper to the Local setting, Jumper position 1-2.
Page 6
on page 17 for more information.
NOT USED
1 THROUGH 4

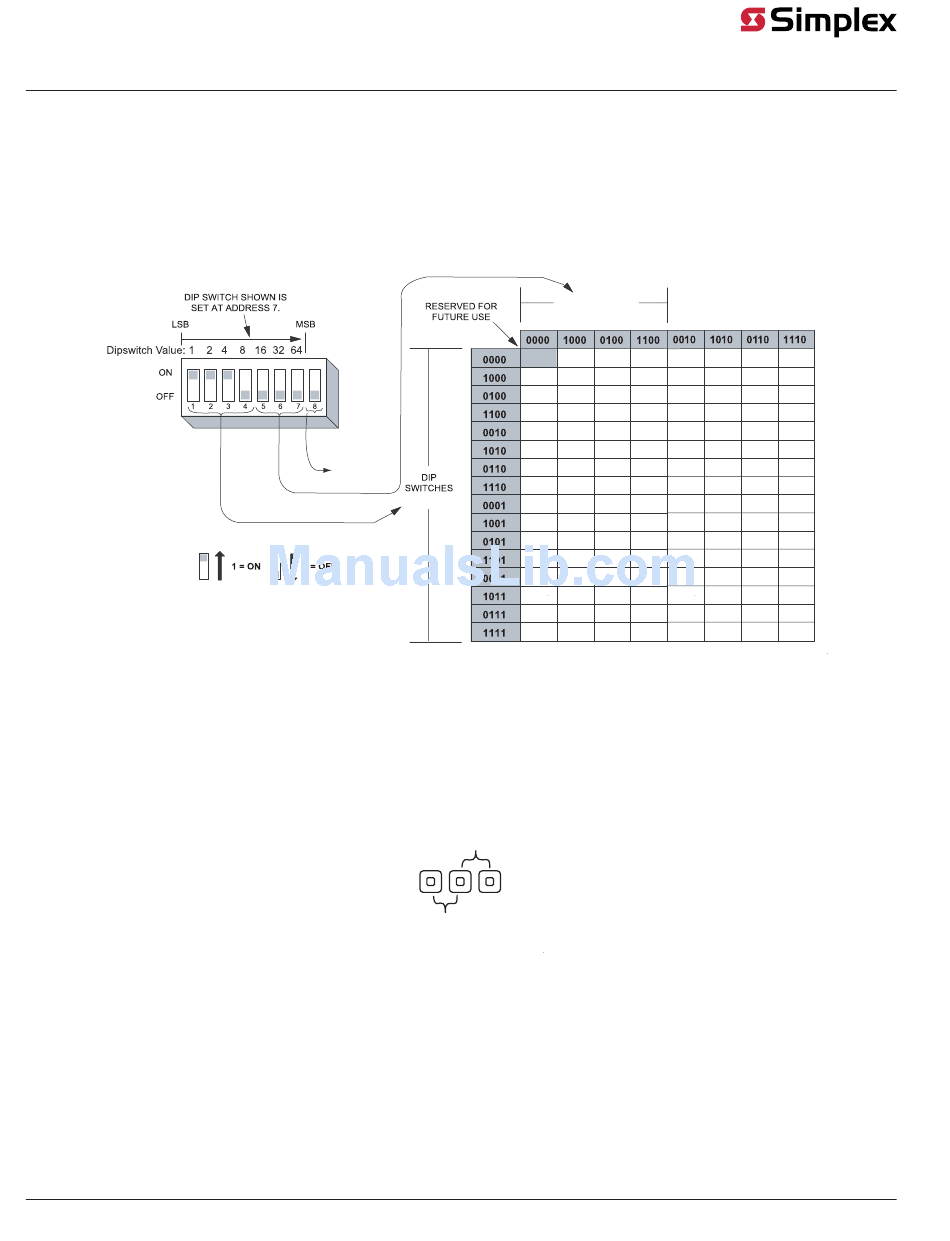

Fig 7: Card addresses
Shut Down
When Depleted
J3
1 2 3
Continue Operation
When Depleted
Fig 8: Battery Disconnect
Jumper positions
4009 IDNAC Repeater Installation Instructions
DIP SWITCHES 5
THROUGH 7
0 16 32 48 64
1 17 33 49 65
2 18 34 50 66
3 19 35 51 67
4 20 36 52 68
5 21 37 53 69
6 22 38 54 70
7 23 39 55
71
8 24 40 56 72
73
9 25 41 57
10 26 42 58 74
11 27 43 59 75
12 28 44 60 76
13 29 45 61 77
14 30 46 62 78
15 31 47 63 79
80 96 112
81 97 113
82 98 114
83 99 115
84 100 116
85 101 117
86 102 118
87 103 119
88 104 120
89 105 121
90 106 122
91 107 123
92 108 124
93 109 125
94 110 126
95 111 127
