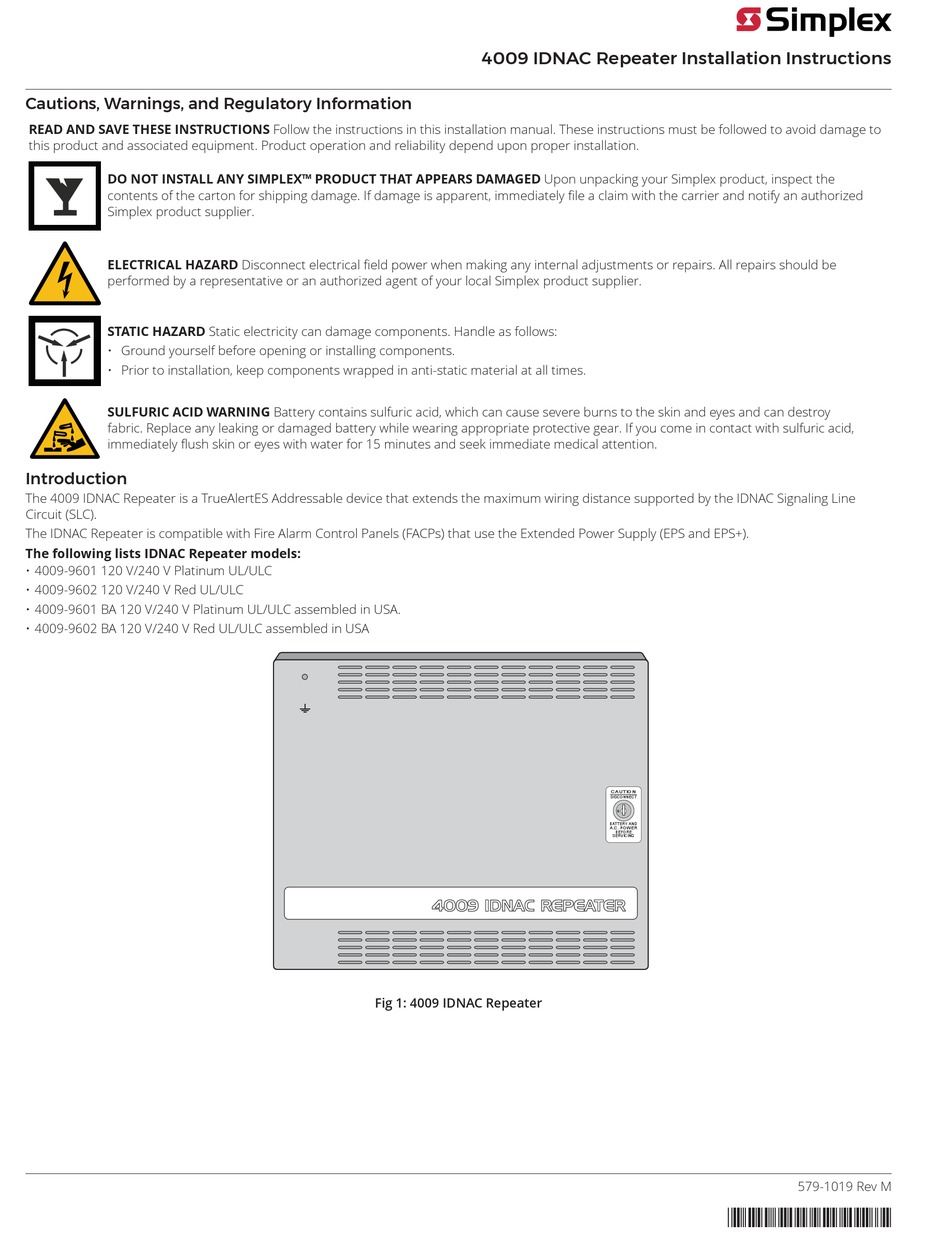

Cautions, Warnings, and Regulatory Information

READ AND SAVE THESE INSTRUCTIONS Follow the instructions in this installation manual. These instructions must be followed to avoid damage to
this product and associated equipment. Product operation and reliability depend upon proper installation.
DO NOT INSTALL ANY SIMPLEX™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Simplex product, inspect the
contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized
Simplex product supplier.
ELECTRICAL HAZARD Disconnect electrical field power when making any internal adjustments or repairs. All repairs should be
performed by a representative or an authorized agent of your local Simplex product supplier.
STATIC HAZARD Static electricity can damage components. Handle as follows:
• Ground yourself before opening or installing components.
• Prior to installation, keep components wrapped in anti-static material at all times.
SULFURIC ACID WARNING Battery contains sulfuric acid, which can cause severe burns to the skin and eyes and can destroy
fabric. Replace any leaking or damaged battery while wearing appropriate protective gear. If you come in contact with sulfuric acid,
immediately flush skin or eyes with water for 15 minutes and seek immediate medical attention.

Introduction

The 4009 IDNAC Repeater is a TrueAlertES Addressable device that extends the maximum wiring distance supported by the IDNAC Signaling Line
Circuit (SLC).
The IDNAC Repeater is compatible with Fire Alarm Control Panels (FACPs) that use the Extended Power Supply (EPS and EPS+).
The following lists IDNAC Repeater models:
• 4009-9601 120 V/240 V Platinum UL/ULC
• 4009-9602 120 V/240 V Red UL/ULC
• 4009-9601 BA 120 V/240 V Platinum UL/ULC assembled in USA.
• 4009-9602 BA 120 V/240 V Red UL/ULC assembled in USA
4009 IDNAC Repeater Installation Instructions

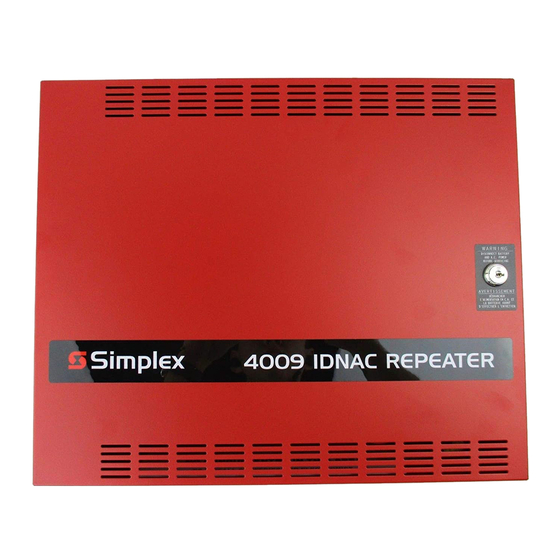

Fig 1: 4009 IDNAC Repeater
CAUTION
DISCONNECT
B
BATTER
Y AND
A.C. POWER
BEFORE
SERVICING
*05791019M*
579-1019 Rev M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4009 and is the answer not in the manual?

Questions and answers

Related Manuals for Simplex 4009

Summary of Contents for Simplex 4009

  • Page 1 15 minutes and seek immediate medical attention. Introduction The 4009 IDNAC Repeater is a TrueAlertES Addressable device that extends the maximum wiring distance supported by the IDNAC Signaling Line Circuit (SLC). The IDNAC Repeater is compatible with Fire Alarm Control Panels (FACPs) that use the Extended Power Supply (EPS and EPS+).
  • Page 2 4009 IDNAC Repeater Installation Instructions Card layout and Specifications Card layout IDNAC IN line IDNAC Out IDNAC In AUX Output termination Jumper IDNAC OUT IDNAC IN AUX OUTPUT Class A SHLD SHLD Adapter Connectors AC POWER TRBL A LEDs TRBL B...

  • Page 3: Mounting The Repeater

    4009 IDNAC Repeater Installation Instructions Mounting The 4009 IDNAC Repeater card arrives pre-installed in a stand-alone cabinet. The cabinet measures W 16.5 inches x H 13.75 inches x D 4.5 inches. It is available in red, and platinum. Preparing the cabinet To prepare the Repeater cabinet for mounting, do the following: 1.
  • Page 4 4009 IDNAC Repeater Installation Instructions Installing the batteries The Repeater cabinet is built to accommodate two 12.7 AH batteries. To safely install the batteries in the Repeater Cabinet using the battery harness, complete the following steps: 1. Place both batteries to the left side on the bottom of the cabinet.
  • Page 5 4009 IDNAC Repeater Installation Instructions Connecting the Repeater to the AC The Repeater connects to the building AC through the AC terminal block located on the lower right of the Repeater. IMPORTANT: Ensure that the Power to the circuit is off before proceeding To connect the repeater to the building AC, complete the following steps: 1.
  • Page 6 4009 IDNAC Repeater Installation Instructions Configurations Setting the address The Repeater has a unique address that is set with an eight-position DIP switch (SW2). Set the dip switch according to the address assigned in the panel ES Programmer job. See Adding the Repeater to the ES Programmer on page 17 for more information.
  • Page 7 4009 IDNAC Repeater Installation Instructions Class A Ext Local Fig 9: Wiring Jumpers For an extended Class A* loop: To make the Repeater part of a Class A loop extending from a DCAI ** set the Jumper to the Class A Ext setting, jumper position 2-3.
  • Page 8 4009 IDNAC Repeater Installation Instructions • Only system wiring can be run together in the same conduit. • Ensure underground wiring is free of all water. Device wiring guidelines Consult the following guidelines for devices before you begin the field wiring: •...
  • Page 9 4009 IDNAC Repeater Installation Instructions Table 2: UTP wiring limit based on alarm current 2.000 132 ft 210 ft 334 ft 531 ft 845 ft 2.250 118 ft 187 ft 297 ft 472 ft 751 ft 2.500 106 ft 168 ft...
  • Page 10 4009 IDNAC Repeater Installation Instructions Table 5: UTP wiring limit for speaker and S/V devices based on communication Distance to the last appliance Devices 20 AWG 18 AWG 16 AWG 14 AWG 12 AWG 1218 ft 1936 ft 3079 ft...
  • Page 11 4009 IDNAC Repeater Installation Instructions Connecting Local Class B wired appliances To connect the Repeater to the EPS or to an appliance using local Class B wiring, complete the following steps: 1. Route the wire from the + and the - outputs to the Repeater IDNAC IN terminal block.
  • Page 12 4009 IDNAC Repeater Installation Instructions Testing and Troubleshooting Extended Class A Loop wiring One Repeater can be wired as part of an extended Class A Loop* Mode Configuration. NOTE: To achieve this, a 4100-6103 Dual Class A Isolator (DCAI) must be part of the EPS configuration, see document 579-1029 for more information.
  • Page 13 • Install batteries within six months of the date of their manufacture. Additional battery information is as follows: • The 4009 Repeater battery charger is temperature compensated according to battery manufacturer recommendations. There is no charger voltage adjustment. • The battery voltage fluctuates with temperature variations. At normal room temperature the battery voltage should be 27-27.6 V when the battery set is fully charged.
  • Page 14 4009 IDNAC Repeater Installation Instructions Replaceable Devices Consult the table below for a list of replaceable devices. Table 8: Replaceable devices Replacement part Part Replacement notes number The battery fuse is a fast acting, 8 A, 32 V fuse and is located in the positive lead of the battery...
  • Page 15 4009 IDNAC Repeater Installation Instructions LED Trouble indicator overview The IDNAC Repeater is equipped with six indicator LEDs. There are four LED trouble indicators, one AC Power LED and one COMM LED. The code produced by the LEDs corresponds to a trouble that is occurring on the FACP system. See Figure 16: System Trouble LED Codes on page 16for the Trouble LED codes.
  • Page 16 4009 IDNAC Repeater Installation Instructions System Trouble LED codes System troubles are indicated by LEDs A to D. Fig 16: System Trouble LED Codes Programming Trouble messages on the 4100ES The table below explains the Repeater trouble messages that appear on the FACP display.

  • Page 17: Compatible Devices

    4009 IDNAC Repeater Installation Instructions Compatible devices Software requirements In order to properly program the Repeater the computer must use ES Panel FACP System Firmware version 1.04 or later. Consult the ES Panel Programmer’s Manual (574-849) for more information. Adding the Repeater to the ES Programmer The Repeater is programmed through the EPS Point Editing tab.
  • Page 18 4009 IDNAC Repeater Installation Instructions Compatible devices The following appliances are compatible with the 4009 IDNAC Repeater: Table 10: Compatible addressable appliances TrueAlert ES appliances TrueAlert appliances Addressable appliance description Model numbers Model numbers 49AO-WWS-BA 49AO-WRF 49MT-WRS-BA 49AO-APPLC-BA 49AO-WRF-BA 49MT-WWS-BA...
  • Page 19 4009 IDNAC Repeater Installation Instructions Table 10: Compatible addressable appliances TrueAlert ES appliances TrueAlert appliances Addressable appliance description Model numbers Model numbers 59AV-WRF 59AV-WRFAB 59AV-WRF-BA 59AV-WRFAB-BA 59AV-APPLWR LED Audible/Visible Wall- Mount 59AV-WWF 59AV-WWFAB 59AV-APPLWW 59AV-WWF-BA 59AV-WWFAB-BA 59AV-WRFH 59AV-WRFABH-BA 59AV-APPLWRH LED Audible/Visible Wall-...
  • Page 20 Additional listings may be applicable, contact your local Simplex® product supplier for the latest status. Listings and approvals under Simplex Time Recorder Co. Simplex, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited. NFPA 72 and National Fire Alarm Code are registered trademarks of the National Fire Protection Association (NFPA).
