Connecting the Repeater to the AC

The Repeater connects to the building AC through the AC terminal block located on the lower right of the Repeater.
IMPORTANT: Ensure that the Power to the circuit is off before proceeding
To connect the repeater to the building AC, complete the following steps:
1. Loosen the screws securing the AC cover.
2. Slide off the cover.
3. Bring the AC wiring in through the conduit entrance on the lower right side of the Repeater cabinet.
4. Connect building AC to the terminal block. The ground wire can be secured under the AC cover screws.
5. Place the AC cover back over the terminal block and tighten the screws.
NOTE: Wire the Non-Power-Limited wiring only in the shaded areas. This includes AC input and battery connections. All other wiring is Power-
Limited. Maintain at least ¼-inch spacing between all Power-Limited and Non-Power-Limited wiring.
Page 5
1
2

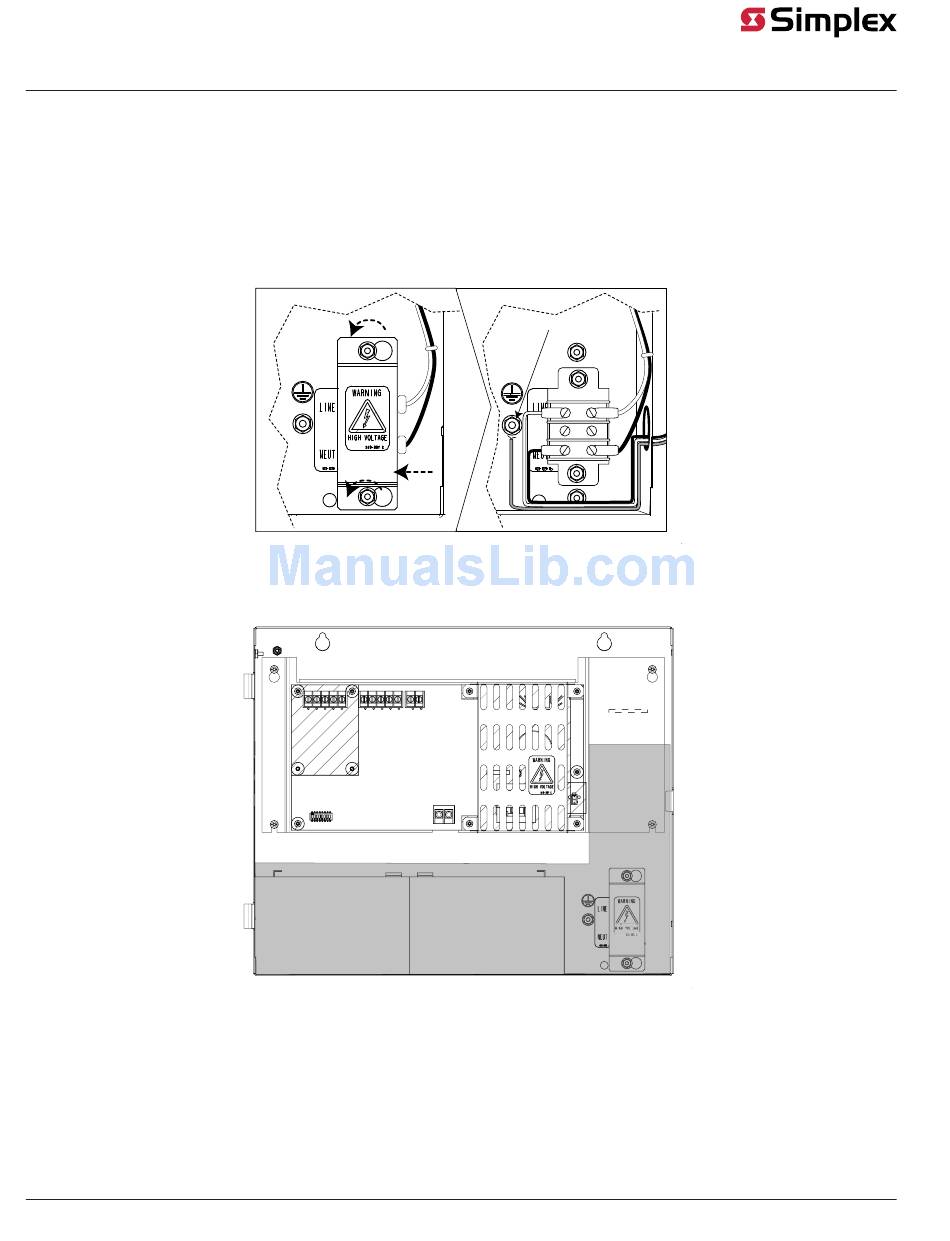

Fig 5: Connecting the Repeater to the AC
Fig 6: Non-Power-Limited Zone
4009 IDNAC Repeater Installation Instructions
Ground
579-1019 Rev M
