Card layout and Specifications

Card layout
Class A
Adapter
Connectors
LEDs
Trouble
Scroll
Switch
Card specifications
32°F - 120°F (0°C-49°C)
Operating conditions
Up to 93% relative humidity at 90°F (32°C), non-condensing
AC Input specifications
DC Input specifications
(battery standby)
IDNAC Input specification
Electrical specifications
IDNAC Output specification
Aux Output specification
Earth fault
Earth fault detection is 10 k minimum to any circuit
Charges up to 25 Ah sealed lead-acid batteries connected to the power supply
Internal battery charger
High Voltage Internal battery charger Output: 27.6 V
Output Current Limit: 1.3 A
Page 2
IDNAC Out IDNAC In
IDNAC OUT IDNAC IN
- -
+ + + +
SHLD SHLD
TB1
TB2
AC POWER
TRBL A
TRBL B
TRBL C
TRBL D
COMM
1 2 3 4 5 6 7 8
Address Low Battery
Block Disconnect
Jumper

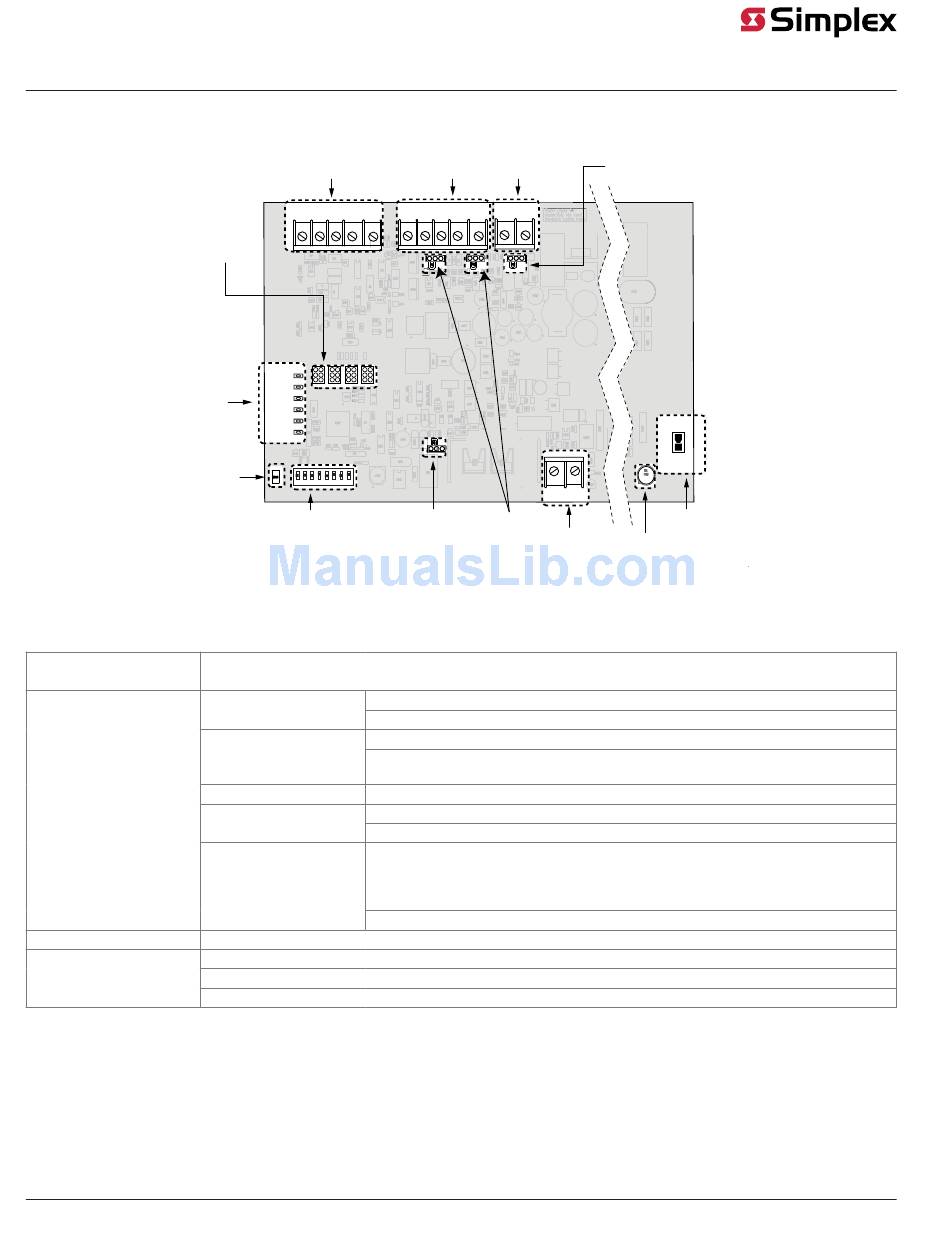

Fig 2: Card Layout
Table 1: Card specifications
120 V, 50/60 HZ, 2.5 A
240 V, 50 HZ, 1.25 A
Standby: 70 mA plus 0.8 mA for an IDNAC device plus Aux Output current
Alarm: 96 mA plus 1.37XSLC Load Current plus 1.37 X Aux Output Current. (4.5A maximum
with 3A IDNAC SLC load and 200mA Aux Output load)
1 address, 4 unit loads
Voltage: 29 V special application
Power: 3 A max.
Voltage: 29V DC Nominal with AC present or when powered from batteries with system
in Alarm or 24 V DC nominal when powered from batteries with system in Standby
mode. Special Application. Aux Loads include 4603-9101 Annunciator, 4100-96xx series
Annunciators, and 4090 series of IDNet ZAMs and IAMs
Power: 0.2 A max. @ 29 V
4009 IDNAC Repeater Installation Instructions
IDNAC IN line
AUX Output
termination Jumper
AUX OUTPUT
- - -
+
-
+
BATTERY INPUT
Wiring
Battery
Mode
Fuse
Input
Jumpers
J4
AC Connector
579-1019 Rev M
