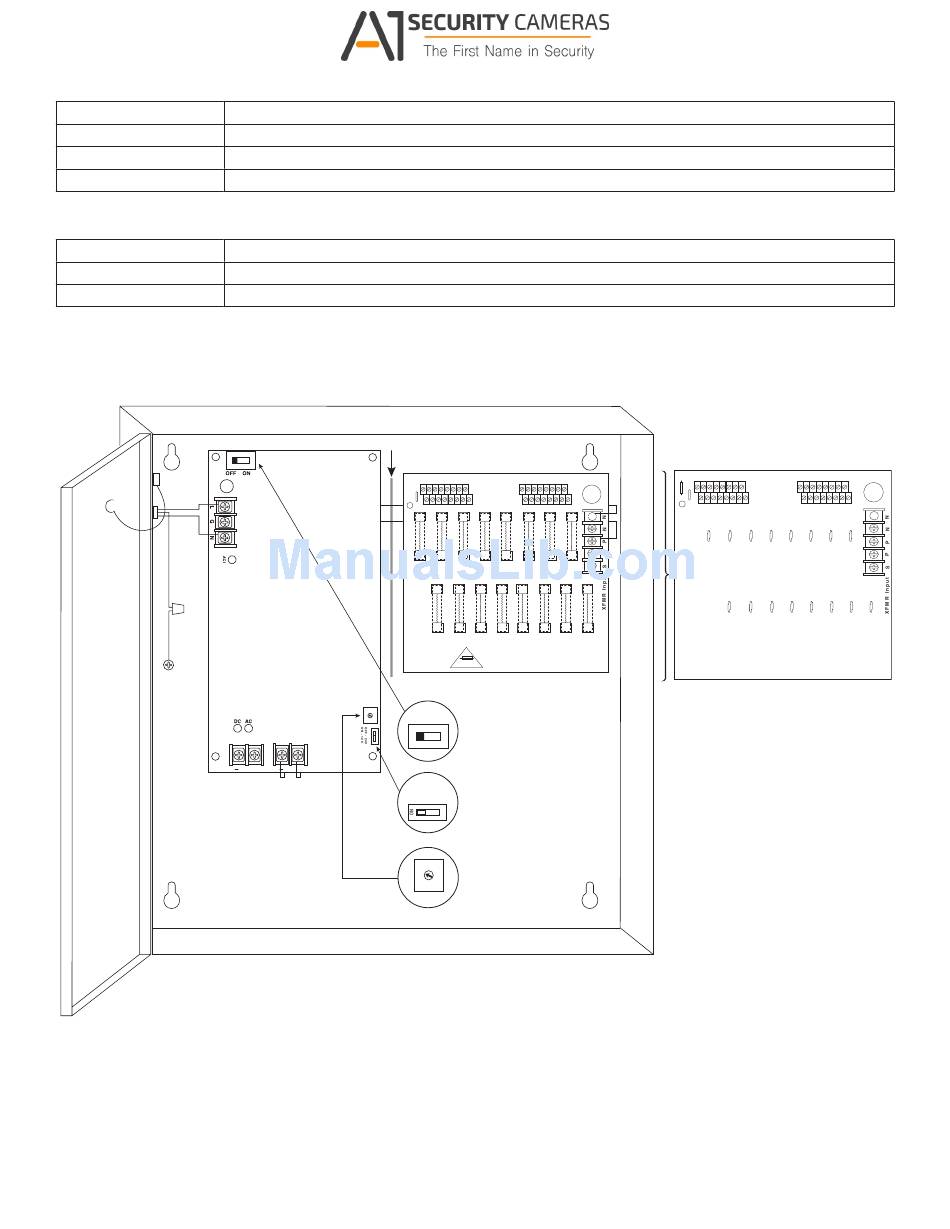

Altronix ALTV1224DC Installation Manual page 4

OLS127 - Power Supply
Terminal Legend Function/Description
L, N 115VAC power mains connection.
– DC + 12VDC or 24VDC @ 4A total continuous output.
– BAT + Stand-by battery connections. Maximum charge rate 0.5A.
PD16W/PD16WCB - Power Distribution Module
Terminal Legend Function/Description
1P - 16P Positive DC power outputs.
1N - 16N Negative DC power outputs.
Fig. 2
CAUTION: De-energize unit prior to servicing. For continued protection against
fire hazard replace fuse with the same type and rating. Do not expose unit to rain or moisture.
Door
Wire Strap
(from
Enclosure
to Door)
Green
Flying
Lead
- 4 -
ALTV1224DC1/CB Terminal Identification:
Divider
115VAC
power
mains
OFF
ON
OFF - 24V
ON - 12V
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
common
outputs N
protected
P
outputs
For continuous protection against risk of fire
replace fuses with same type and rating.
3.5A 250V
Switch disables power mains
ON
line voltage input.
If stand-by battery (batteries) are
connected the DC output remains on.
SW1
24VDC output - OFF
12VDC output - ON
Trimpot
Adjusts output voltage
on power supply
Used on PTC Models
(example: ALTV1224DC1CB)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
common
N
outputs
protected
P
outputs
ALTV1224DC series
