RAB Lighting VXLED13DG Installation Instructions

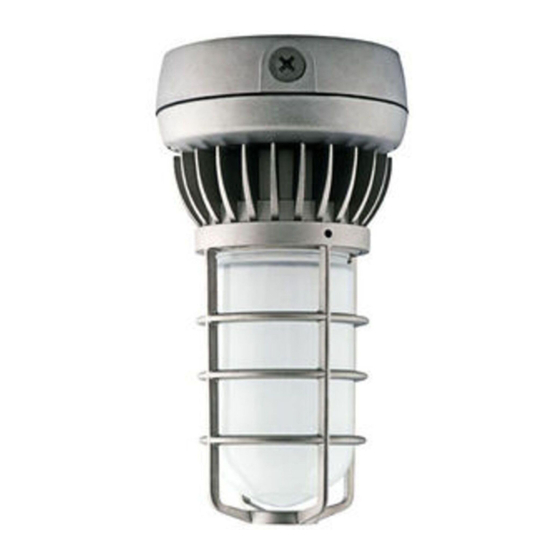

VXLED13DG INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fi xtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments. Call
the Marketing Department at 888-RAB-1000, or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
RAB fi xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED.
Make certain power is OFF before installing or maintaining fi xture. No user serviceable
WARNING:
parts inside.

CEILING MOUNT

Fixture must be ceiling mounted. Use a recessed or
surface mount junction box (not supplied) or use the
Housing to make electrical connections. Fixture cannot
be mounted upside down in wet locations!

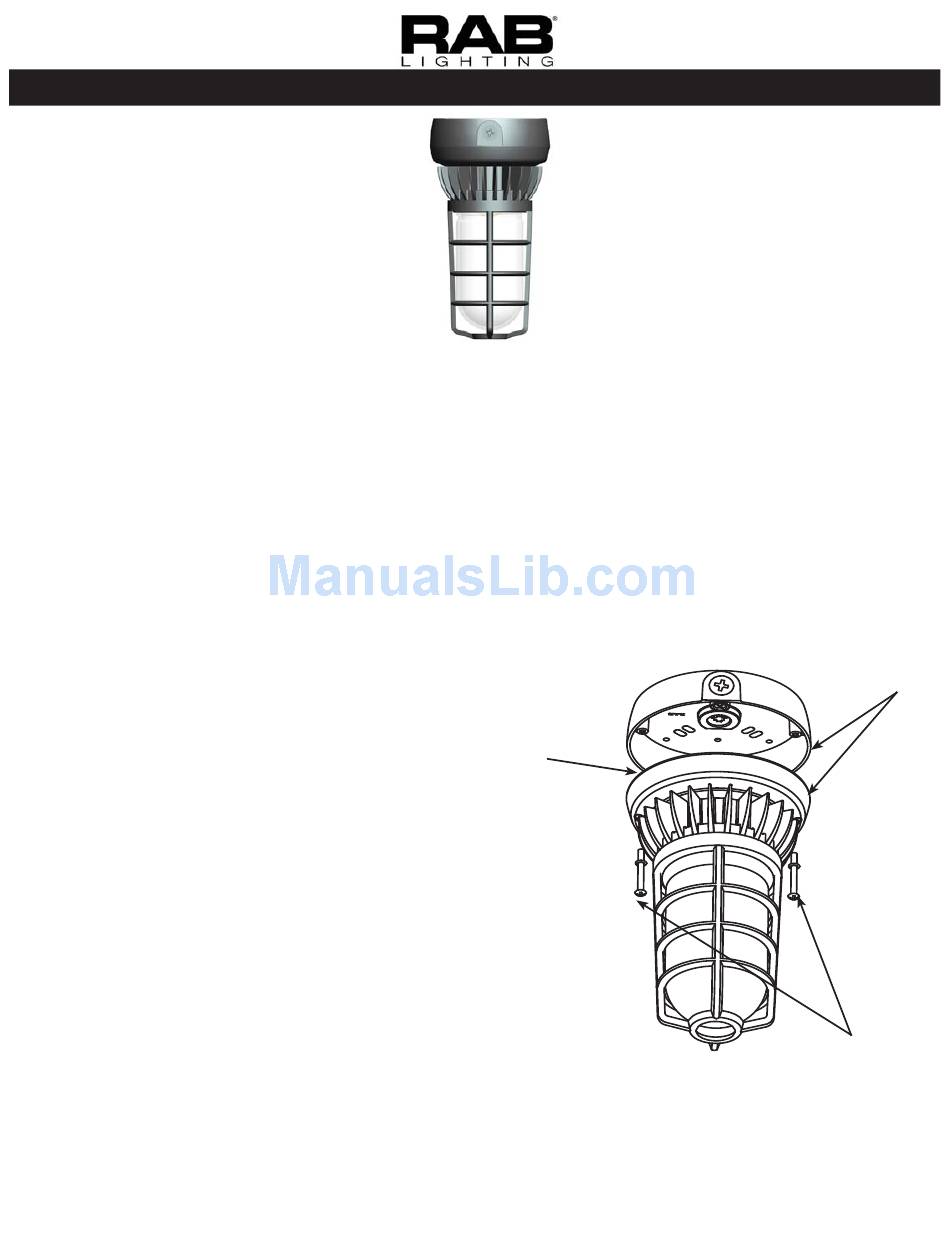

1. Loosen Housing Screws and open Housing.
2. Prepare back of Housing to use by knocking out
necessary mounting holes.
3. Seal all gaps between ceiling and fi xture with
weatherproof silicone sealant.
4. Fixture may be wired through back conduit entrance
or side conduit entrance for surface mounting.
5. Connect wires as shown in wiring section.
6. Close Housing. Tighten screws and check Housing
Gasket seal.
7. Seal all holes, plugs and conduit entrances with
weatherproof silicone sealant.
Housing
Gasket
Pat. Pending
Note: These instructions do not cover all details or variations
in equipment nor do they provide for every possible situation
during installation, operation or maintenance.
.
Housing
Housing
Screws
