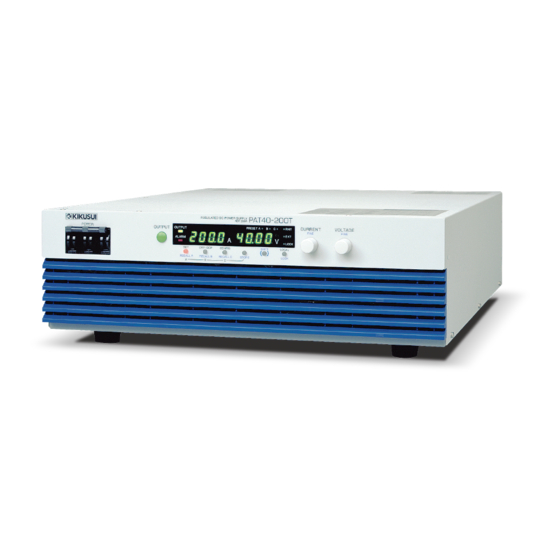

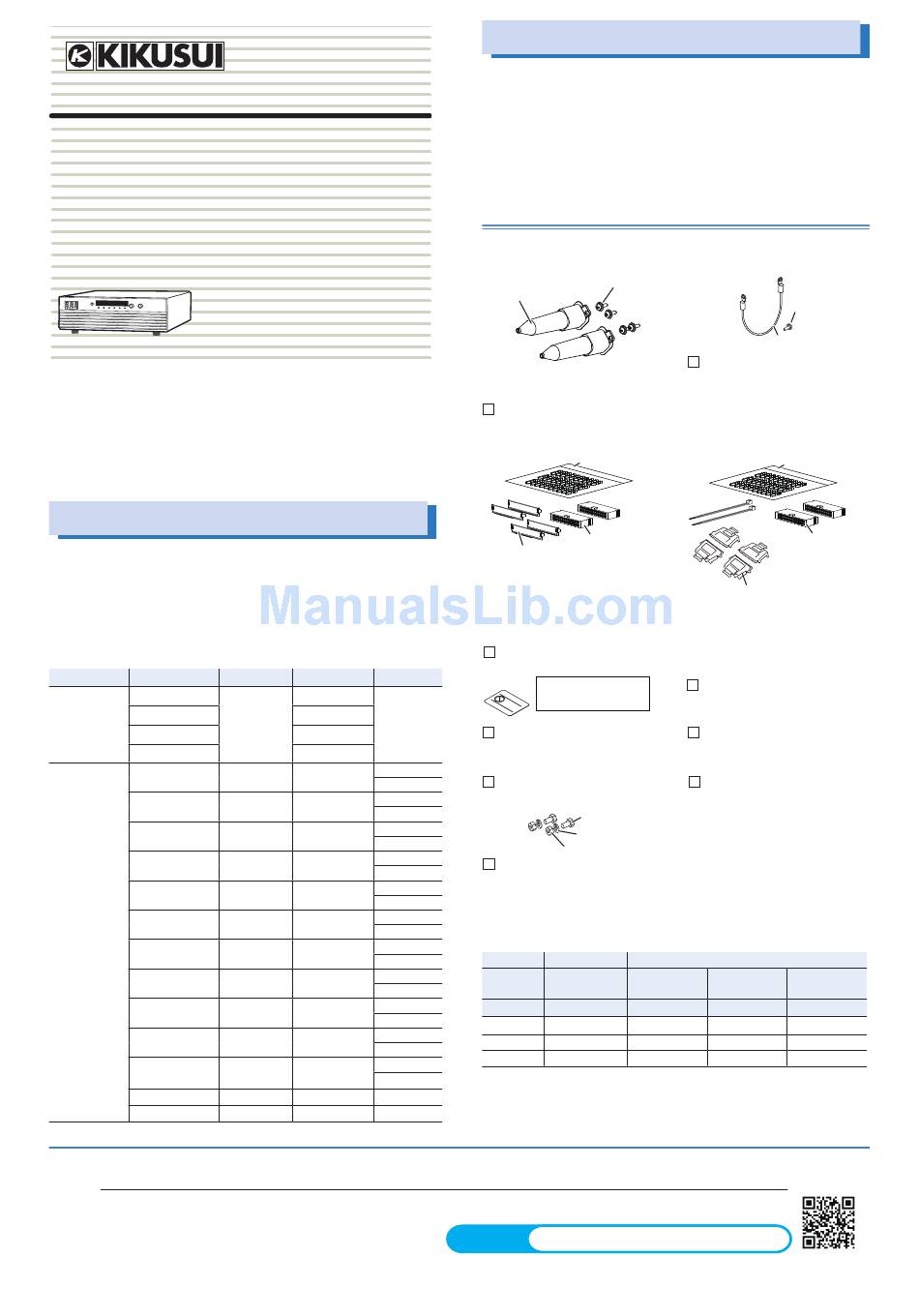

Kikusui PAT20-200T Setup Manual

Setup Guide
Regulated DC Power Supply PAT-T series
4kW type 8kW type
PAT20-200T PAT20-400T
PAT30-266T
PAT40-100T
PAT40-200T
PAT60-67T
PAT60-133T
PAT160-25T
PAT80-100T
PAT160-50T
8kW type (Custom model)
PAT1000-8T
PAT1500-5.3T
Thank you for purchasing the PAT-T Series Regulated DC Power
Supply.
The PAT-T Series is a low-noise, highly efficient Constant
Voltage (CV)/ Constant Current (CC) automatic crossover
power supply that employs a software switching system.
PAT-T Series models
The PAT-T Series consists of the 4 kW type and 8 kW type. On
the 4 kW type, you can select the input mode: single-phase
input or three-phase input. The 8 kW type is three-phase input.
The 8 kW type consists of the 200 V input model and 400 V
input model (200 V input only for the PAT1000-8T/PAT1500-
5.3T).
Output power Model Input mode Rated voltage Input rating
4 kW type PAT20-200T Single-
phase/
PAT40-100T
three-phase
PAT60-67T
selectable
PAT160-25T
8 kW type PAT20-400T Three-phase 20 V
PAT30-266T Three-phase 30 V
PAT40-200T Three-phase 40 V
PAT60-133T Three-phase 60 V
PAT80-100T Three-phase 80 V
PAT160-50T Three-phase 160 V
PAT250-32T Three-phase 250 V
PAT350-22.8T Three-phase 350 V
PAT500-16T Three-phase 500 V
PAT650-12.3T Three-phase 650 V
PAT850-9.4T Three-phase 850 V
PAT1000-8T Three-phase 1000 V
PAT1500-5.3T Three-phase 1500 V
KIKUSUI ELECTRONICS CORP.
1-1-3 Higashiyamata, Tsuzuki-ku, Yokohama,
224-0023, Japan
Tel: +81-45-482-6563
The newest version of the operation manual can be downloaded from Download service of Kikusui website.
PAT-T series
PART NO. Z1-005-610, IB025035
Feb. 2018
PAT250-32T
PAT350-22.8T
PAT500-16T
PAT650-12.3T
PAT850-9.4T
(SPEC21163)
(SPEC21164)
20 V 200 V
40 V
60 V
160 V
200 V
400 V
200 V
400 V
200 V
400 V
200 V
400 V
200 V
400 V
200 V
400 V
200 V
400 V
200 V
400 V
200 V
400 V
200 V
400 V
200 V
400 V
200 V
200 V
Fax: +81-45-482-6261

Checking the Package Contents

When you receive the product, check that all accessories are
included and that the accessories have not been damaged
during transportation. If any of the accessories are damaged
or missing, contact your Kikusui agent or distributor. We
recommend that you save all packing materials, in case the
product needs to be transported at a later date.
Accessory
● 4 kW type/ 8 kW type
OUTPUT terminal
[M3-112-059]
cover [Q1-500-106]
Model of rated output
20 V to 850 V (2 sets)
OUTPUT terminal cover set
Pins 30 pcs.
[84-49-0100]
Socket 2 pcs.
Protection cover
[84-49-0160]
2 sets [84-49-0161]
Model of rated output
20 V to 850 V
J1/J2 connector kit
If necessary, attach to
the product.
Heavy object warning label
(1 pc.) [A8-900-153]
Setup Guide (1pc.)
[1]
[2]
x 2
[3]
Output terminal bolt set (2 sets)
* Not included with the PAT1000-8T/PAT1500-5.3T
4 kW type 8 kW type
Rated 20 V to 160 V 20 V, 30 V
voltage
Size M10 set M12 set
[1] M1-100-019 M1-100-027
[2] M5-101-008 M5-101-009
[3] M4-100-008 M4-100-009
http://www.kikusui.co.jp/en
Website
[M3-112-027]
[91-80-6940]
Chassis connection wire set
(1 set)
* Chassis connection wire only
for the PAT1000-8T/PAT1500-5.3T
Pins 30 pcs.
[84-49-0100]
Socket 2 pcs.
[84-49-0160]
Protection cover 2 sets [84-49-0140]
Model of rated output
1000 V, 1500V
CD-ROM (1 pc.)
Safety information (1pc.)
Quick Reference
( )
Japanese: 1pc.,English: 1pc.
40 V to 160 V 250 V to 850 V
M10 set M8 set
M1-100-019 M1-100-013
M5-101-008 M5-101-007
M4-100-008 M4-100-007
