NETGEAR Desktop Pro Series GS110MX Installation

Installation
8-Port Gigabit Ethernet Unmanaged Switch
with 2-Port 10G/Multi-Gig Uplinks
Desktop Pro Series GS110MX

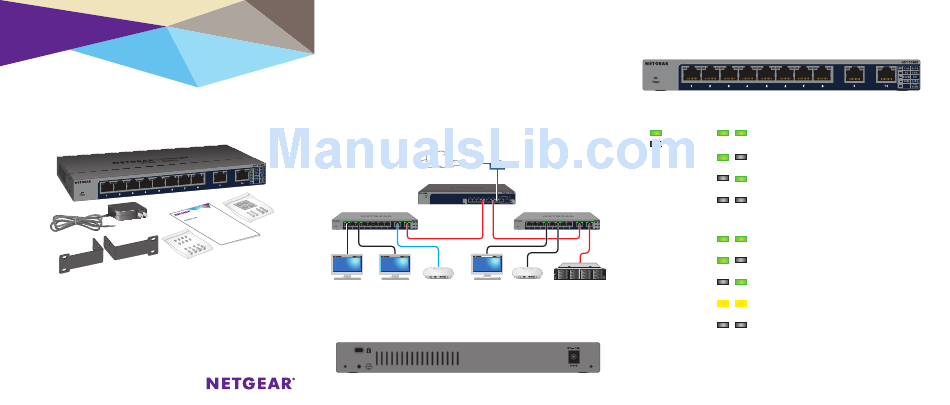

Package Contents
• Switch
• Power adapter (localized to the country of sale)
• Rack-mount brackets and screws for rack installation
• Wall-mount screws for wall installation and rubber feet for desktop
installation (in one bag)
• Installation guide
Connect Devices to the Switch
1. Connect devices to the RJ-45 network ports on the switch front panel.
Ports 1 through 8 support 1G, 100M, and 10M. Ports 9 and 10
support 10G, 5G, 2.5G, 1G, and 100M. Use the cables that we
recommend on the other side of this installation guide.
2. Connect one RJ-45 port on the switch to a network. In a high-speed
network, use port 9 or 10.
Note: In a small office or home office network, connect the switch to the LAN
port of a router that, in turn, is connected to an Internet modem.
Sample connections
Internet 10G link to
network router
10G/Multi-Gig switch (XS508M)
GS110MX switch
10G link 10G link
1G link to 1G link to 2.5G link to 1G link to 1G link to
computer computer WAC740 AP computer WAC740 AP
Connect the Power Adapter to the DC
Check the LED Status
Power LED Gigabit Ethernet port LEDs for ports 1 through 8
On
Off
GS110MX switch
Multi-Gigabit Ethernet port LEDs for ports 9 and 10
10G link
to 10G NAS
Input
1G link (both port LEDs on). Both port LEDs blinking
indicates traffic activity.
100M link (left port LED on, right port LED off). Left
port LED blinking indicates traffic activity.
10M link (left port LED off, right port LED on). Right
port LED blinking indicates traffic activity.
No link (both port LEDs off).
10G link (both port LEDs on). Both port LEDs blinking
indicates traffic activity.
5G link (left port LED on, right port LED off). Left port
LED blinking indicates traffic activity.
2.5G link (left port LED off, right port LED on). Right
port LED blinking indicates traffic activity.
1G or 100M link (both port LEDs on). Both port LEDs
blinking indicates traffic activity.
No link (both port LEDs off).
